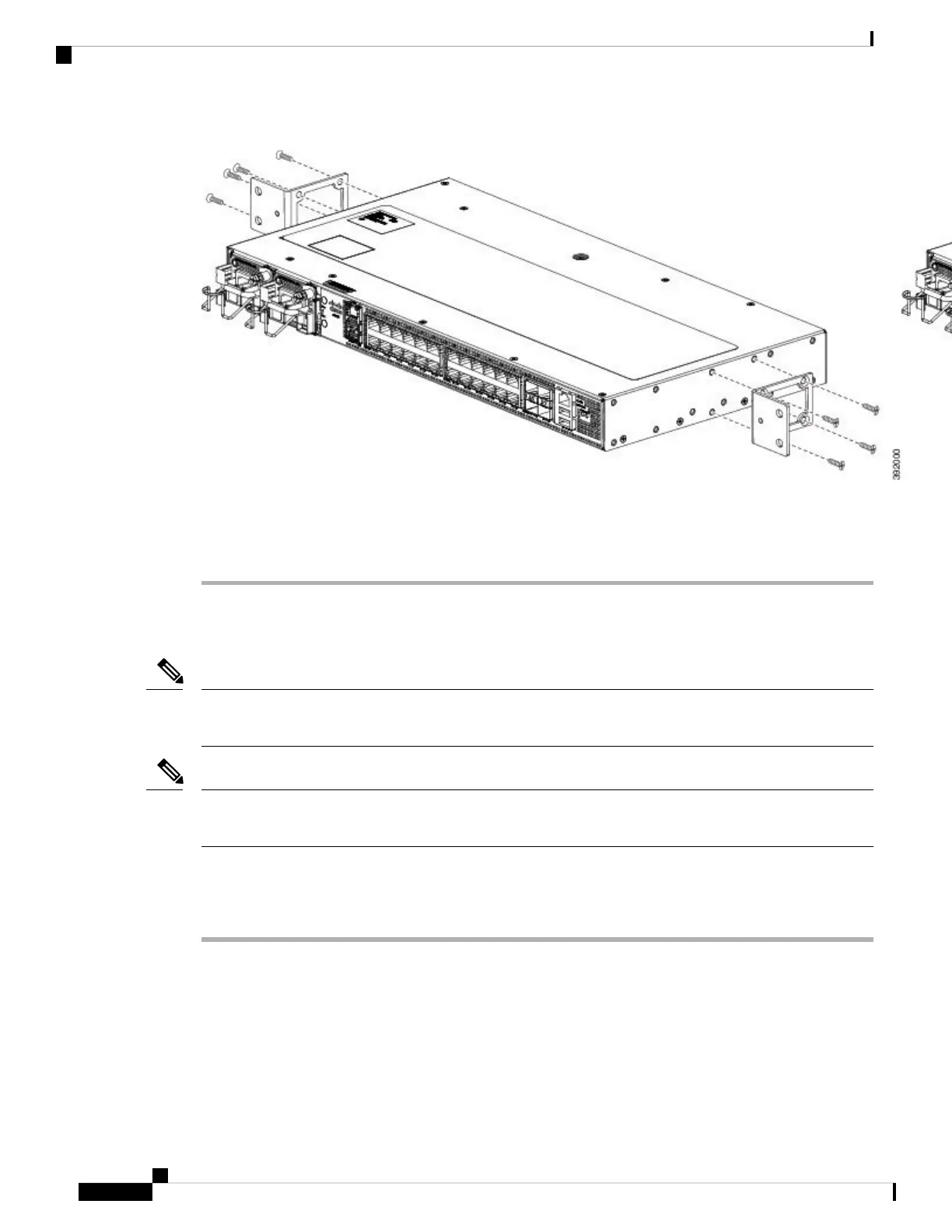

Step 3 Secure the bracket to the chassis with the screws removed when performing Step 1. The recommended
maximum torque is 10 in.-lb.
Step 4 Repeat Step 3 for the other bracket.
Installing the Router Chassis in the Rack
Ensure adequate air flow when mounting the router in a rack. For more information, see the Air Flow Guidelines
section.
Note
Install the cable guides before installing the router in a 19-inch EIA rack. See Attaching the Cable Guides
section.
Note
To install the router chassis in the equipment rack, perform these steps:
Procedure
Step 1 Position the chassis in the rack as follows:
• If the front of the chassis (front panel) is at the front of the rack, insert the rear of the chassis between
the mounting posts.
• If the rear of the chassis is at the front of the rack, insert the front of the chassis between the mounting
posts.
Installing the Router
8
Installing the Router
Installing the Router Chassis in the Rack
