Cisco ATA 191 Quick Start Guide

Cisco ATA 191 Hardware
The ATA 191 and ATA 192 are compact, easy to install devices.
The unit provides these connectors:
• 5V DC power connector.
• Two RJ-11 FXS (Foreign Exchange Station) ports—Your ATA has two RJ-11 ports that work with any
standard analog phone device. Each port supports either voice calls or fax sessions, and both ports can
be used simultaneously.
• One WAN network port—An RJ-45 10/100BASE-T data port to connect an Ethernet-capable device to
the network.
The ATA network port performs autonegotiation for duplex and speed. It supports speeds of 10/100 Mbps
and full-duplex.
Note
ATA 191 Top Panel
The top panel of your ATA has several LEDs that are used to show the device's status.

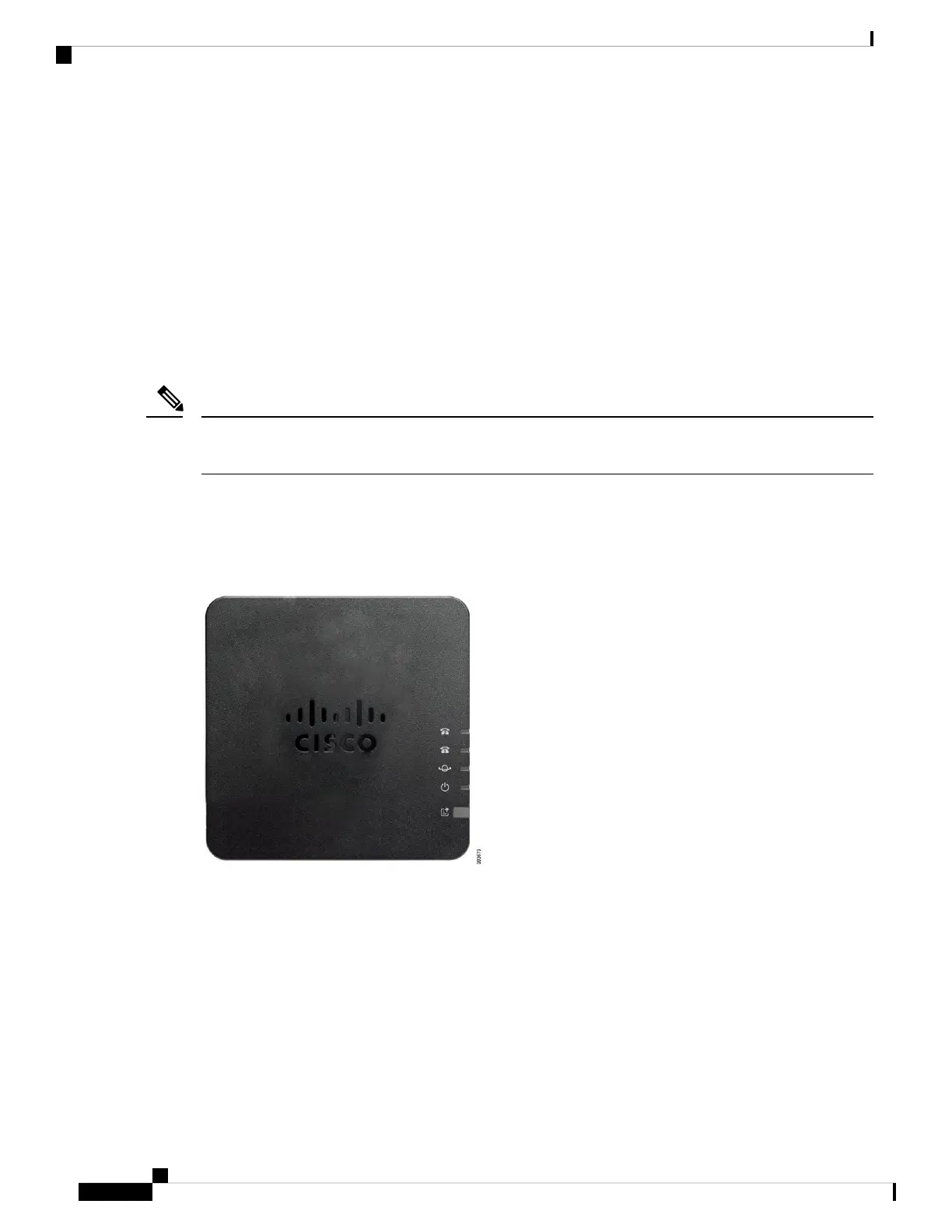

Figure 3: ATA 191 Top Panel
The following table describes the LEDs located on your ATA.
Cisco ATA 191 Analog Telephone Adapter Overview
4
Cisco ATA 191 Analog Telephone Adapter Overview
Cisco ATA 191 Hardware

Cisco ATA 191 Specifications

General

Fax Support	T.38 Fax Relay
Relative Humidity	10% to 90% (non-condensing)
Ports	2 FXS ports
Voice Protocol	SIP
Protocols	SIP, RTP, RTCP
Power	5V DC
Network Interfaces	10/100BASE-T Ethernet port
Operating Temperature	32°F to 104°F (0°C to 40°C)
Audio Codecs	G.711 (a-law and μ-law), G.729a, G.722, G.726
Voice Codecs	G.711 (a-law and μ-law), G.729a, G.722, G.726
Storage Temperature	14 to 140°F (-10 to 60°C)
