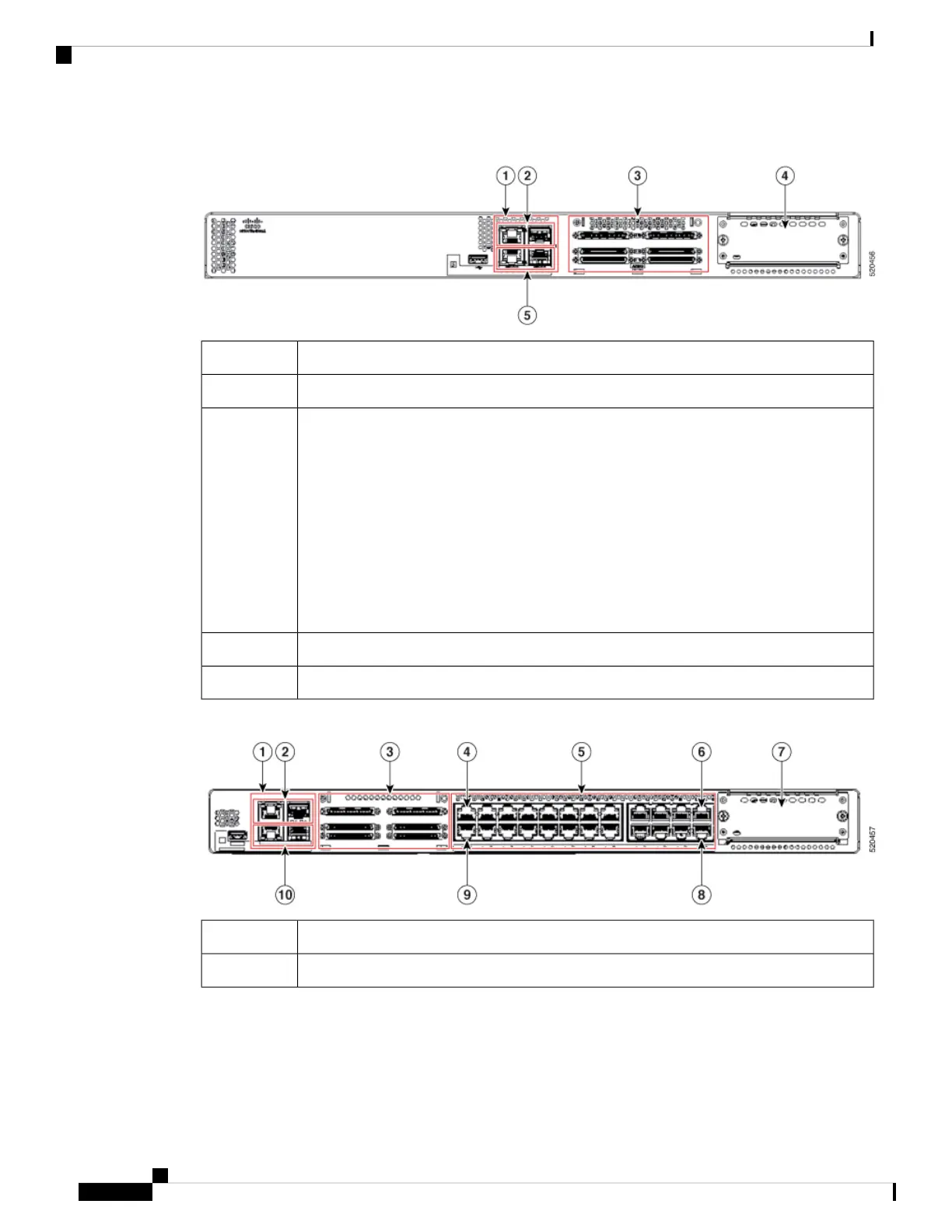

Figure 7: C1100TG-1N32A: Slots and Subslots
Slot 0/0 Front panel Gigabit Ethernet1
RJ45/SFP combo GigaEthernet 0/0/02
Slot 0/1 onboard Async serial
1 = 0-7
2 = 8-15
3 = 16-23
4 = 24-31
5 = 32-39
6 = 40-47
Async 0/1/0 ~ Async 0/1/47
3
Slot 0/2 NIM slot4
RJ45/SFP combo GigaEthernet 0/0/15
Figure 8: C1100TG-1N24P32A and C1100TGX-1N24P32A: Slots and Subslots
Slot 0/0 Front panel Gigabit Ethernet1
RJ45/SFP combo GigaEthernet 0/0/02
Hardware Installation Guide for the Cisco 1100 Terminal Gateway
6
About Cisco 1100 Terminal Gateway Routers
About Slots, Subslots, and Port Numbering

Cisco C1100TG-1N32A Specifications

General

Brand	Cisco
Model	C1100TG-1N32A
Category	Gateway
Language	English
