Cisco Catalyst 2900 Series Hardware Installation Guide

Chapter 2 Installation
Connecting to Module Ports
2-8
Catalyst 2900 Series XL Modules Hardware Installation Guide
78-5912-03
Note Always use a straight-through cable when connecting to a PC,
server, or workstation. Use a crossover cable to connect to another
switch or hub. See the section “10/100 Module Cabling” in
Appendix B, “Connectors and Cables.”

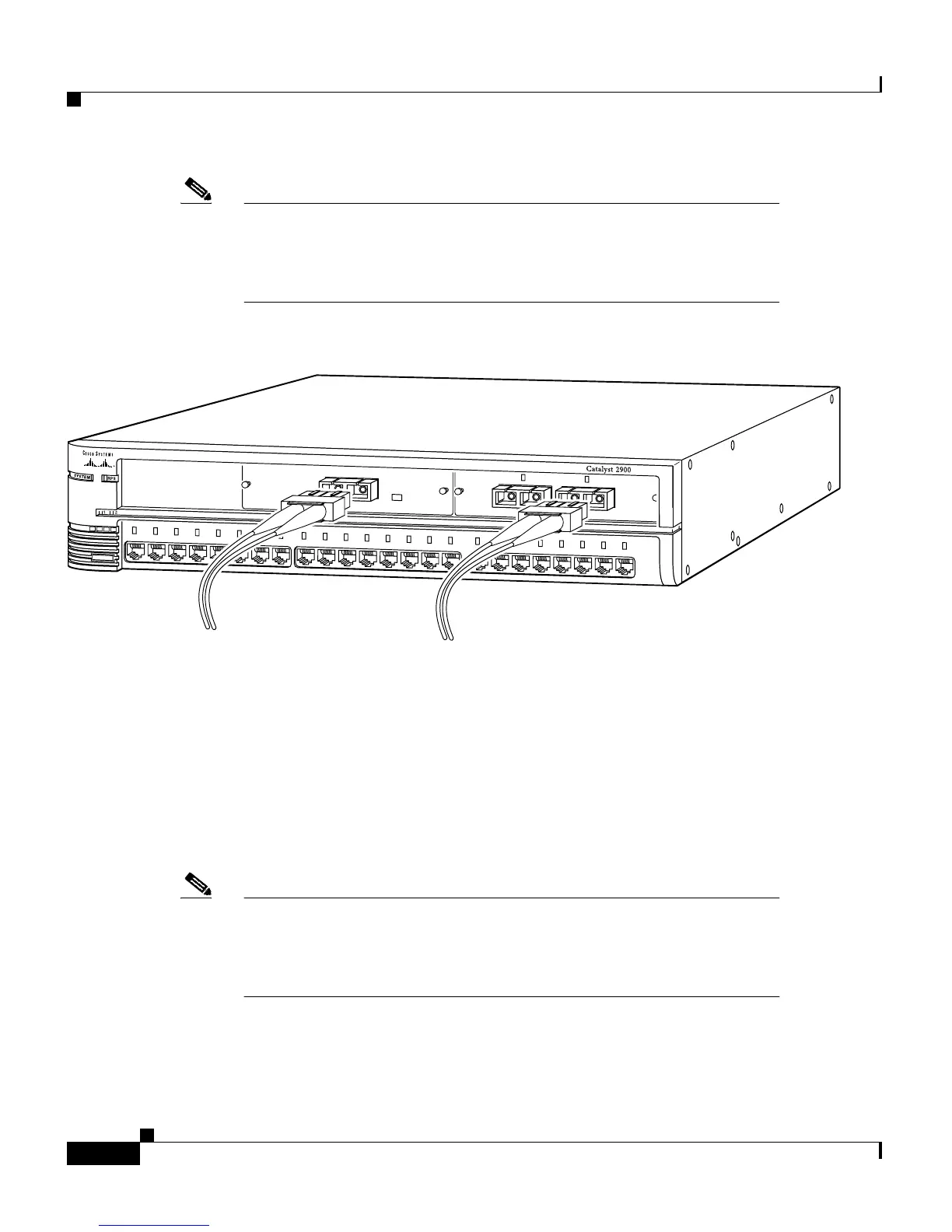

Figure 2-5 Inserting an SC Connector into a 100BaseFX or 1000BaseX SC Module
Using a Patch Cord with the GBICs
When using the LX/LH GBIC with 62.5-micron diameter multimode fiber
(MMF), you must install a mode-conditioning patch cord (Cisco product number
CAB-GELX-625 or equivalent) between the GBIC and the MMF cable on both
the transmit and receive ends of the link for link distances greater than 984 feet
(300 meters).
Note You must use the patch cord to comply with the IEEE 802.3z
standards. Using the LX/LH GBIC with MMF and no patch cord for
very short link distances (tens of meters) is not recommended. The
result could be an elevated bit error rate (BER).
H11053
1x
2x
3x
4x
5x
6x
7x 8x
9x
10x
11x
12x
13x
14x 15x
16x
17x
18x
19x 20x 22x
24x
21x
23x
10B
ase
T
/1
0
0B
as
eT
x
MODE
100BaseFX
Tighten
Screws
To Activate
100BaseFX
1
2
W
S
-X
292
2-X
L-V
SERIES
XL
WS-X2931-XL
Tx
Rx
Tighten
S
crew
s
To Activate
