Cisco Catalyst 2900 Series Hardware Installation Guide

B-3
Catalyst 2900 Series XL Modules Hardware Installation Guide
78-5912-03
Appendix B Connectors and Cables
1000BaseT Module Connectors
1000BaseT Module Connectors
The 1000BaseT module has one RJ-45 connector on the front panel. Figure B-3
shows the pinout.

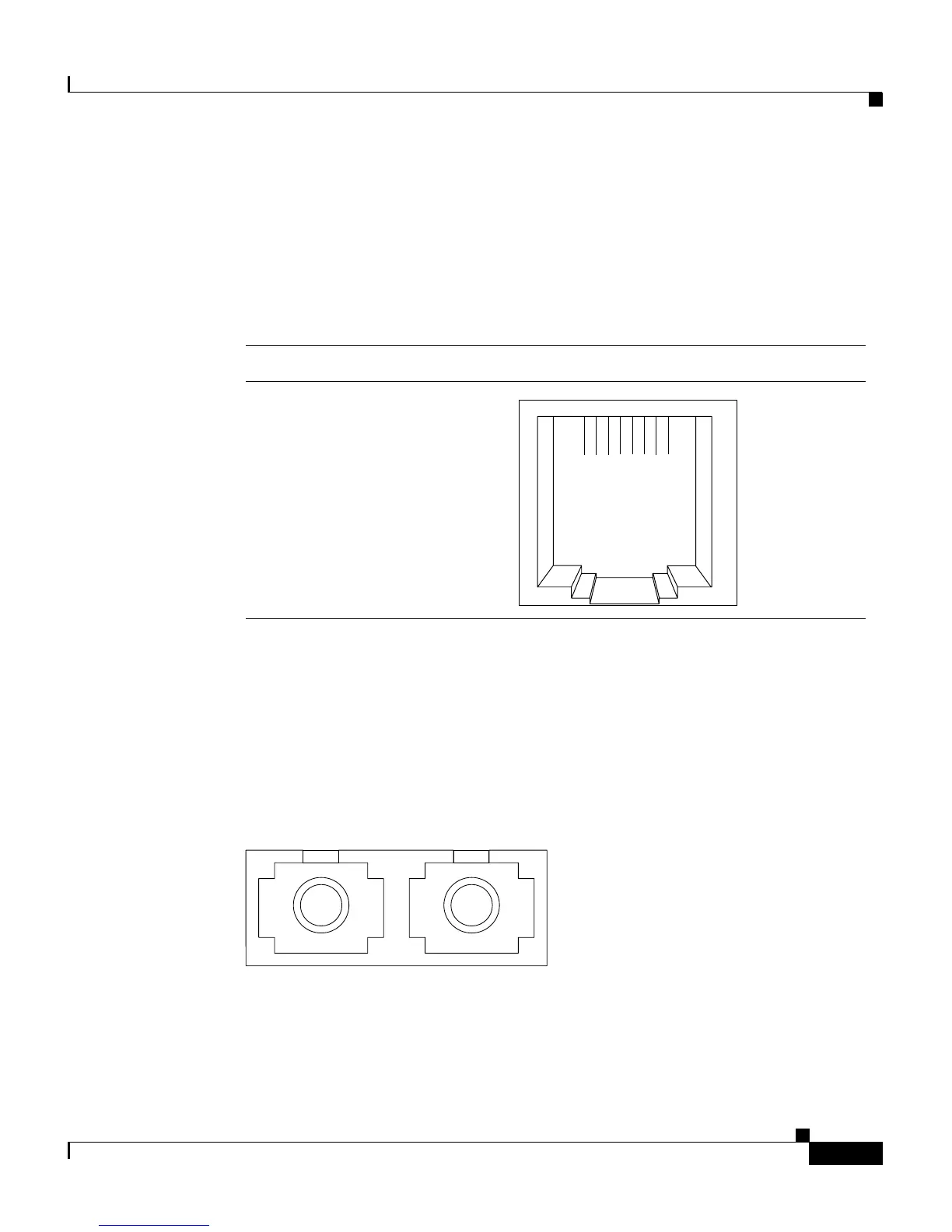

Figure B-3 1000BaseT RJ-45 Connector
100BaseFX and 1000BaseX Modules Cabling
The 100BaseFX and the 1000BaseX modules use duplex SC connectors. This type
of connector is shown in Figure B-4.
Figure B-4 100BaseFX and 1000BaseX SC Connector
1 2 3 4 5 6 7 8
Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
34751
H8707
Tx Rx
