Cisco Catalyst 2960-CX

•
RJ-45 console port
•
USB mini-Type B (console) port
•
USB Type A port
•
LEDs

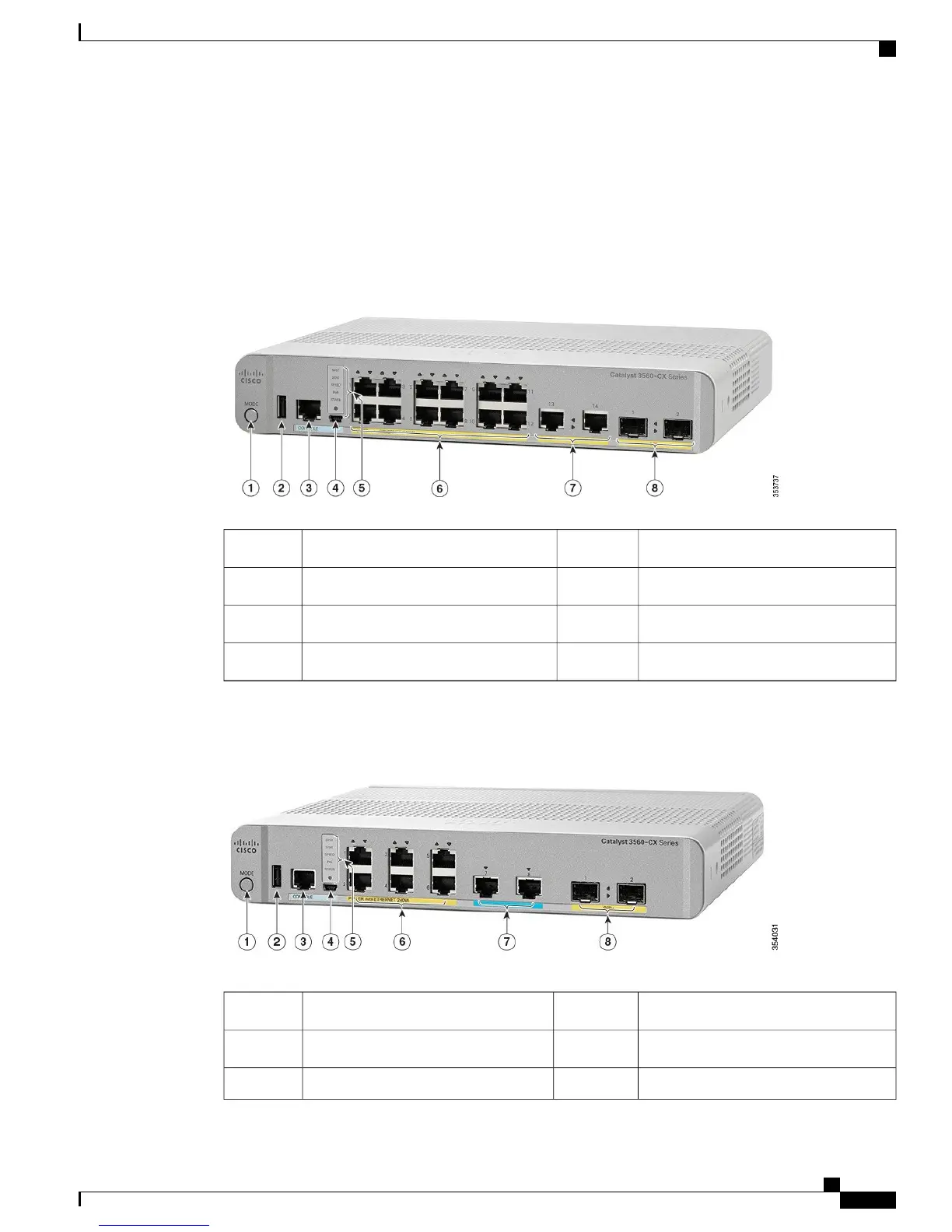

Figure 1: Catalyst 3560CX Front Panel View
System LEDs5Mode button1
10/100/1000 PoE+ ports6USB Type A port2
10/100/1000 uplink ports7RJ-45 console port3
SFP module slots8USB mini-Type B (console) port4
Figure 2: Catalyst 3560CX-8XPD-S Front Panel View
System LEDs5Mode button1
10/100/1000 PoE+ ports6USB Type A port2
Multigigabit PoE+ ports7RJ-45 console port3
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
3
Product Overview
Front Panel
