Chapter 2 Switch Installation
Mounting the Switch

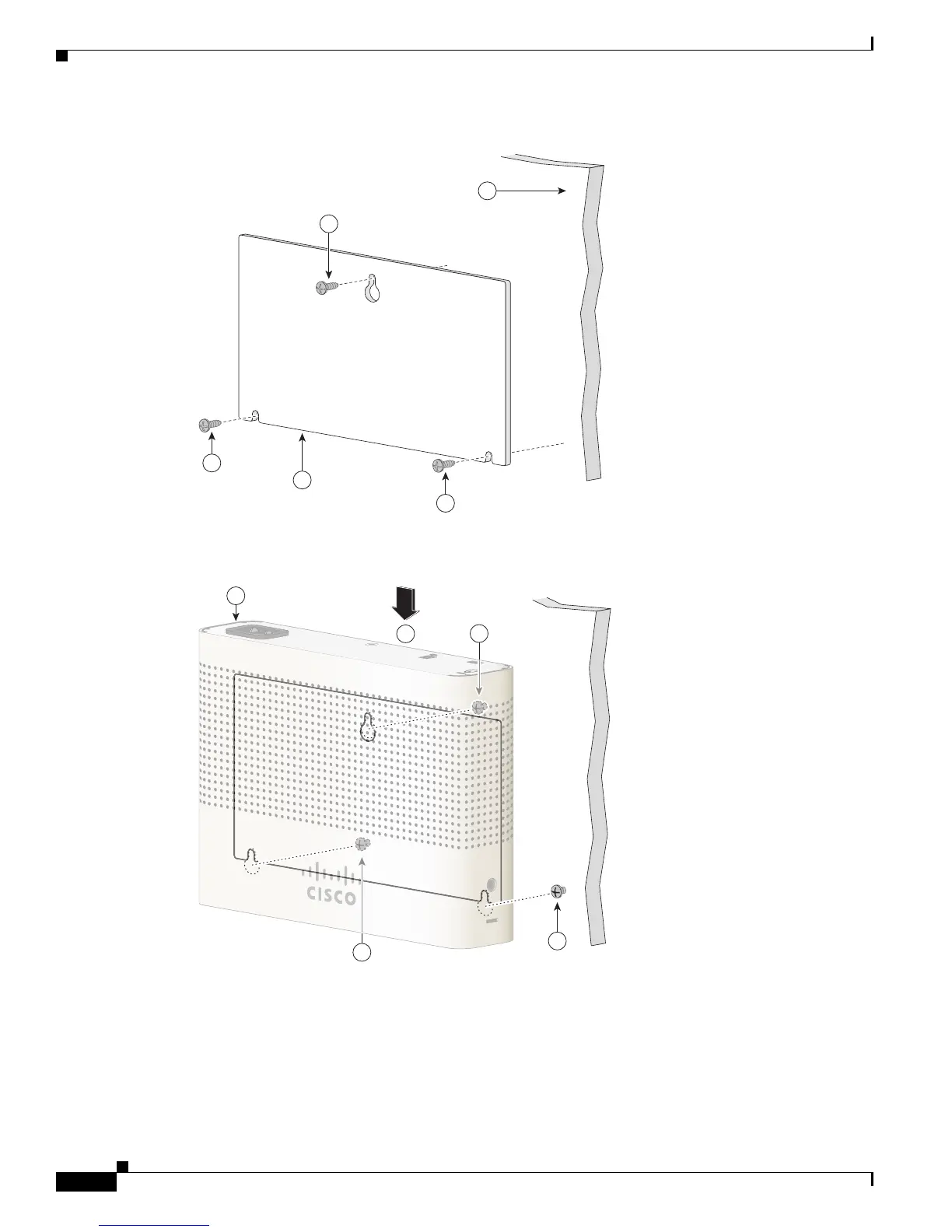

Figure 2-6 Installing the Mounting Screws on the Wall
Figure 2-7 Installing the Switch on a Wall
Step 8
Place the switch onto the mounting screws, and slide it down until it locks in place. See Figure 2-7.
CABLE SIDE ENTRY
THIS SIDE AWAY FROM
MOUNTING SURFACE
2
3
2
2
1
157828
R
E
SE
T
A
U
X
5
3
V
, 1.
5
A
3
1
2
2
2
208926
