Catalyst 3560-C and 2960-C Switch Hardware Installation Guide
OL-23803-02
Chapter 2 Switch Installation
Mounting the Switch
Removing the Switch from a DIN Rail
Step 1 Ensure that power is removed from the switch, and disconnect all cables and connectors from the front
panel of the switch.
Step 2 Pull down on the DIN rail mount release tabs. As the clips release, lift the bottom of the switch.
See Figure 2-20.

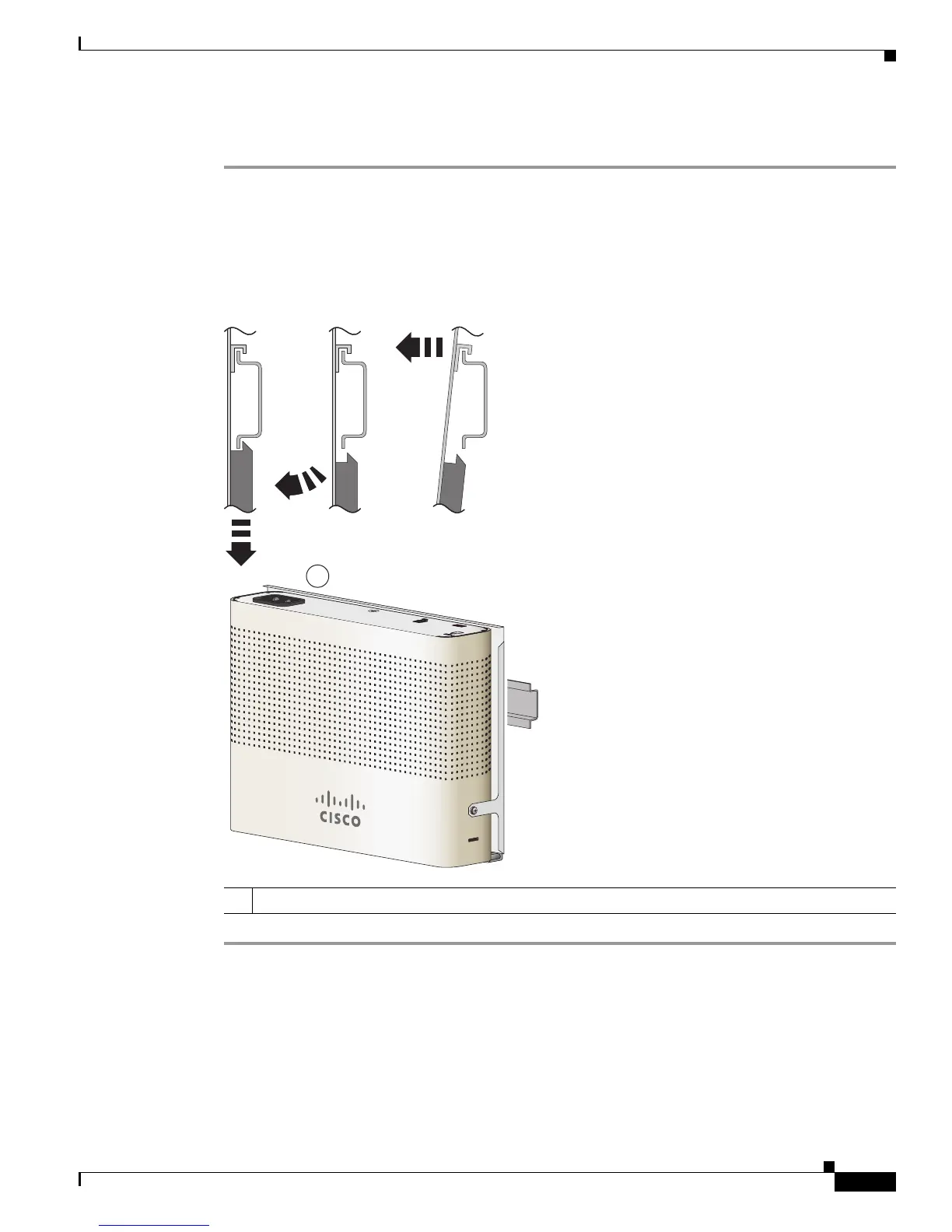

Figure 2-20 Switch Removal
1 Switch
1
344246
RESET
AUX 53V , 1.5A
