to the CC-evaluated security functional requirements, however the supervisor cards are
security relevant.

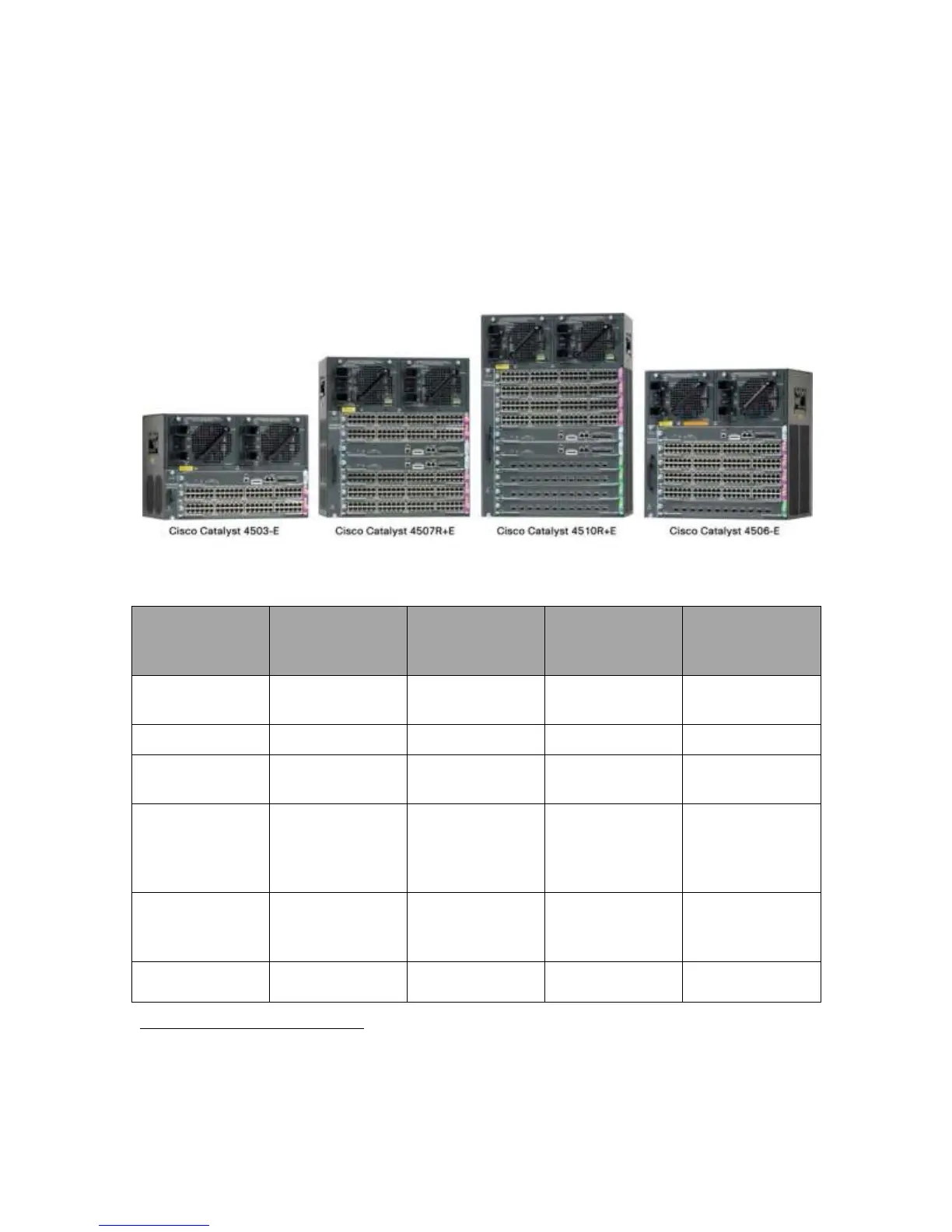

Figure 2 Catalyst 4500 Series Switch Chassis
Table 5 Catalyst 4500 Series Switch Chassis Features
Feature
Cisco Catalyst
WS-C4503-E
Chassis
Cisco Catalyst
WS-C4506-E
Chassis
Cisco Catalyst
WS-C4507R+E
Chassis
Cisco Catalyst
WS-C4510R+E
Chassis
Total number of
slots
3
6
7
10
Line-card slots
2
5
5
8
Supervisor
engine slots
1
4
1
2
2
5
2
6
Dedicated
supervisor
engine slot
numbers
1
1
3 and 4
5 and 6
Supervisor
engine
redundancy
No
No
Yes
Yes (Supervisor
V-10GE, 6-E and
7-E)
Supervisor
engines
Supervisor 7-E
Supervisor 7-E
Supervisor 7-E
Supervisor 7-E
4
Slot 1 is reserved for supervisor engine only; slots 2 and higher are reserved for line cards.
5
Slots 3 and 4 are reserved for supervisor engines only in Cisco Catalyst 4507R-E and 4507R+E; slots 1-2 and 5-7 are
reserved for line cards.
6
Slots 5 and 6 are reserved for supervisor engines only in Cisco Catalyst 4510R-E and 4510R+E; slots 1-4 and 7-10 are
reserved for line cards

Cisco Catalyst 4503-E Specifications

General

Brand	Cisco
Model	Catalyst 4503-E
Category	Switch
Language	English
