Cisco Catalyst 6880-X Installation Guide

Before You Begin
You will require:
•
Number 1 and Number 2 Phillips screwdrivers
•
3/16-inch flat-blade screwdriver
•
Tape measure and level
Procedure
Step 1
Secure the crossbar to the shelf brackets by using two M4 screws, with one screw on each side.

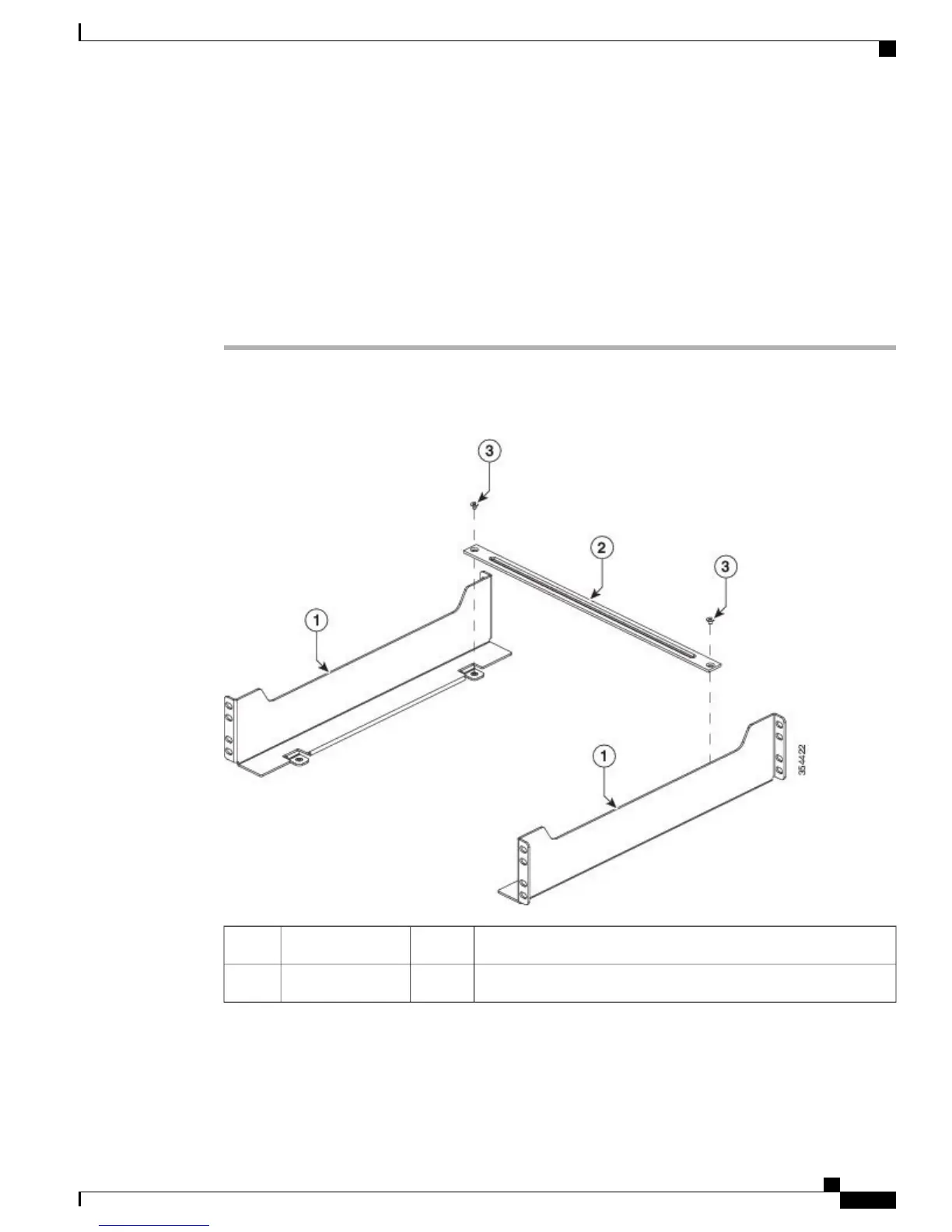

Figure 2: Securing the crossbar to the shelf brackets
M4 x 5 mm flat-head screw3Shelf brackets1
Crossbar2
Step 2
Position the front side of the support flanges of the shelf brackets on the fixed front-left and front-right posts
of the rack and secure them by using the four EA screws (Two EA screws on each side).
Catalyst 6880-X Switch Hardware Installation Guide
OL-30827-02 7
Installing the Switch
Installing the Rack-Mount Shelf Kit
