Cisco Catalyst 9130AX Series Access Points
dC9130AXI (Internal Antenna)
The C9130AXI access point is equipped with four integrated, omnidirectional, dual-band antennas (2.4 GHz and 5
GHz), four integrated, omnidirectional, single-band antennas (5 GHz only), one integrated, omnidirectional, single-band
antenna (2.4 GHz) for the dedicated 2.4 GHz IOT radio, and one integrated, omnidirectional, dual-band antenna (2.4
GHz and 5 GHz) for the dedicated 2.4 GHz and 5 GHz AUX radio.

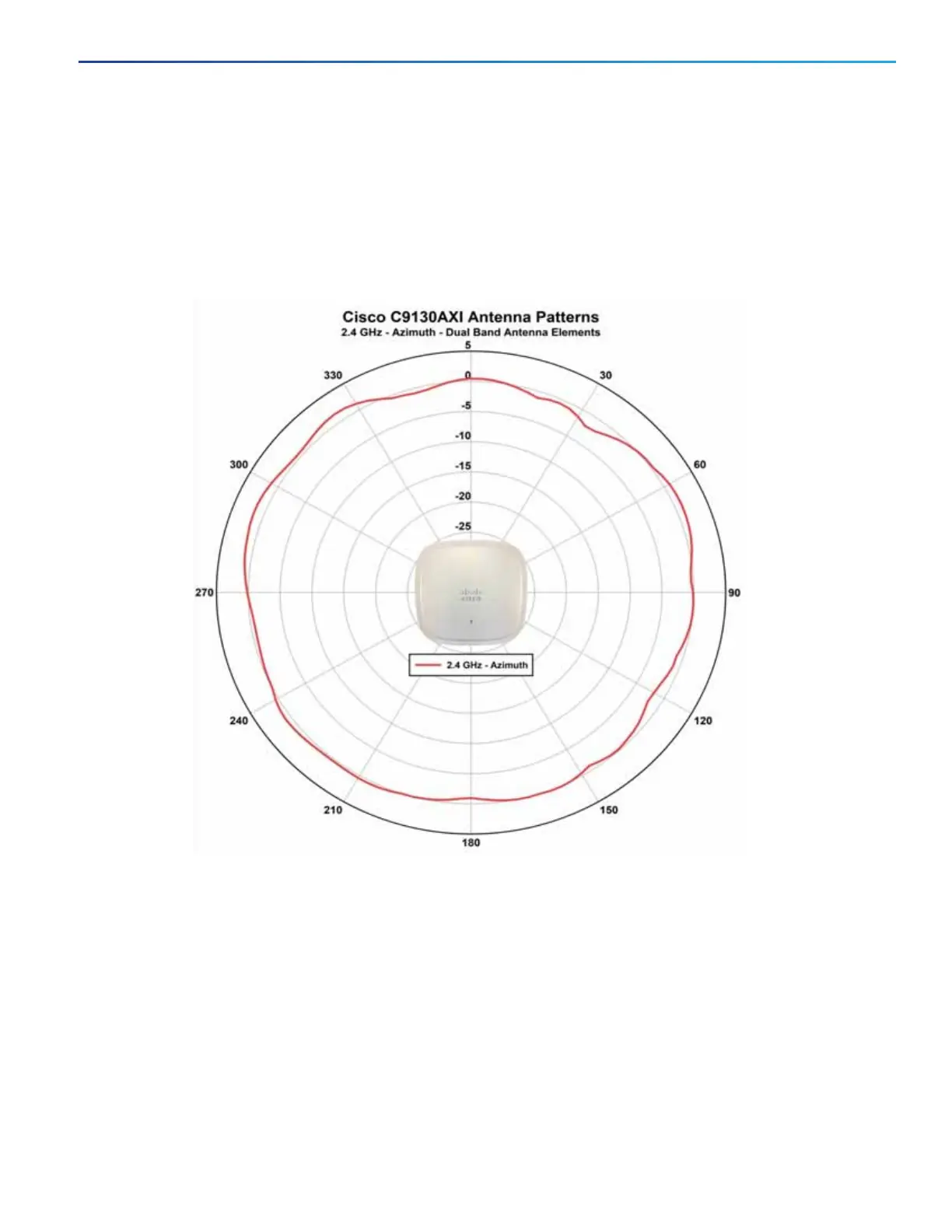

Figure 3-5 C9130AXI - Dual-band Antenna radiation pattern (2.4 GHz Azimuth)

Cisco Catalyst 9130AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0
Target Wake Time (TWT)	Yes
BSS Coloring	Yes
USB Port	1x USB 2.0
Frequency Bands	2.4 GHz, 5 GHz
PoE	802.3at (PoE+)
Antenna Type	Internal
OFDMA	Yes
Mounting	Ceiling, Wall
Weight	1.2 kg
Security	WPA3, WPA2, WPA, 802.1X
Management	Cisco DNA Center, Cisco Prime Infrastructure
MIMO	8x8:8 MU-MIMO (5 GHz), 4x4:4 MU-MIMO (2.4 GHz)
