Cisco Catalyst 9130AX Series Access Points

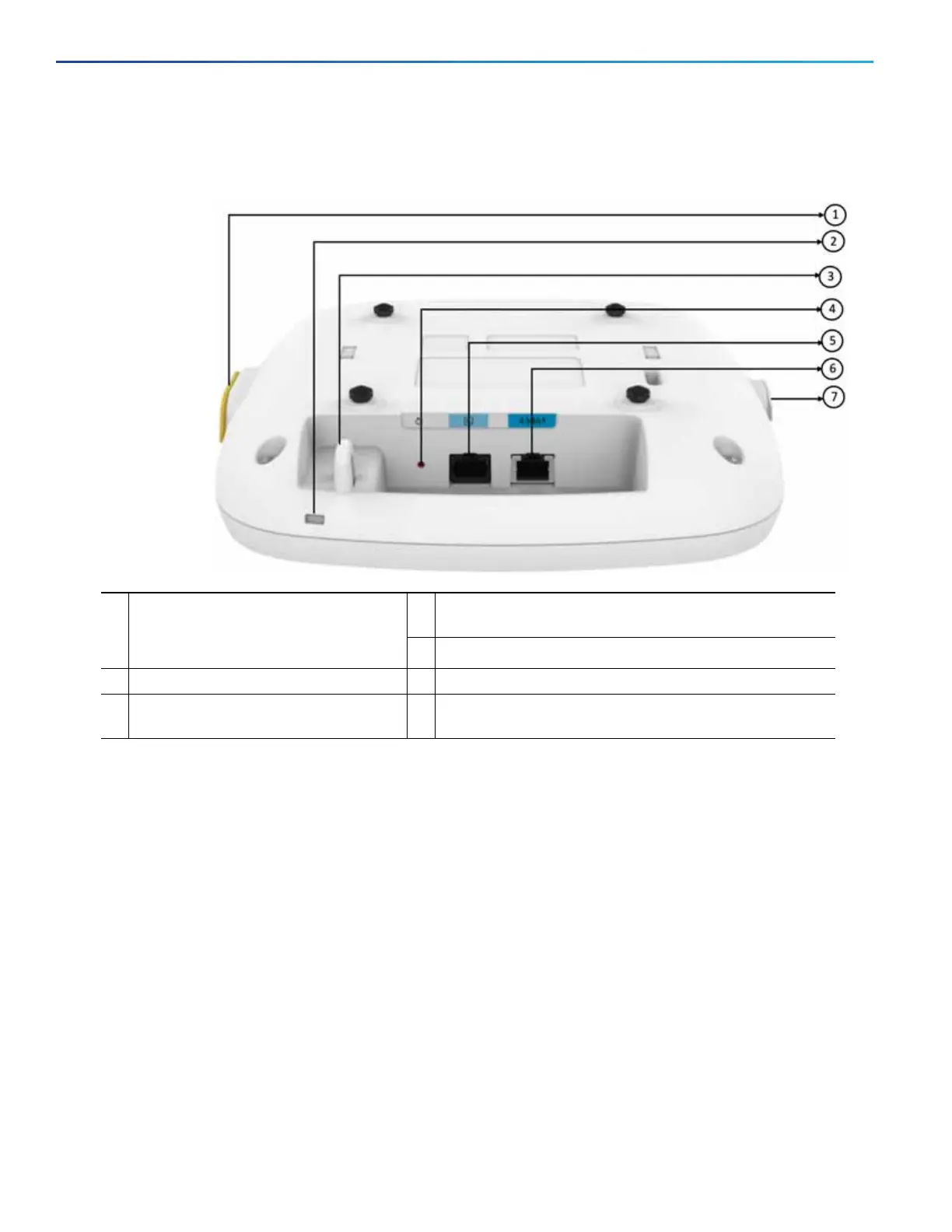

The ports and connections on the bottom of the access point are shown in Figure 4.
Figure 4 Ports and Connections on the Head of the C9130AXE Model
1
8-port Smart Antenna (DART) connector
port, under a yellow cap
1
For more information, see “What is a
Smart Antenna connector?”
section.
1. Only external antennas with the 8-port DART cable can be connected to this AP.
4
Mode button
For more information, see
“Using the Mode Button” section.
5
RJ-45 console port
2
Kensington lock slot
6
5 GbE port
3
Security hasp for padlocking AP to
mounting bracket
7
USB 2.0 port

Cisco Catalyst 9130AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0
Target Wake Time (TWT)	Yes
BSS Coloring	Yes
USB Port	1x USB 2.0
Frequency Bands	2.4 GHz, 5 GHz
PoE	802.3at (PoE+)
Antenna Type	Internal
OFDMA	Yes
Mounting	Ceiling, Wall
Weight	1.2 kg
Security	WPA3, WPA2, WPA, 802.1X
Management	Cisco DNA Center, Cisco Prime Infrastructure
MIMO	8x8:8 MU-MIMO (5 GHz), 4x4:4 MU-MIMO (2.4 GHz)
