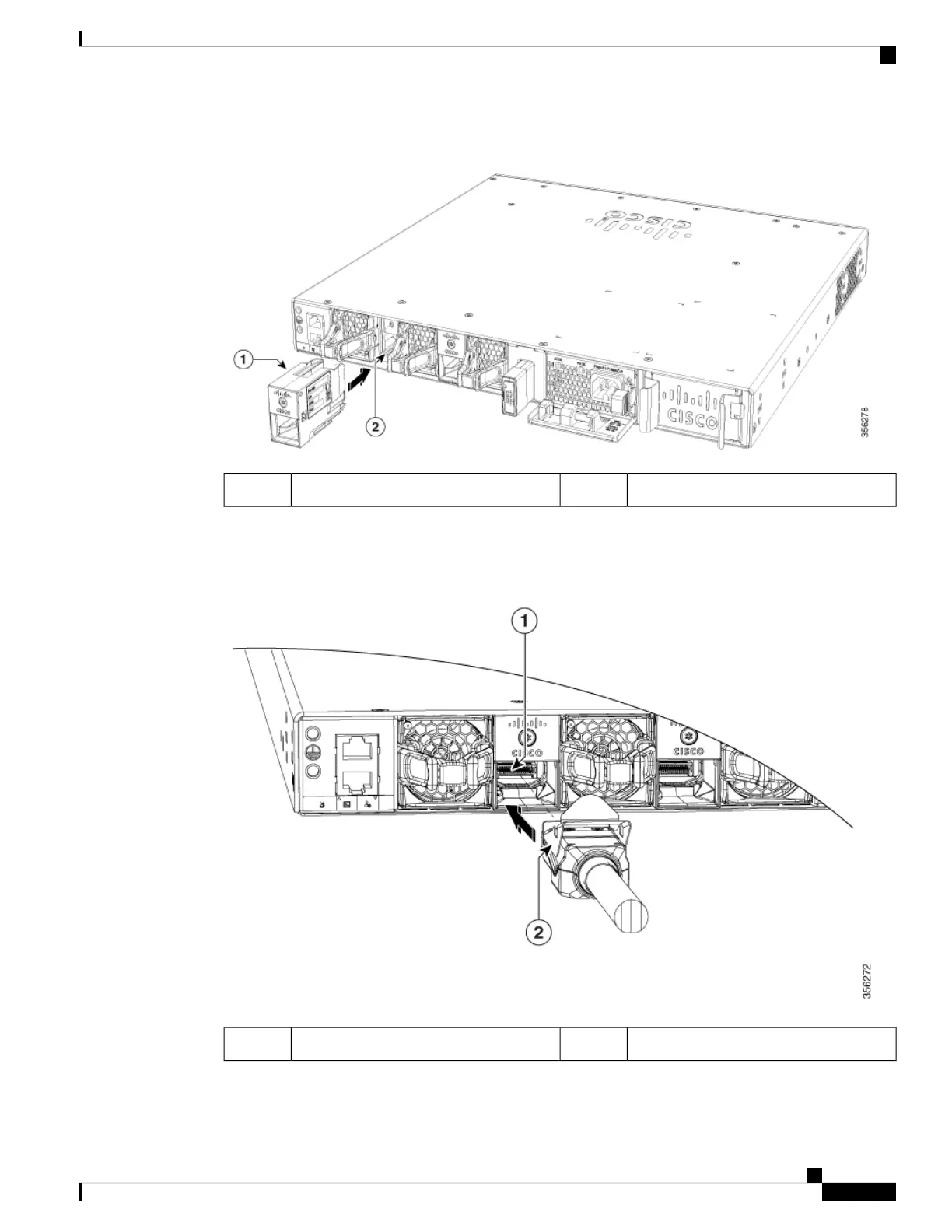

Figure 20: Inserting the StackWise-320 Adapter
StackWise port2StackWise-320 adapter1
Step 4 Align and insert the StackWise cable connector into the StackWise adapter in the StackWise port. Push inwards
until the spring latch locks into the slot.
Figure 21: Installing the StackWise-320 Cable in a StackWise Port
Stacking cable2StackWise-320 adapter1
Installing a Switch
17
Installing a Switch
Connecting a StackWise-320 Cable
