Cisco Catalyst 9300 Series Installing

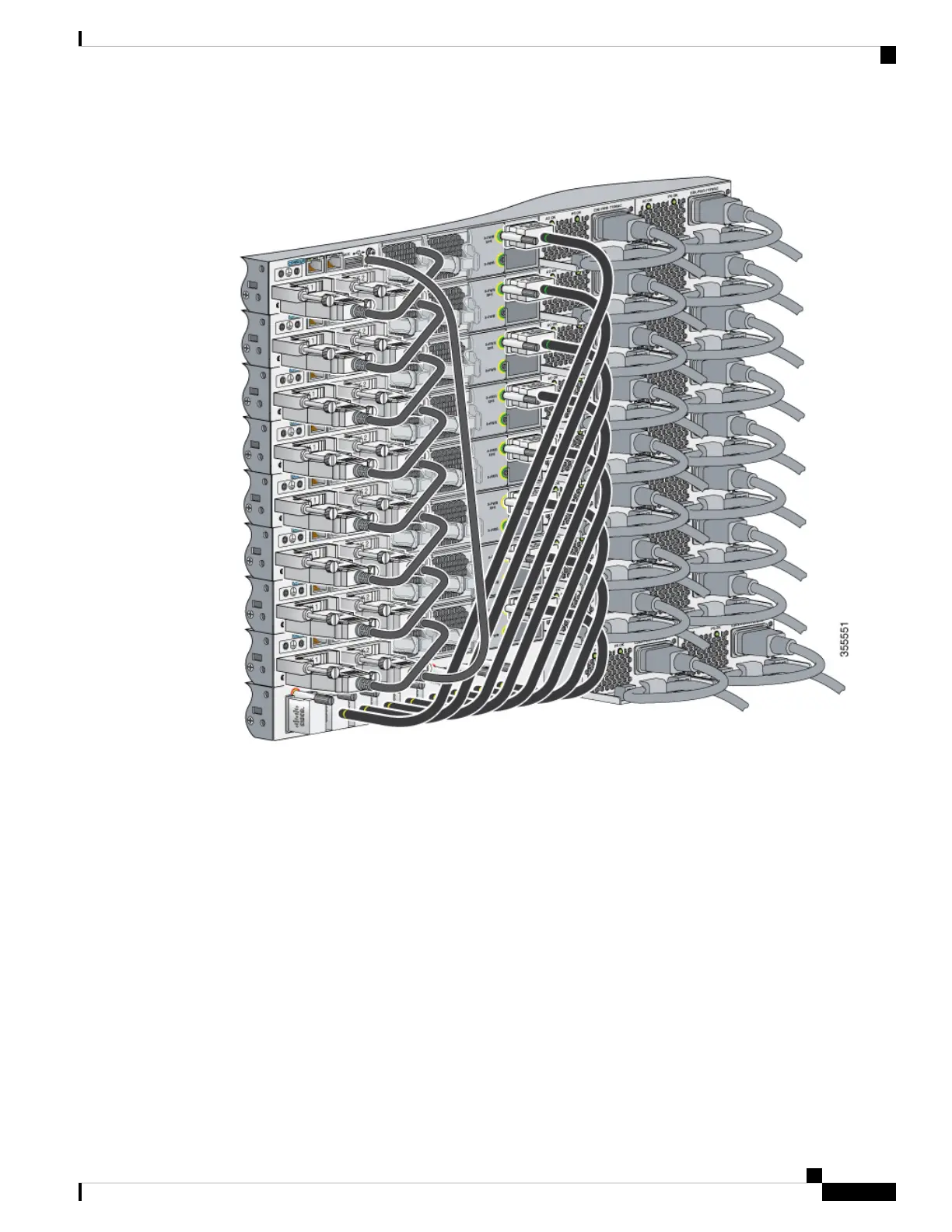

Figure 10: StackPower Star Topology
StackPower Partitioning Examples
These figures show StackPower stacks of switches with failover conditions.
In the following figure, the StackPower cable 2 is faulty. This is considered a broken ring and is a fault
condition. Power is still shared across the stack, but this condition will place a limitation on power budgeting
and the number of high priority ports it can protect in the case of any further failures such as failure of power
supply, AC mains, StackPower port and so on. StackPower is not intended for secondary failures and hence
restoration of the failed component or power should be done immediately.
Installing a Switch
9
Installing a Switch
StackPower Partitioning Examples

Cisco Catalyst 9300 Series Specifications

General

Operating System	Cisco IOS XE
Model	Cisco Catalyst 9300 Series
Uplink Interfaces	10G, 25G, 40G
Downlink Interfaces	1G
Stacking Bandwidth	480 Gbps
Power Supply	Redundant power supplies
PoE	UPOE
Port Density	Up to 48 ports
Power over Ethernet (PoE)	UPOE, UPOE+
Security Features	MACsec
Management	Cisco DNA Center, CLI, SNMP
Redundancy	Stacking, redundant power supplies, hot-swappable fans
