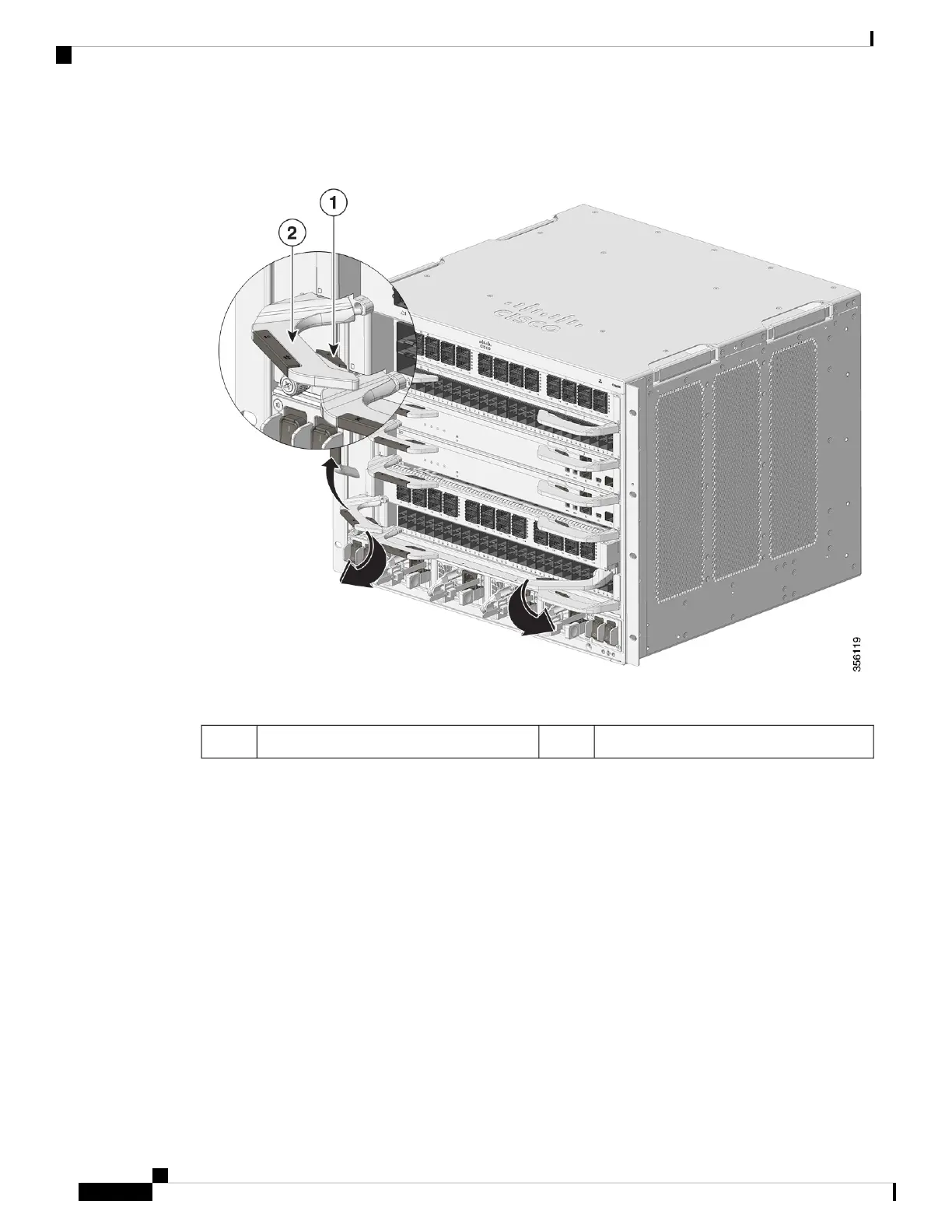

Figure 11: Pivoting the Ejector Levers

Ejector levers2Button on the ejector lever1

Step 6 Grasp the front panel of the line card with one hand and place your other hand under the carrier to support

and guide it out of the slot. Do not touch the printed circuit boards or connector pins.

Step 7 Carefully slide the line card straight out of the slot, keeping your other hand under the carrier to guide it.

Cisco Catalyst 9600 Series Line Card Installation Note

Removing a Line Card

Other manuals for Cisco Catalyst 9600 Series

Questions and Answers:

Need help?

Do you have a question about the Cisco Catalyst 9600 Series and is the answer not in the manual?

General

Series	Catalyst 9600 Series
Category	Switch
Switching Capacity	Up to 25.6 Tbps
Software	Cisco IOS XE
Form Factor	Modular chassis
Purpose	Enterprise campus core and distribution
Ports	10G, 25G, 40G, 100G, 400G
Redundancy	Yes, supports redundant power supplies and fans
Stacking	Virtual Stacking supported
Security	Advanced security features including MACsec encryption
Management	Cisco DNA Center, CLI, SNMP
Uplink Ports	40G, 100G
Power Supply	Redundant, hot-swappable
Operating Temperature	0°C to 45°C (32°F to 113°F)
Port Density	Up to 384 ports
Weight	Starting at 75 lbs (34 kg)
Modular Slots	Up to 6 line card slots
