Cisco Catalyst 9800-L User Manual

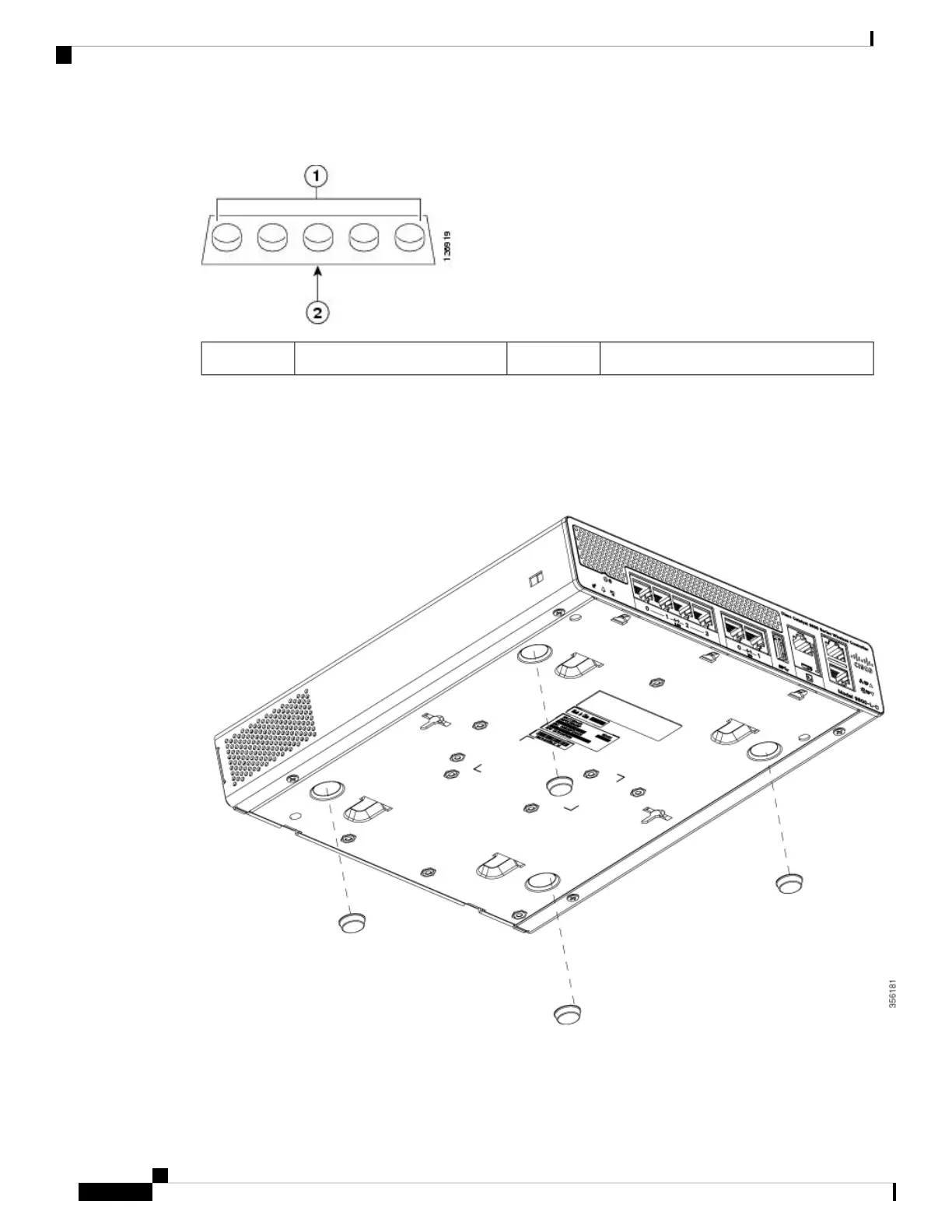

Figure 1: Identifying the Rubber Feet
Black adhesive strip2Rubber feet1
Step 2 Place the controller upside down, on a smooth, flat surface.
Step 3 Peel off the rubber feet from the black adhesive strip and press them adhesive-side down onto the bottom four
corners of the controller, see the figure below:
Figure 2: Attaching the Rubber Feet
Step 4 Place the controller right-side up on a flat, smooth, secure surface.
Installing the Cisco Catalyst 9800-L Wireless Controller
2
Installing the Cisco Catalyst 9800-L Wireless Controller
Mounting the Controller on Desktop or Shelf

Cisco Catalyst 9800-L Specifications

General

Model	Cisco Catalyst 9800-L
Category	Controller
Throughput	5 Gbps
Redundancy	Yes
Max Access Points	200
Product Type	Wireless LAN Controller
Form Factor	Rack-mountable
Rack Height	1U
USB Ports	1x USB 3.0
Redundant Power Supply	Optional
Product Family	Cisco Catalyst 9800 Series
Operating System	Cisco IOS XE
Power Supply	AC power supply
Wireless Standard	802.11ax
Management Port	1 x RJ-45
Interface	Gigabit Ethernet
Encryption	AES
