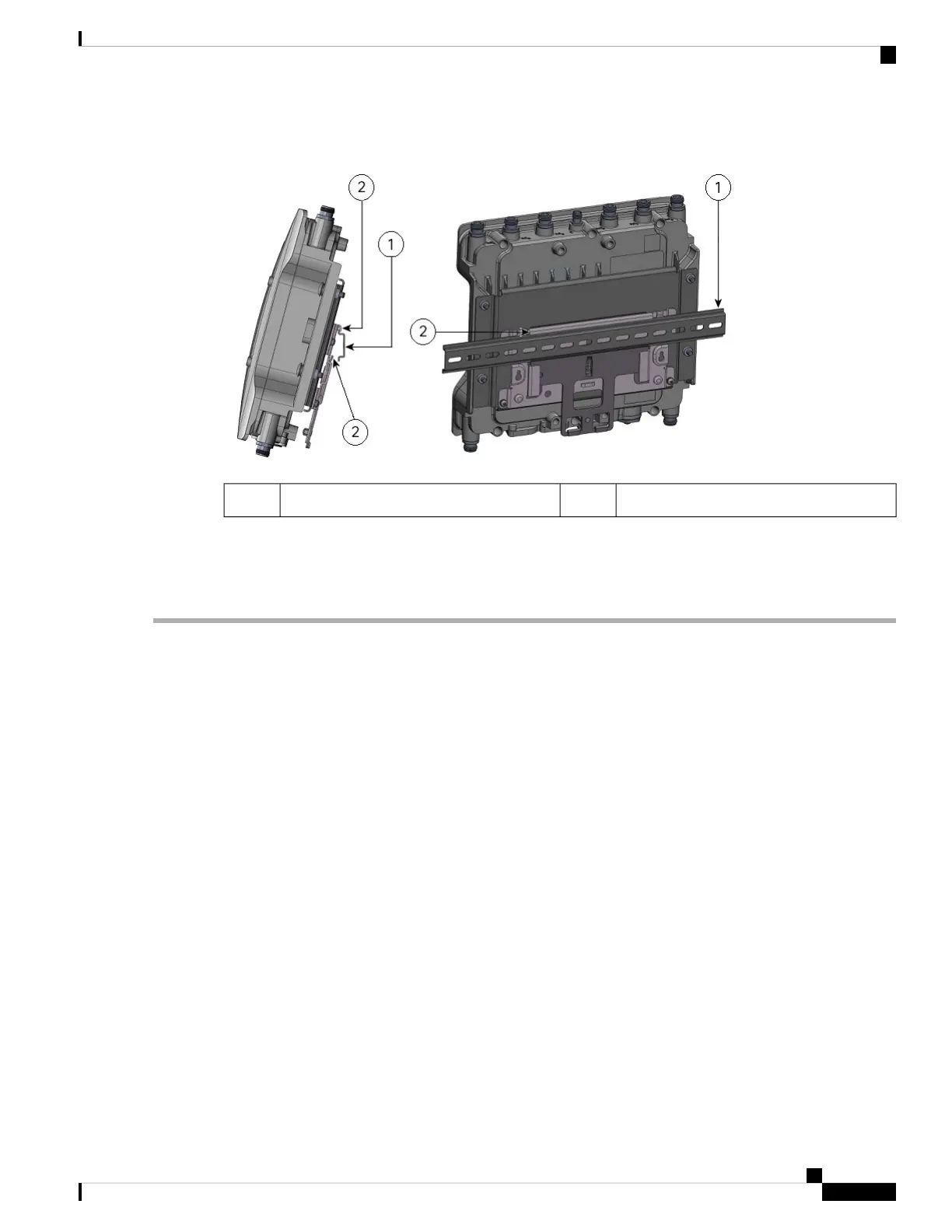

Figure 1: DIN Rail Mounting Assembly
DIN rail mounting bracket clip235 mm DIN rail (not supplied by Cisco)1
To DIN rail mount the access point:
Procedure
Step 1 Assemble the access point and DIN rail mounting bracket using the M6 hardware supplied as shown in the following
figure.
Installation Overview
7
Installation Overview
Using the DIN Rail Mounting Bracket
