Chapter 1 Getting Started Guide
Run Express Setup
1-4
Getting Started Guide for the Catalyst Express 500 Switches
78-17084-03
Step 8

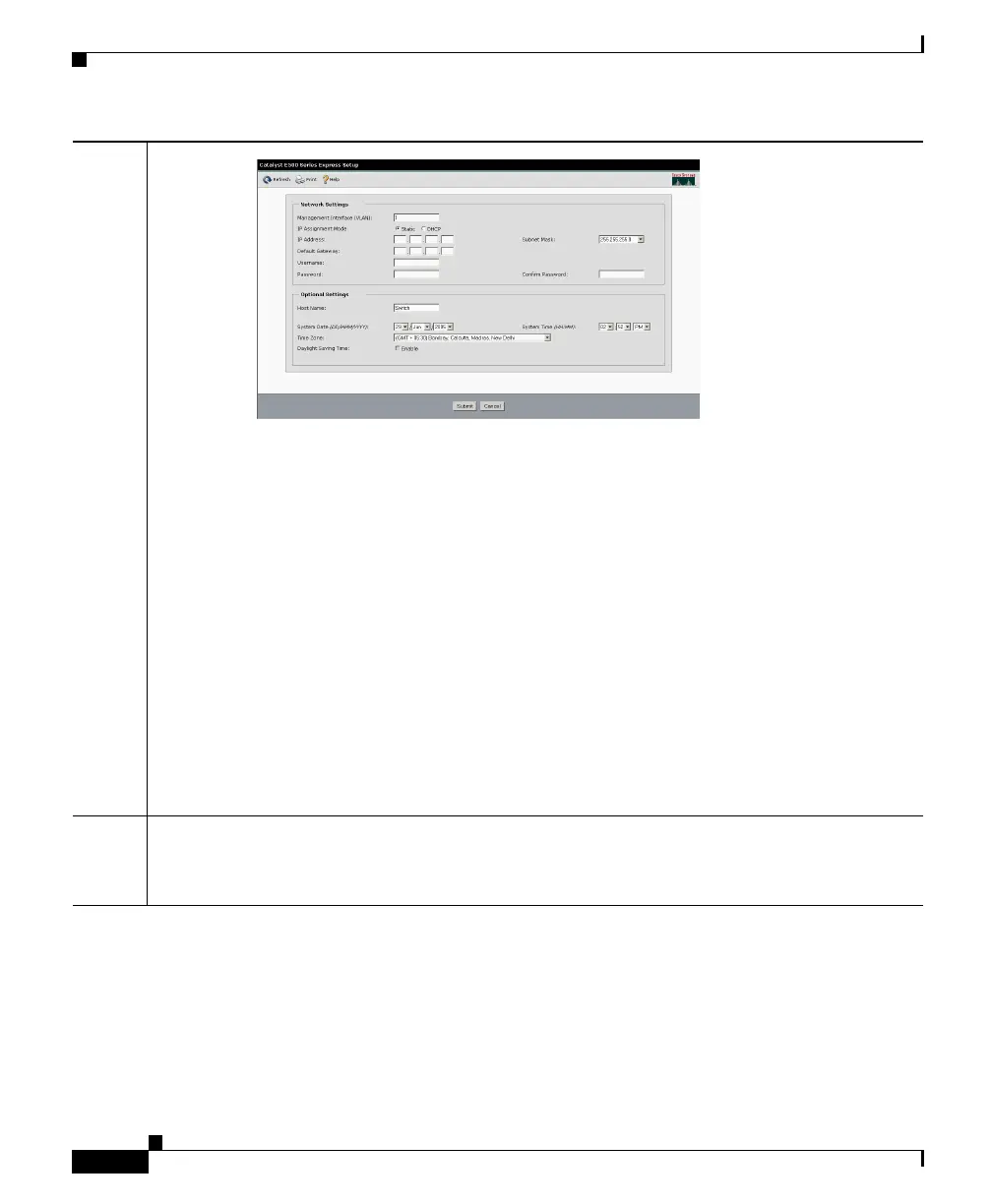

Enter the network settings. Note: all entries must be in English letters and Arabic numbers.
• Management Interface (VLAN): We recommend using the default, VLAN 1.
• IP Assignment Mode: We recommend using the default, Static, which means that the
switch always has the IP address that you assign.
• IP Address: Enter the IP address for the switch.
• Subnet Mask: Select a mask from the drop-down list.
• Default Gateway: Enter the IP address of the router.
• Username: Enter a unique name.
• Password: Enter a password. In the Confirm Password field, enter the password again.
• Optional Settings: Enter a Host Name for the switch. The date and time fields are
populated from your PC.
For more information about the network settings, click Help on the device manager toolbar.
Step 9
Click Submit to save changes and finish basic configuration. When you click Submit, the
information you entered is saved. You have completed the initial switch setup.
If you click Cancel, the fields are cleared, and you can start over.

Cisco Catalyst Express 500 Series Specifications

General

Model	Cisco Catalyst Express 500 Series
Ports	24 or 48 10/100 ports
Management	Web-based
QoS	Yes
MAC Address Table Size	8000
Relative Humidity	10% to 90% non-condensing
PoE	Optional
