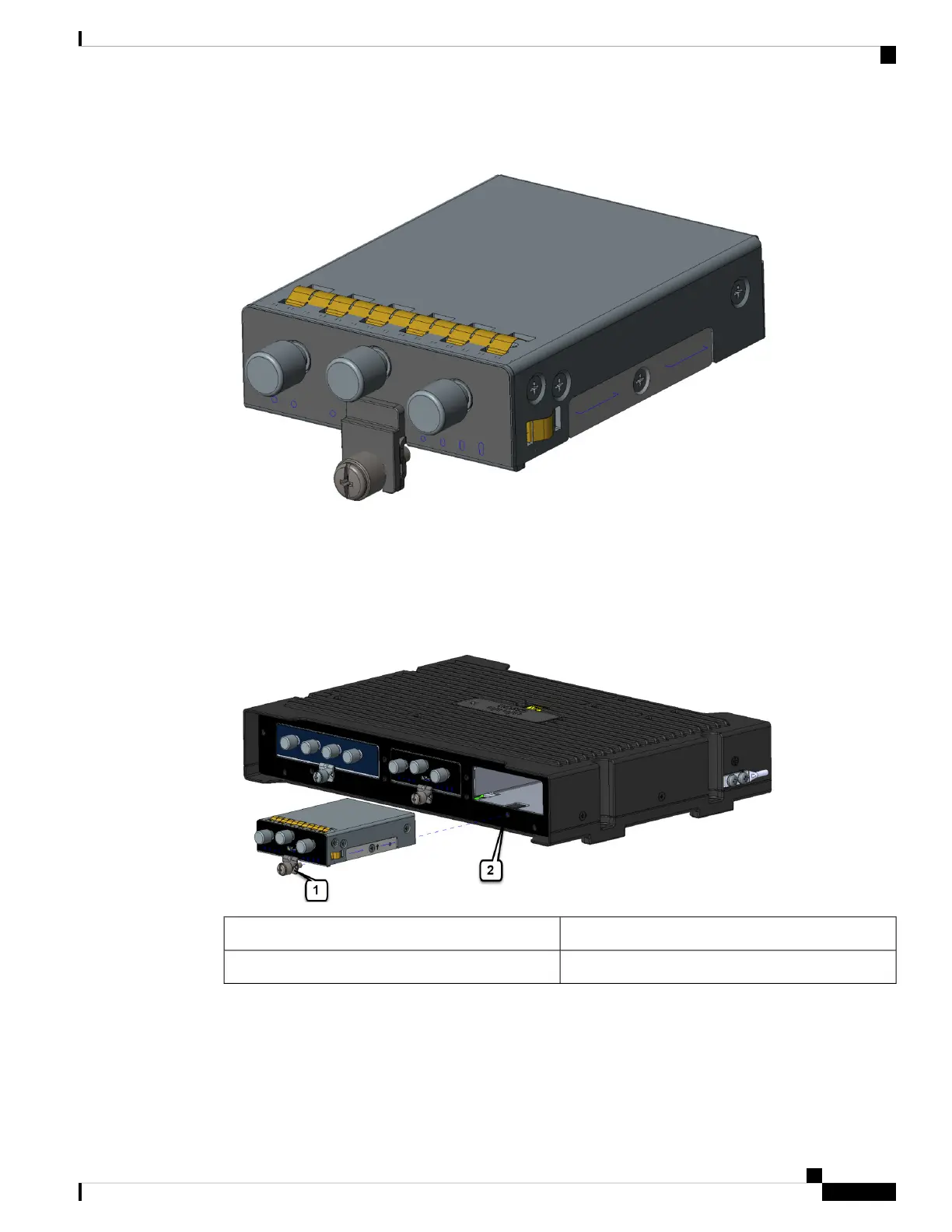

Figure 16: Completed USB Cover Installation
Step 8 Slide the pluggable module into the device, as shown in the following figure. The latch lock screw (1) aligns
with the screw hole (2) on the face of the device. Push the pluggable module all the way into the device until
you feel it seat, and then torque the latch lock screw 8-10 inch-pound (0.9 to 1.1 Newton meter).
Figure 17: Pluggable Module Insertion
Latch lock screw1
Screw hole2
Step 9 Attach your antenna cables to the ports on the pluggable module. There are different instructions for each
antenna type. So be sure to consult the corresponding antenna documentation for proper orientation and torque
to install them.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
47
Pluggable Interface Modules
Installing a PIM
