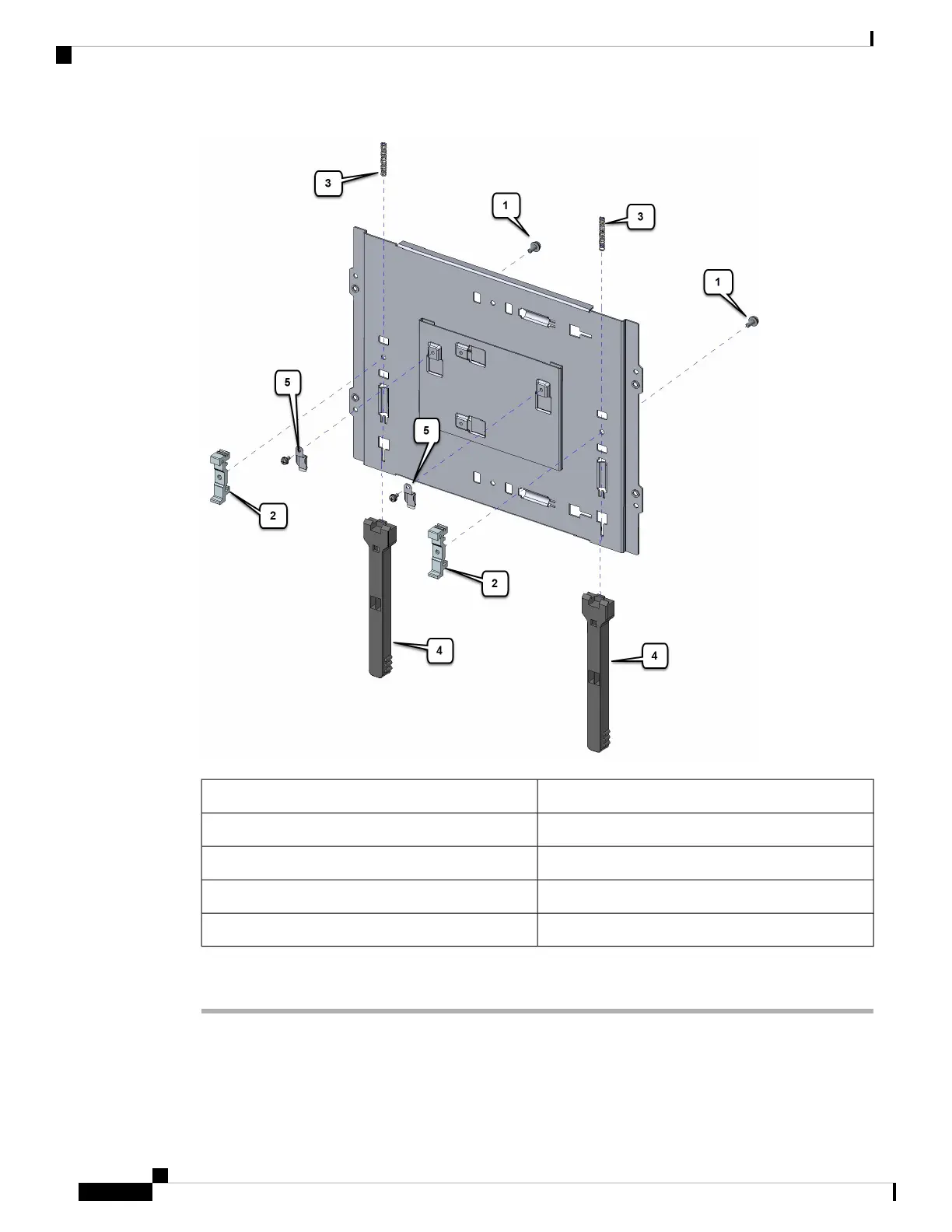

Screws1
DIN rail clamps2
Springs3
Plastic latches4
DIN rail clips5
Procedure
Step 1 Remove the two screws (1) that hold the two DIN rail clamps (2).
Step 2 Slide the DIN rail clamps (2) away from the plastic latches (4) and remove them.
Step 3 Slide the plastic latches (4) off the DIN rail plate, and remove the two springs (3).
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
32
Installing the Router
Bracket Disassembly
