The following are the different types of OBD-II cables depending on the model of vehicle you are installing
the router in.
Table 29: OBD-II Cable Descriptions
OBD-II (J1962) Type A to Router cable with type 1
Y
OBD2-J1962YA-MF4
OBD-II (J1962) Type B to Router cable with type 2
Y
OBD2-J1962YB-MF4
OBD-II (J1939) Type 2 heavy duty diagnostic harness
for Volvo
OBD2-J1939Y2-MF4
OBD-II (J1939) Type 1 to Router cable with type 1
Y
OBD2-J1939Y1-MF4
OBD-II (J1708) to Router cable with type 1 y-splitOBD2-J1708Y-MF4
J1962-VM-Type B Volvo & MackOBD2-J1962VMB-MF4

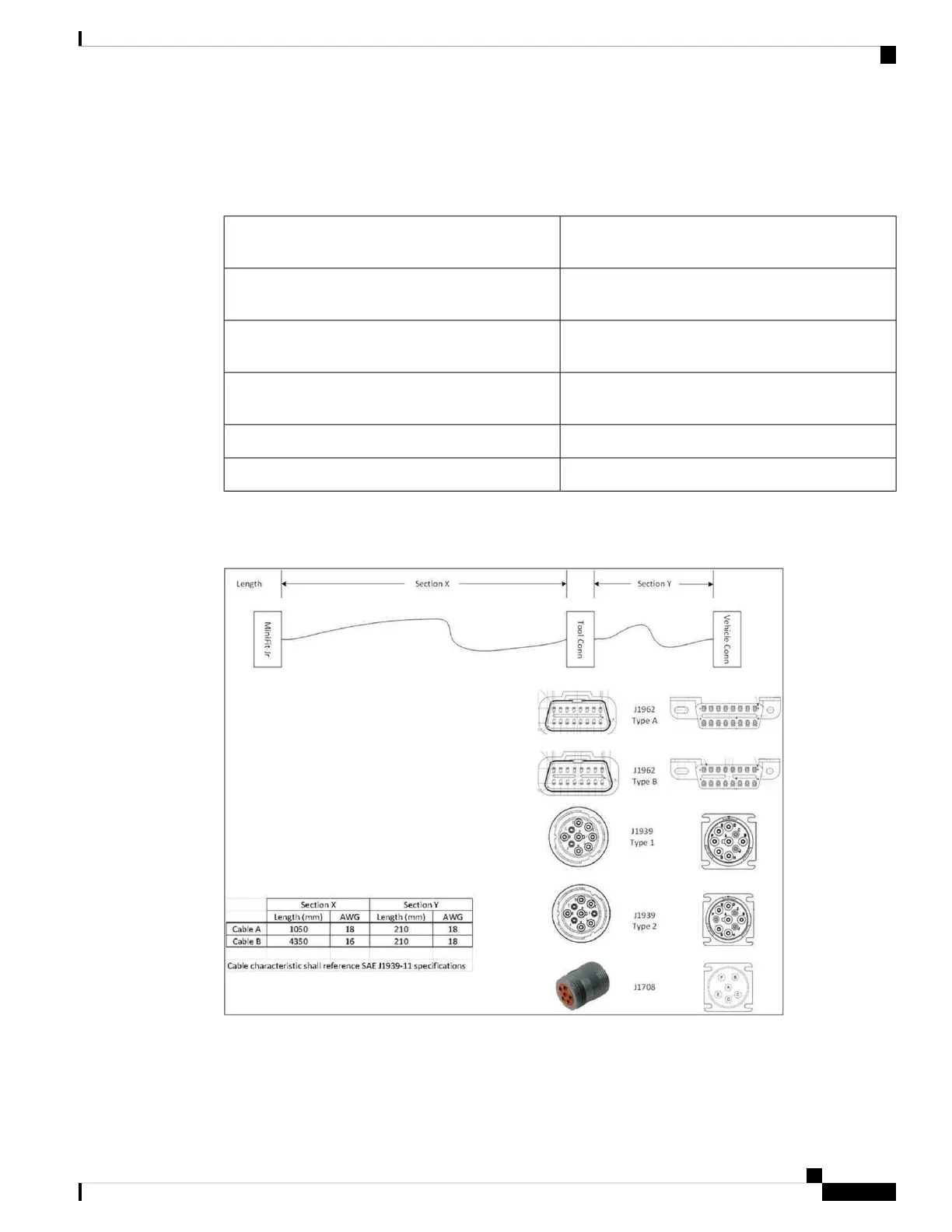

The list of cables is illustrated in the following figure. The box labeled Vehicle Conn is the connector that is
connected to a car or truck. The box labeled Tool Conn is for attaching diagnostic tool. The box labeled
MiniFit-Jr is the connector that connects to the IR1800.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
77
Digital I/O, Ignition, and CAN Bus Connectivity
On-Board Diagnostic (OBD-II)
