Switch
Step 1
Connect one end of the RJ-45 cable to the NME port on the Supervisor PIC.

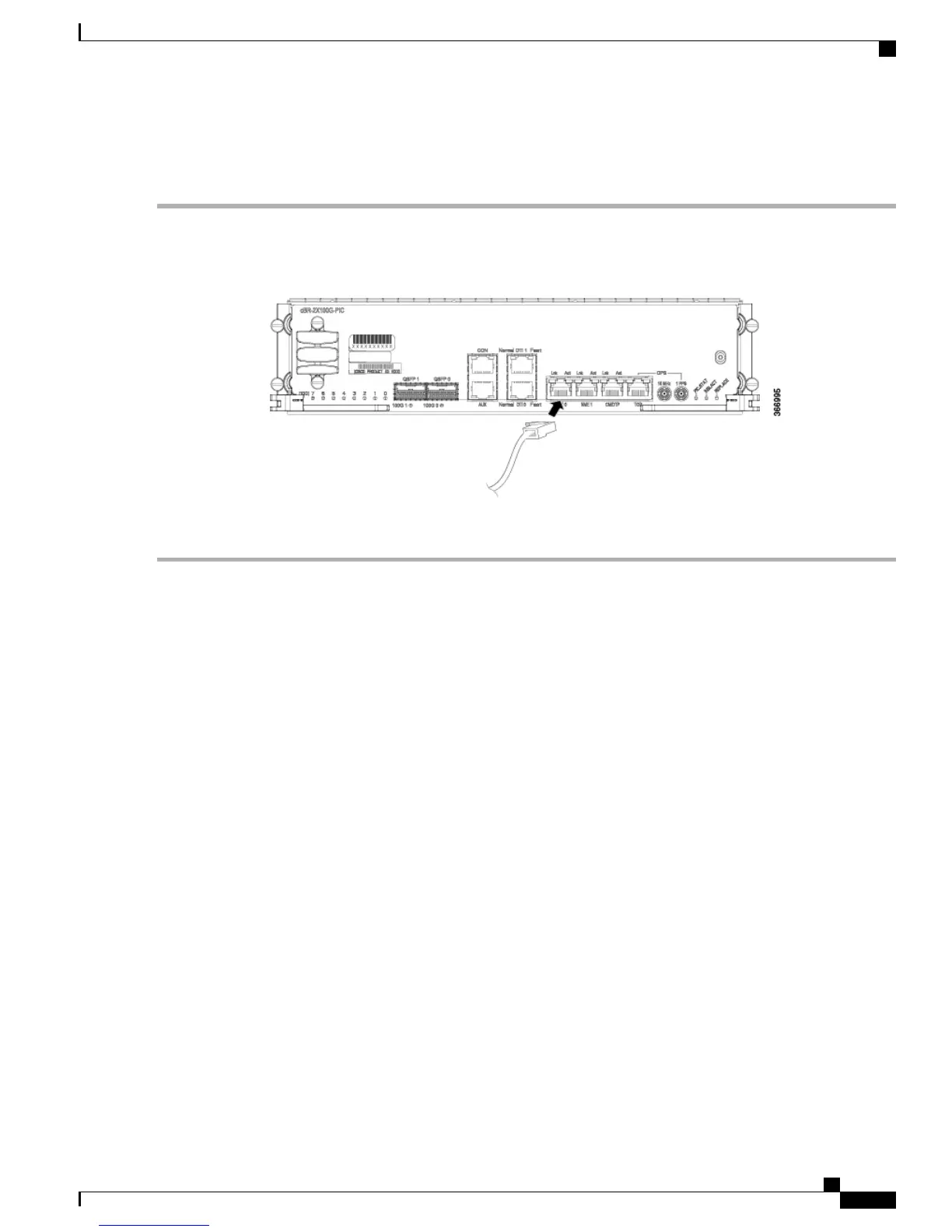

Figure 13: NME Port Connection on the Supervisor PIC
Step 2
Connect the other end of the RJ-45 cable to a switch.
What to Do Next
Route the RJ-45 cable through the Supervisor PIC cable management bracket and chassis-mounted fiber/cable
routing guide.
Using the Console Port on the Supervisor PIC
The console port provides local administrative access to the router and its command-line interface (CLI).
Before You Begin
•
Install the Supervisor PIC.
•
Install the Supervisor Card.
Restrictions
•
Each Supervisor PIC must have a console port connection when running a redundant configuration in
the chassis.
Required Tools and Equipment
•
RJ-45 cable
•
RJ-45-to-DB-9 adapter
Cisco Converged Broadband Routers Hardware Installation Guide
17
Installing the Supervisor in the Cisco cBR Chassis
Using the Console Port on the Supervisor PIC

Cisco cBR Specifications

General

Category	Network Router
Redundancy	Yes
Remote PHY Support	Yes
Remote MACPHY Support	Yes
Operating System	Cisco IOS XE
Interface	RF
Supported Interfaces	Ethernet, RF
Management	SNMP, CLI, Web UI
Product Name	Cisco cBR-8 Converged Broadband Router
Form Factor	Rack-mountable
