Step 1
Open the tethered I/O door on the Supervisor Card by pulling on the left edge of the door until the door is released from
the spring-loaded ejector.

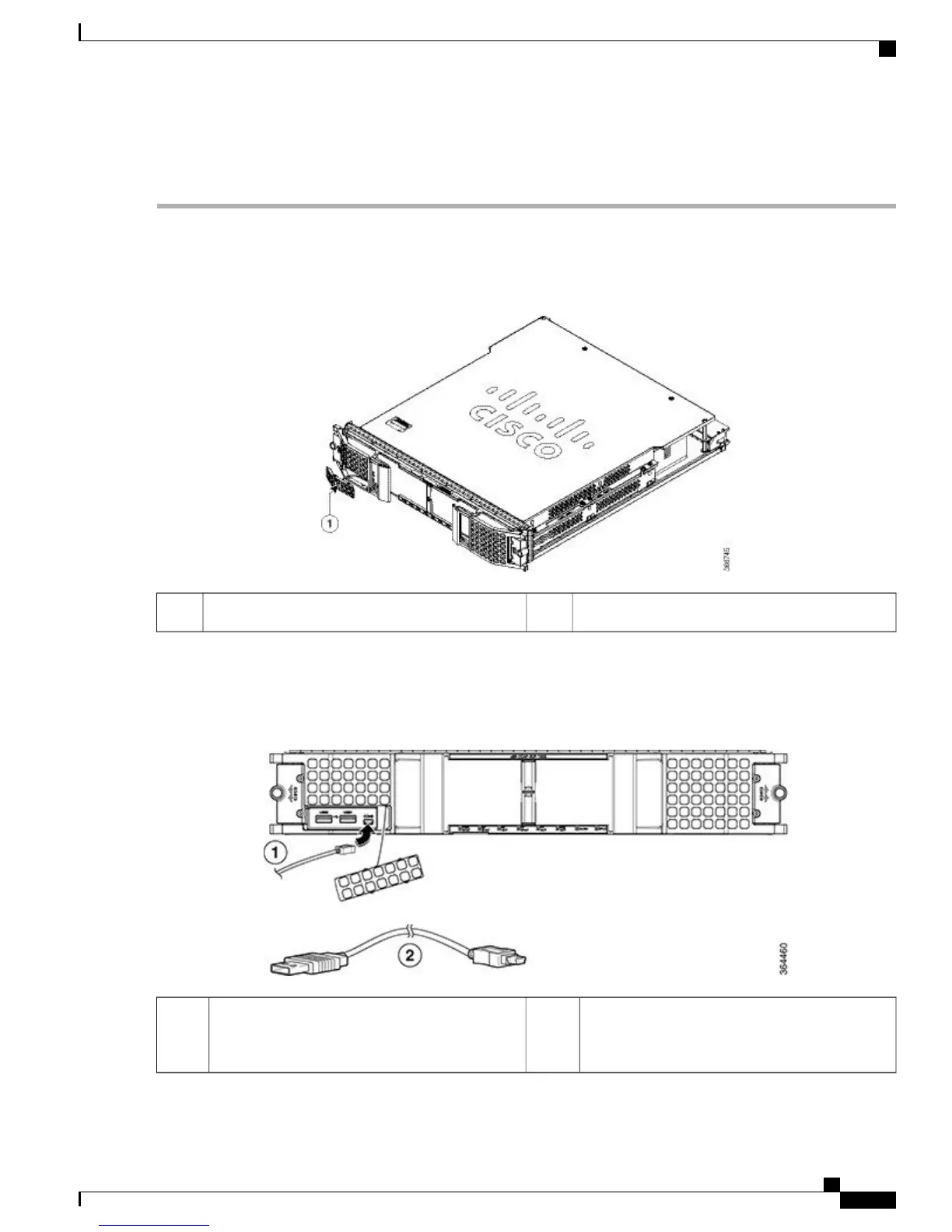

Figure 26: Opening the Tethered I/O Door on the Supervisor Card
—
Tethered I/O door1
Step 2
Connect the mini type-B USB connector of the console cable to the console port on the Supervisor Card.
Figure 27: Console Port Connection on the Supervisor Card
Console cable (with mini type-B USB connector
on one end, and a type-A USB connector on the
other end)
2Mini type-B USB connector1
Cisco Converged Broadband Routers Hardware Installation Guide
29
Installing the Supervisor in the Cisco cBR Chassis
Using the Console Port on the Supervisor Card

Cisco cBR Specifications

General

Category	Network Router
Redundancy	Yes
Remote PHY Support	Yes
Remote MACPHY Support	Yes
Operating System	Cisco IOS XE
Interface	RF
Supported Interfaces	Ethernet, RF
Management	SNMP, CLI, Web UI
Product Name	Cisco cBR-8 Converged Broadband Router
Form Factor	Rack-mountable
