ESD-preventive wrist strap
•
Supervisor PIC
•
Supervisor PIC cable management bracket
•
3/16" flat-blade torque screwdriver
Step 1
Align the captive screws on the Supervisor PIC cable management bracket with the mounting holes on the Supervisor
PIC.
Ensure that the lower slot in the cable management bracket is the smaller slot for fiber-optic cables and the
upper slot is the larger slot for RJ-45 cables.
Important

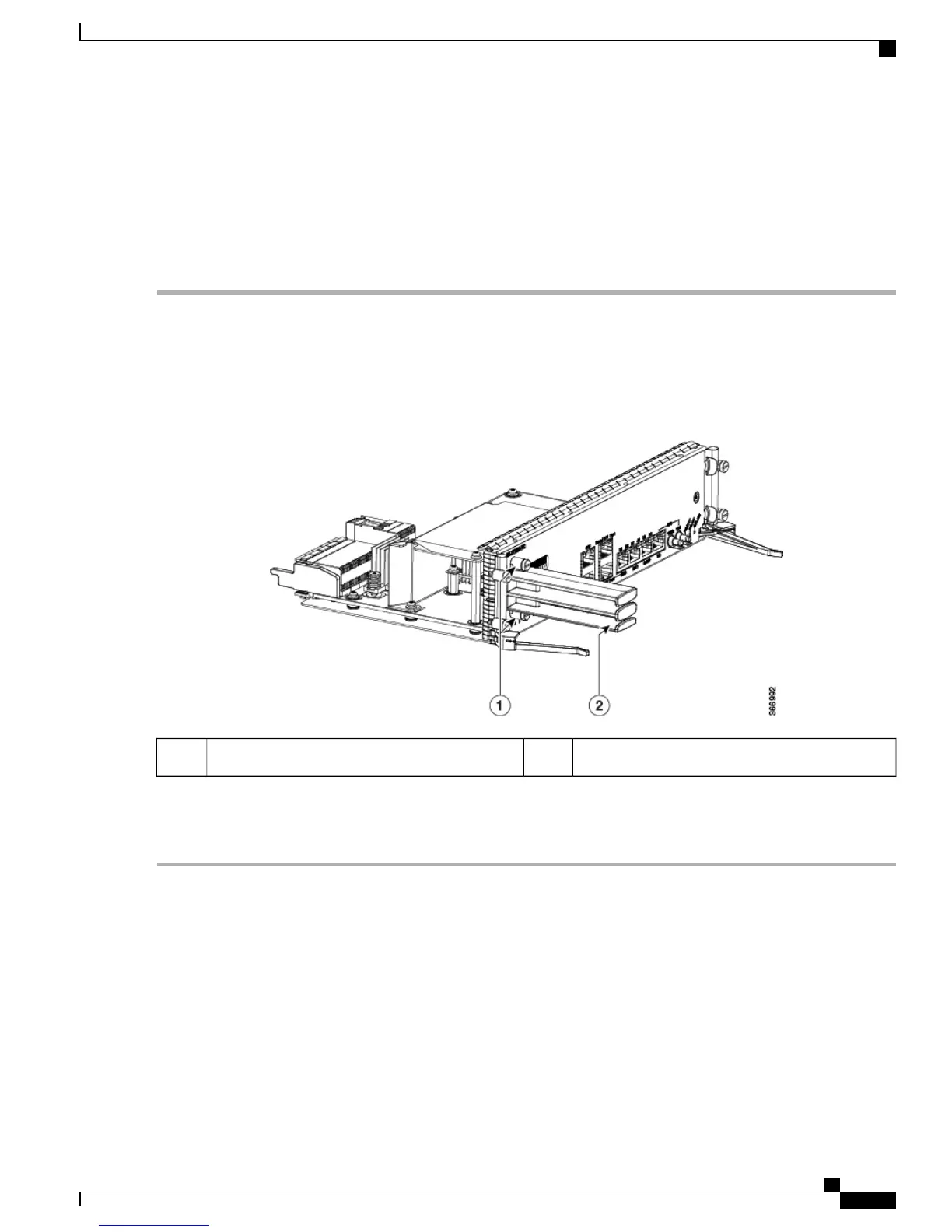

Figure 3: Installing the Supervisor PIC Cable Management Bracket
Supervisor PIC cable management bracket2Captive screws1
Step 2
Tighten the captive screws using a 3/16" flat-blade torque screwdriver with a torque of 6-8 in-lb (0.68-0.90 Nm) to secure
the Supervisor PIC cable management bracket.
What to Do Next
• Install the chassis-mounted fiber/cable routing guide (if not already installed).
•
Route the Supervisor PIC cables through the Supervisor PIC cable management bracket and
chassis-mounted fiber/cable routing guide.
Cisco Converged Broadband Routers Hardware Installation Guide
5
Installing the Supervisor in the Cisco cBR Chassis
Installing the Supervisor PIC Cable Management Bracket

Cisco cBR Specifications

General

Category	Network Router
Redundancy	Yes
Remote PHY Support	Yes
Remote MACPHY Support	Yes
Operating System	Cisco IOS XE
Interface	RF
Supported Interfaces	Ethernet, RF
Management	SNMP, CLI, Web UI
Product Name	Cisco cBR-8 Converged Broadband Router
Form Factor	Rack-mountable
