Using the DTI Ports on the Supervisor PIC
Before You Begin
•
Install the Supervisor PIC.
•
Install the Supervisor Card.
Required Tools and Equipment
•
RJ-45 cable
•
Clock source (DTI server)
Step 1
Connect one end of the RJ-45 cable to the DTI port on the Supervisor PIC.

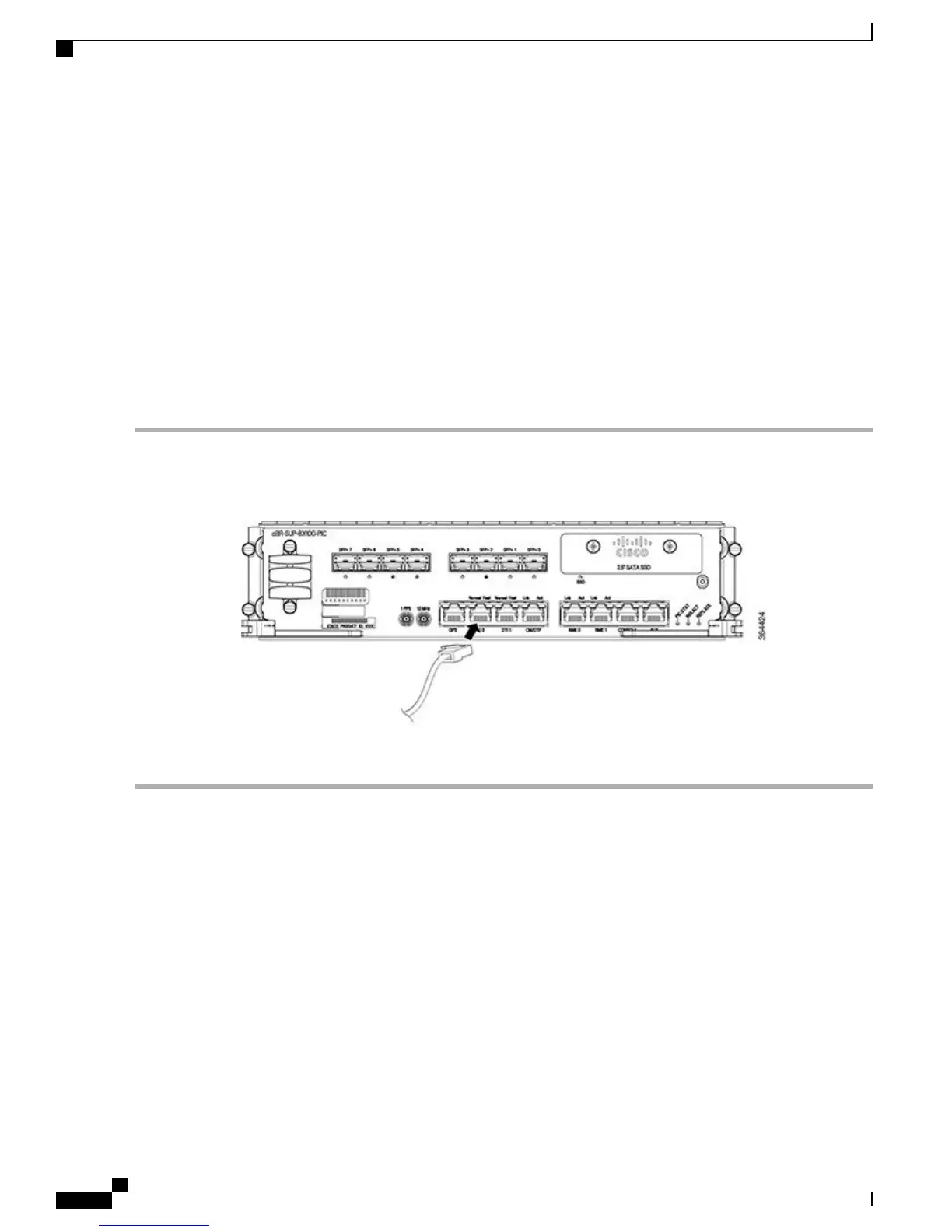

Figure 38: DTI Port Connection on the Supervisor PIC
Step 2
Connect the other end of the RJ-45 cable to the to the DTI server as a reference clock source.
What to Do Next
Route the RJ-45 cable through the Supervisor PIC cable management bracket and chassis-mounted fiber/cable
routing guide.
Using the NME Ports on the Supervisor PIC
Before You Begin
•
Install the Supervisor PIC.
•
Install the Supervisor Card.
Required Tools and Equipment
