Connect a terminal server to the auxiliary port (if required).
Using the Auxiliary Port on the Supervisor PIC
The auxiliary port provides a connection for a terminal server to allow remote access to the router and its
command-line interface (CLI).
Before You Begin
•
Install the Supervisor PIC.
•
Install the Supervisor Card.
Required Tools and Equipment
•
RJ-45 cable
•
RJ-45-to-DB-9 adapter
•
Terminal server
Step 1
Connect one end of the RJ-45 cable to the auxiliary port on the Supervisor PIC.

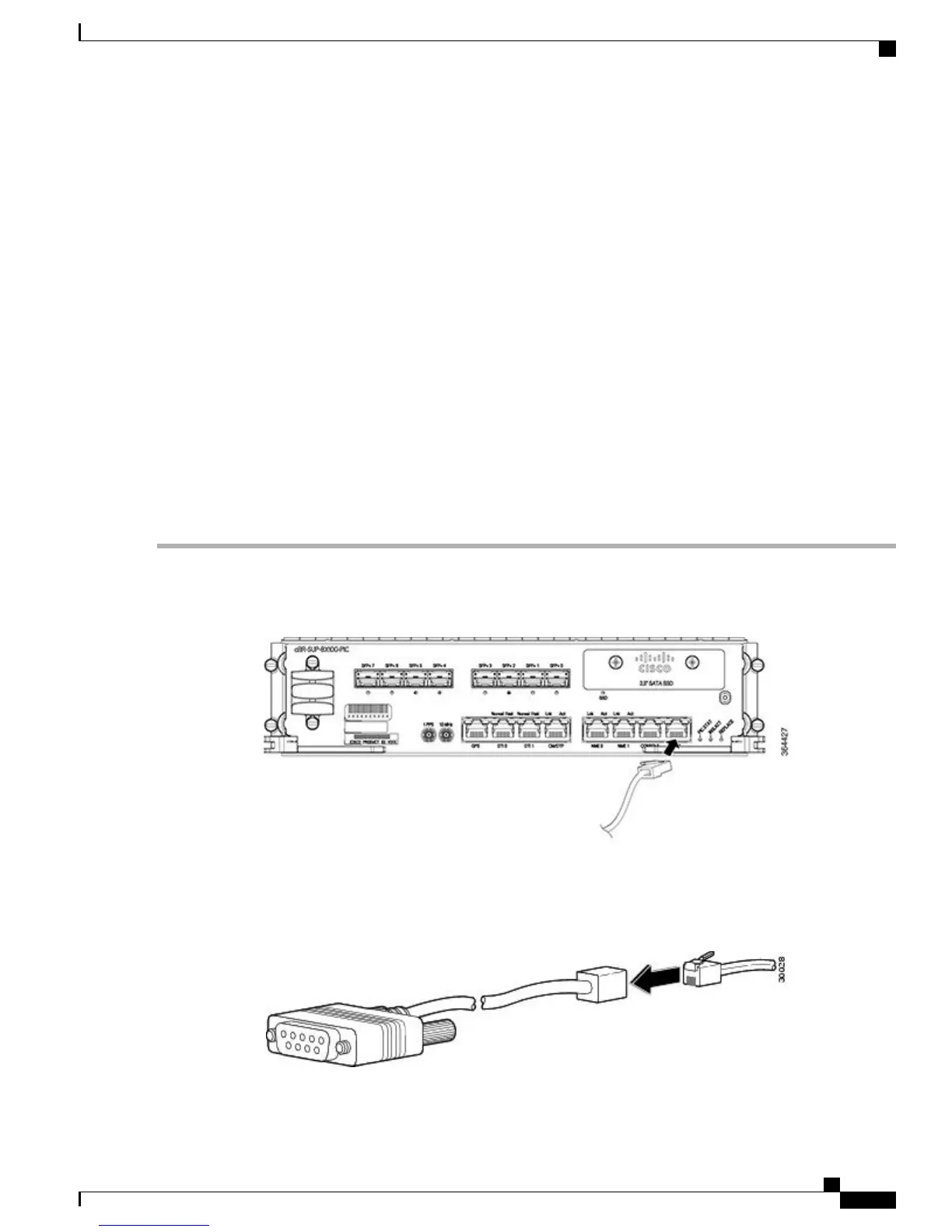

Figure 42: Auxiliary Port Connection on the Supervisor PIC
Step 2
Connect the other end of the RJ-45 cable to the RJ-45-to-DB-9 adapter.
Figure 43: Connecting an RJ-45-to-DB-9 Adapter
