Tethered I/O door1
Step 2
Connect the mini type-B USB connector of the console cable to the console port on the Supervisor Card.

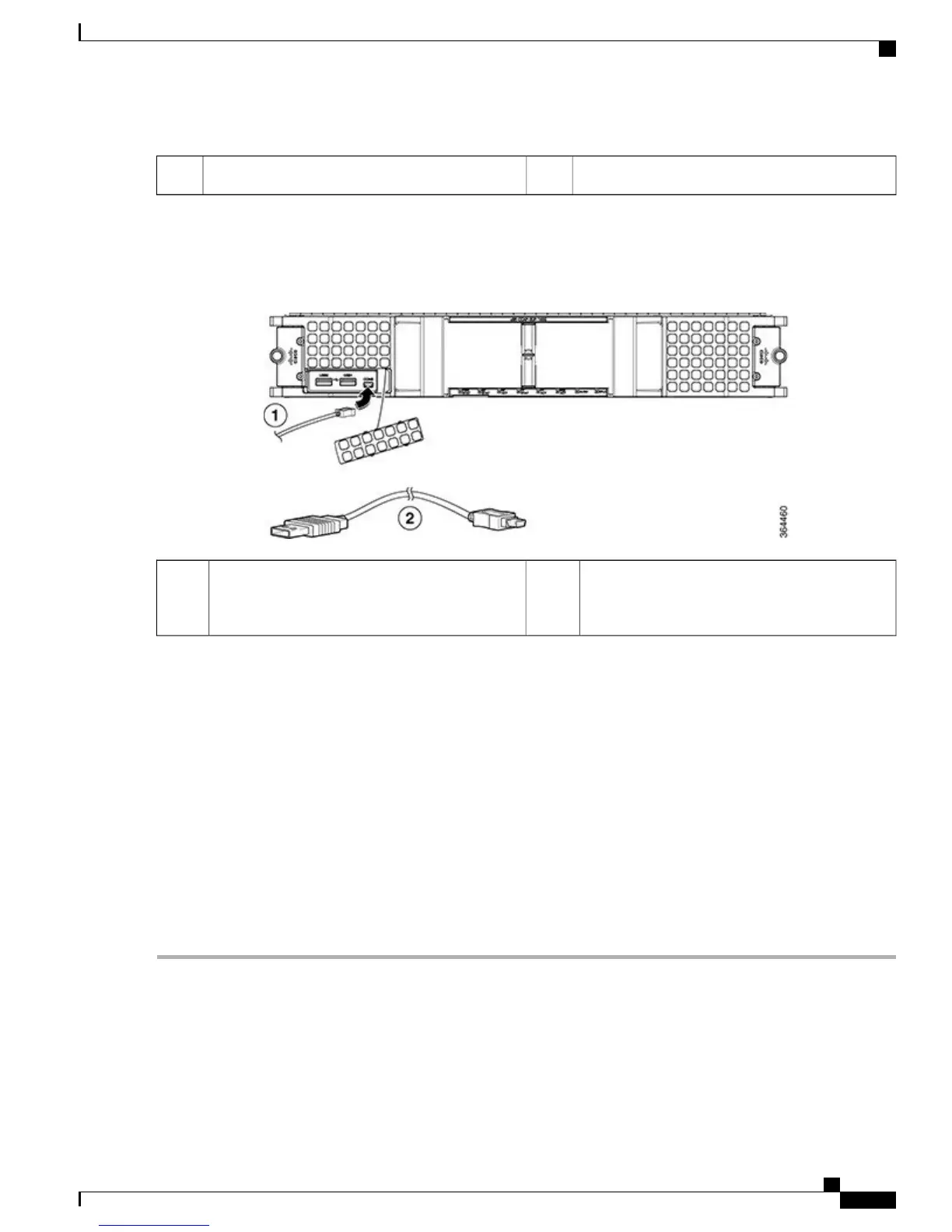

Figure 53: Console Port Connection on the Supervisor Card
Console cable (with mini type-B USB connector
on one end, and a type-A USB connector on the
other end)
2Mini type-B USB connector1
Step 3
Connect the type-A USB connector of the console cable to the Exar XR21V1410 UART with USB interface.
Step 4
Connect the Exar XR21V1410 UART to the appropriate serial port on the PC or terminal using a cable with type-A USB
connector on one end and DB-9 connector on the other end.
Step 5
Power up the PC or terminal.
Step 6
Configure the PC terminal emulation software or the terminal with the following settings:
•
9600 baud
•
8 data bits
•
No parity generation or checking
•
1 stop bit
•
No flow control
