Cisco CW9164I-ROW - Preinstallation Checks and Installation Guidelines

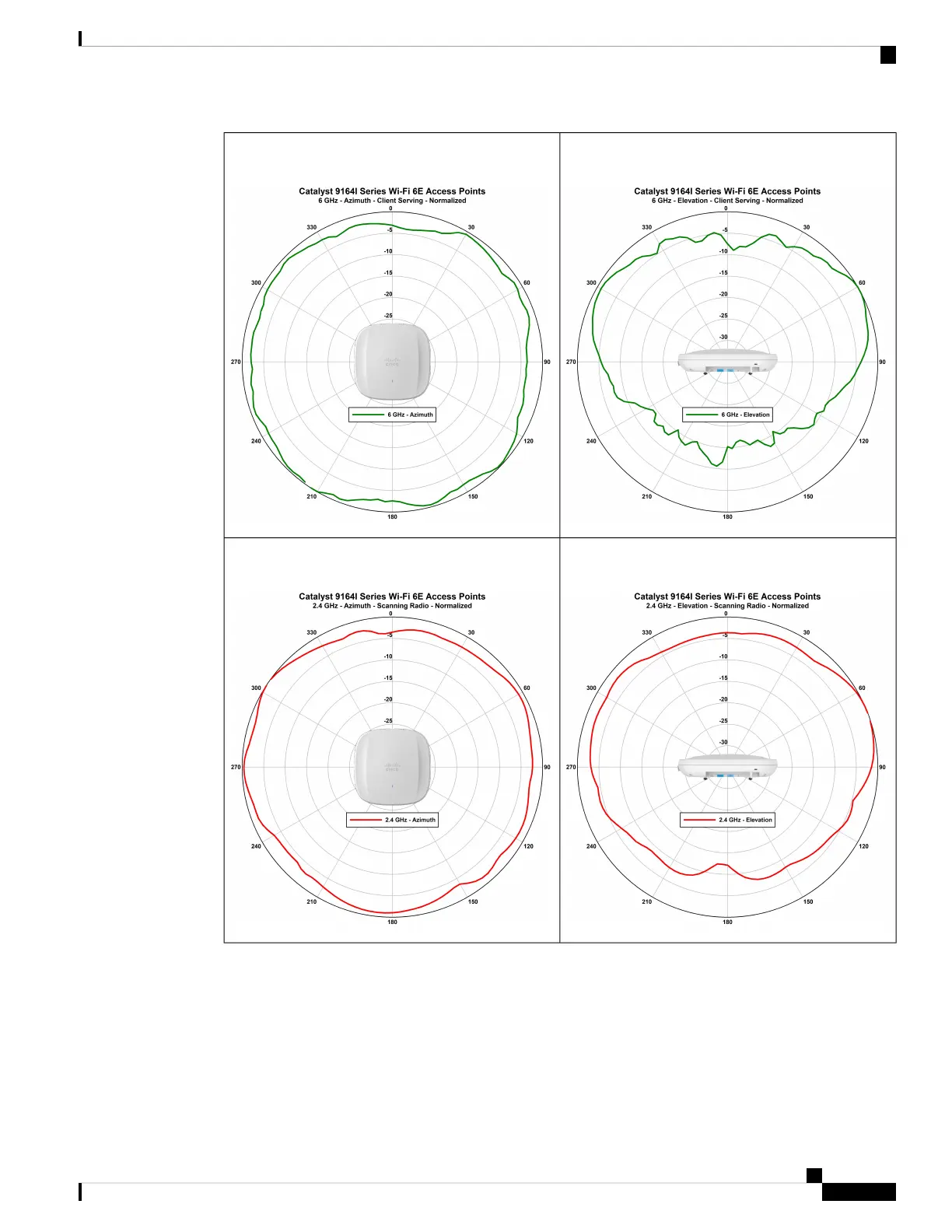

Figure 8: CW9164I - Client-Serving Normalized Radiation Pattern
(6-GHz Elevation)
Figure 7: CW9164I - Client-Serving Normalized Radiation Pattern
(6-GHz Azimuth)
Figure 10: CW9164I - Scanning Radio-Normalized Radiation Pattern
(2.4-GHz Elevation)
Figure 9: CW9164I - Scanning Radio-Normalized Radiation Pattern
(2.4-GHz Azimuth)
Cisco Catalyst Wireless 9164I Series Wi-Fi 6E Access Point Hardware Installation Guide
11
Hardware Features
CW9164I (Internal Antenna) Radiation Patterns
