22 4021196 Rev B

How Do I Mount the Modem on a Wall? (Optional)

Location and Dimensions of the Wall-Mounting Slots

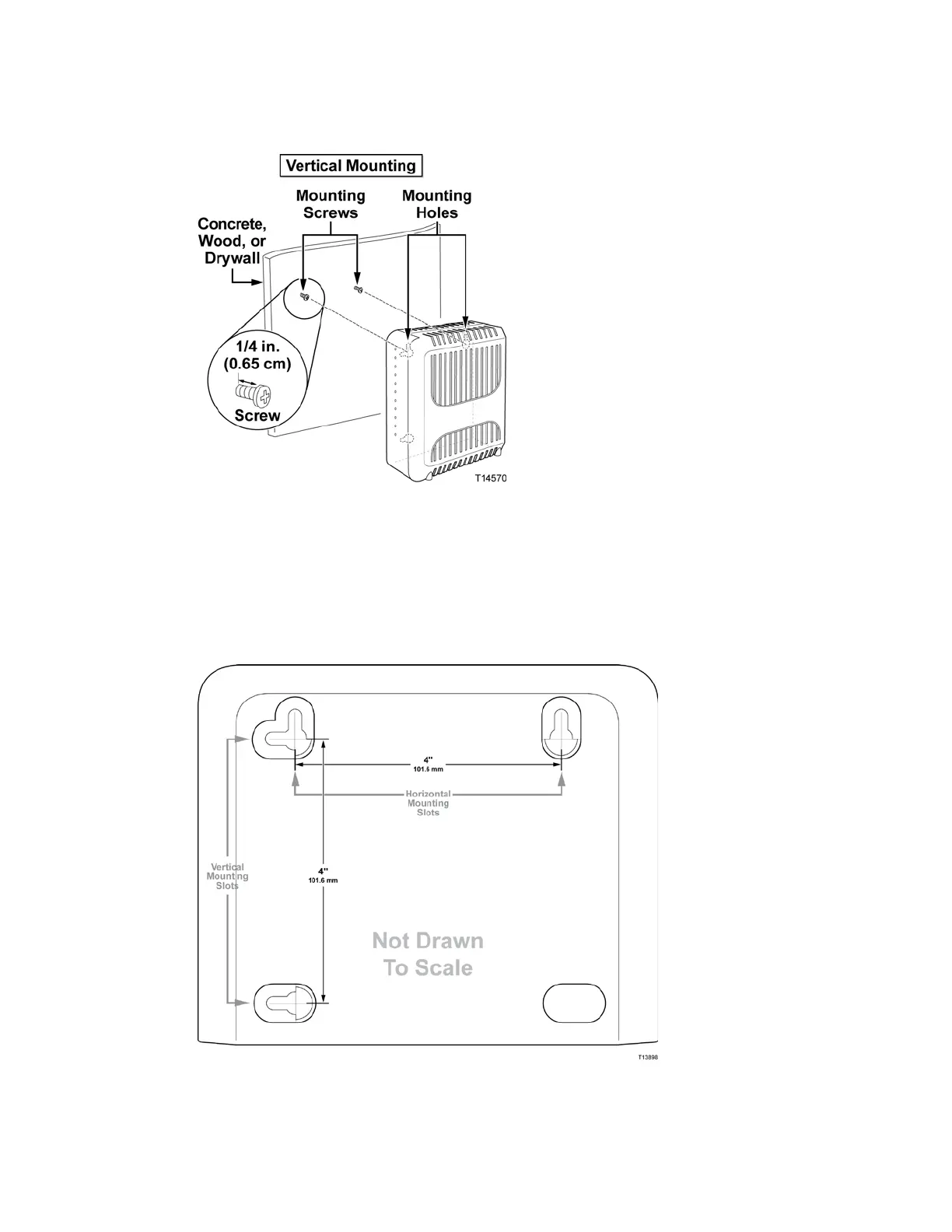

The following illustration shows the location and dimensions of the wall-mounting

slots on the bottom of the modem. Use the information on this page as a guide for

mounting your modem to the wall.
