Cisco EPC3825 User Manual

76 4021196 Rev A

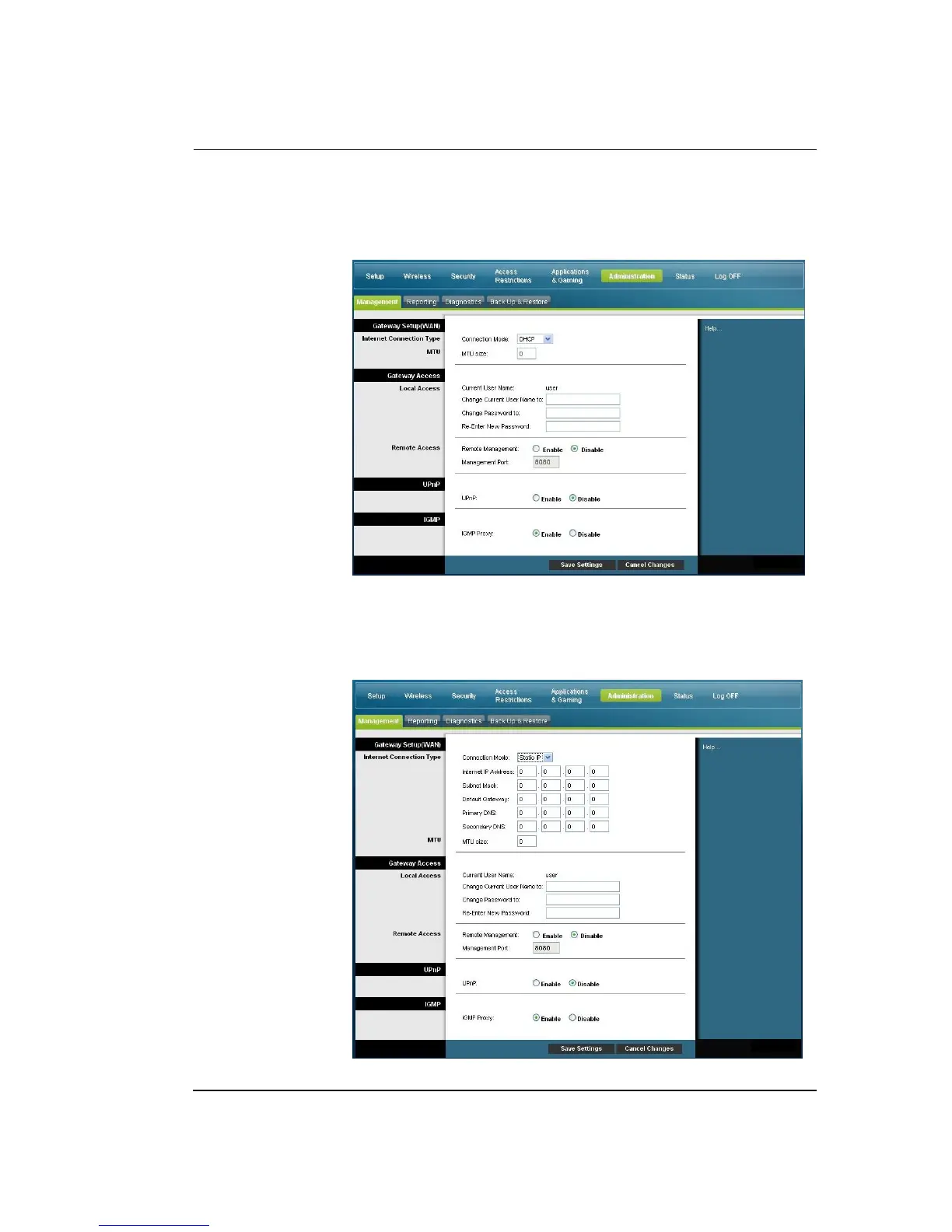

Manage the Gateway
Field Description
Gateway Setup
(WAN)
Internet Connection
Type
Connection Mode This setting allows you to determine how the
WAN (or gateway interface to the Internet) obtains its IP address.
DHCP (factory default)
Allows the gateway to obtain a public IP address automatically
Static IP
Allows you to specify the WAN IP address and corresponding
server information as static or fixed values that will be used
whenever the gateway goes online

Cisco EPC3825 Specifications

General

Model	EPC3825
Category	Gateway
DOCSIS	3.0
Downstream Channels	8
Upstream Channels	4
Wireless Standard	802.11b/g/n
Ethernet Ports	4
Telephony Ports	2
Max Upstream Speed	120 Mbps
Wireless Speed	Up to 300 Mbps
Ethernet Port Speed	10/100/1000 Mbps
USB Ports	1
Security Features	WPA, WPA2
