Cisco EPC3925 User Manual

4021192 Rev B 45
Configure Wireless Settings
Section
Field Description

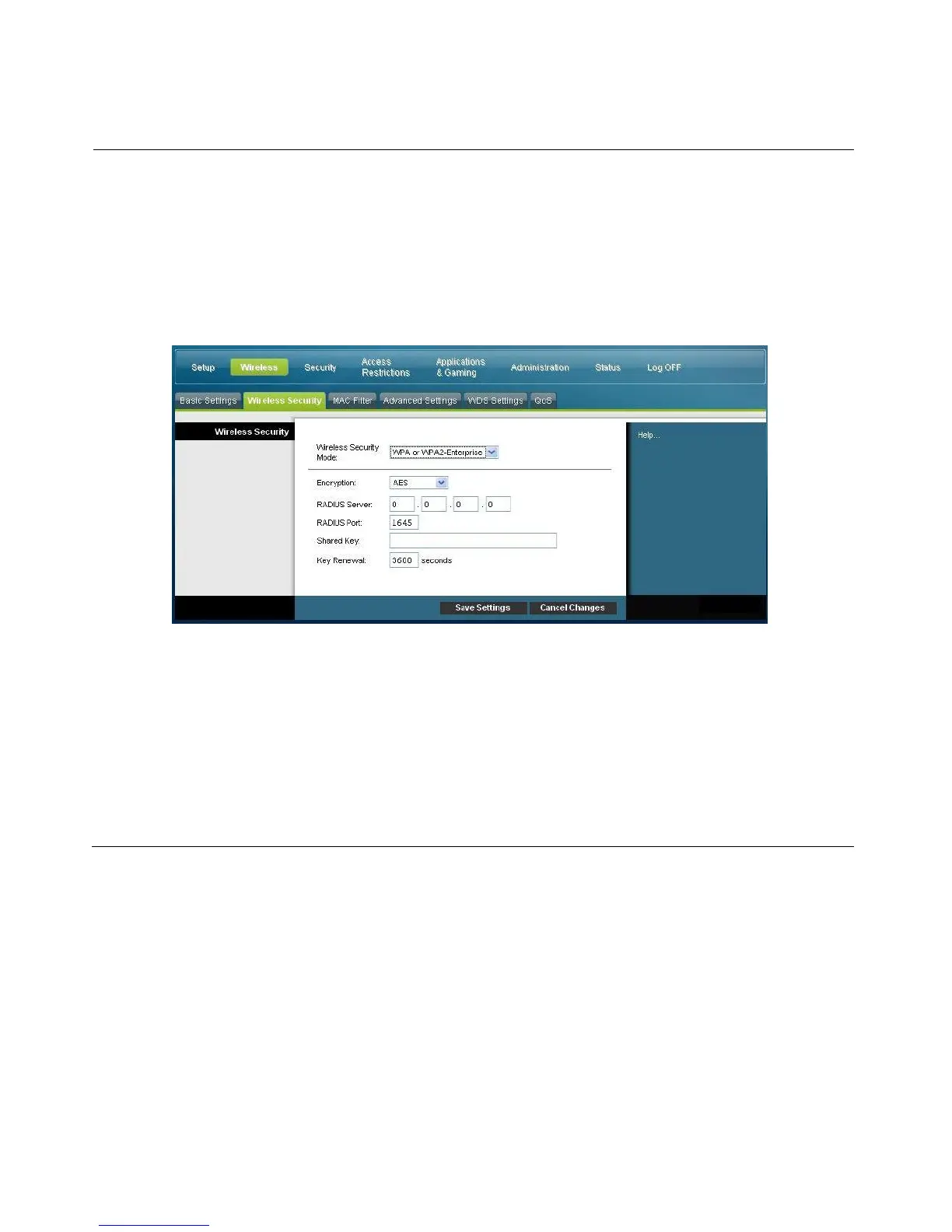

Security for Enterprise Networks - WPA-Enterprise Modes
This option features WPA used in coordination with a RADIUS server for client authentication.
(This should only be used when a RADIUS server is connected to the device.)
Select from one of the following three WPA or WPA2 Enterprise modes:
 WPA-Enterprise
 WPA2-Enterprise
 WPA or WPA2-Enterprise
Field Descriptions
 Encryption. The default is TKIP+AES.
 RADIUS Server. Enter the RADIUS server's IP address.
 RADIUS Port. Enter the port number used by the RADIUS server. The default is 1812.
 Shared Key. Enter the key used by the device and RADIUS server.
 Key Renewal. Enter a Key Renewal period, which instructs the device how often it should
change encryption keys. The default is 3600 seconds.

Cisco EPC3925 Specifications

General

Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi	Yes
Modulation	128-QAM, 16-QAM, 32-QAM, 64-QAM, 8-QAM, QPSK
Frequency band	2.4 GHz
Networking standards	IEEE 802.11n
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Input current	1.5 A
Input voltage	15 V
Input frequency	50/60 Hz
Power requirements	230 VAC
Power consumption (typical)	17 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Voice codecs	G.711, G.723, G.726, G.728, G.729, G.729A

Weight and Dimensions

Weight	430 g
Dimensions (WxDxH)	176 x 145 x 45 mm
