Cisco Expressway CE1000 Appliance User Manual

Configuring
Before you can use the Cisco Expressway, you must configure its IPv4 and/or IPv6 address, subnet mask
and default gateway. Consult your network administrator for information on which addresses to use. Note
that the Cisco Expressway must use a static IP address.
This section describes how to connect to the Cisco Expressway and perform the initial configuration.
Connecting to the Cisco Expressway
Before you can use the Cisco Expressway, you must configure its IPv4 and/or IPv6 address, subnet mask
and default gateway. Consult your network administrator for information on which addresses to use. Note
that the Cisco Expressway must use a static IP address.
Note: an additional IPaddress is required if the CIMC(Cisco Integrated Management Controller) tool is used.
It can be a static IP address or assigned via DHCP.
This initial configuration can be done:
n by connecting from a PC to the Cisco Expressway using a serial cable (see Connecting via the serial port
[p.8] followed by Configuring the Cisco Expressway [p.9]).
n by connecting a monitor and keyboard directly into the unit (see Connecting via the KVM port [p.9] followed
by Configuring the Cisco Expressway [p.9]).
n if your network is set up to allow it, by connecting using a web browser to the default IP address of
192.168.0.100 (see Using the web interface [p.10]).

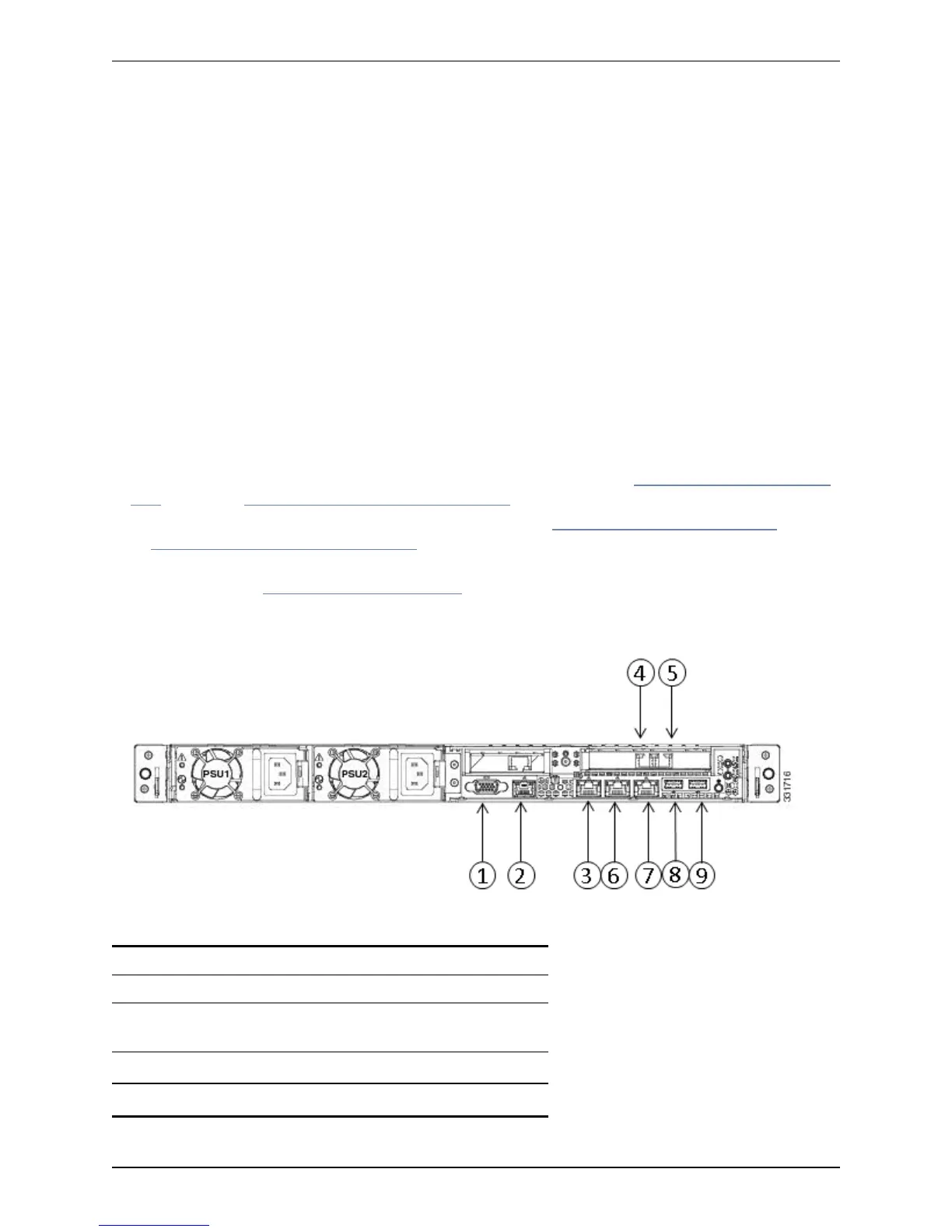

Figure 1: Rear panel showing ports.
The rear panel ports are:
1 VGAport
2 Serial port
3 Dedicated management port (can be used for CIMCin the
future)
4 LAN 1 (left-hand SFPport)
5 LAN 2 (right-hand SFPport)
