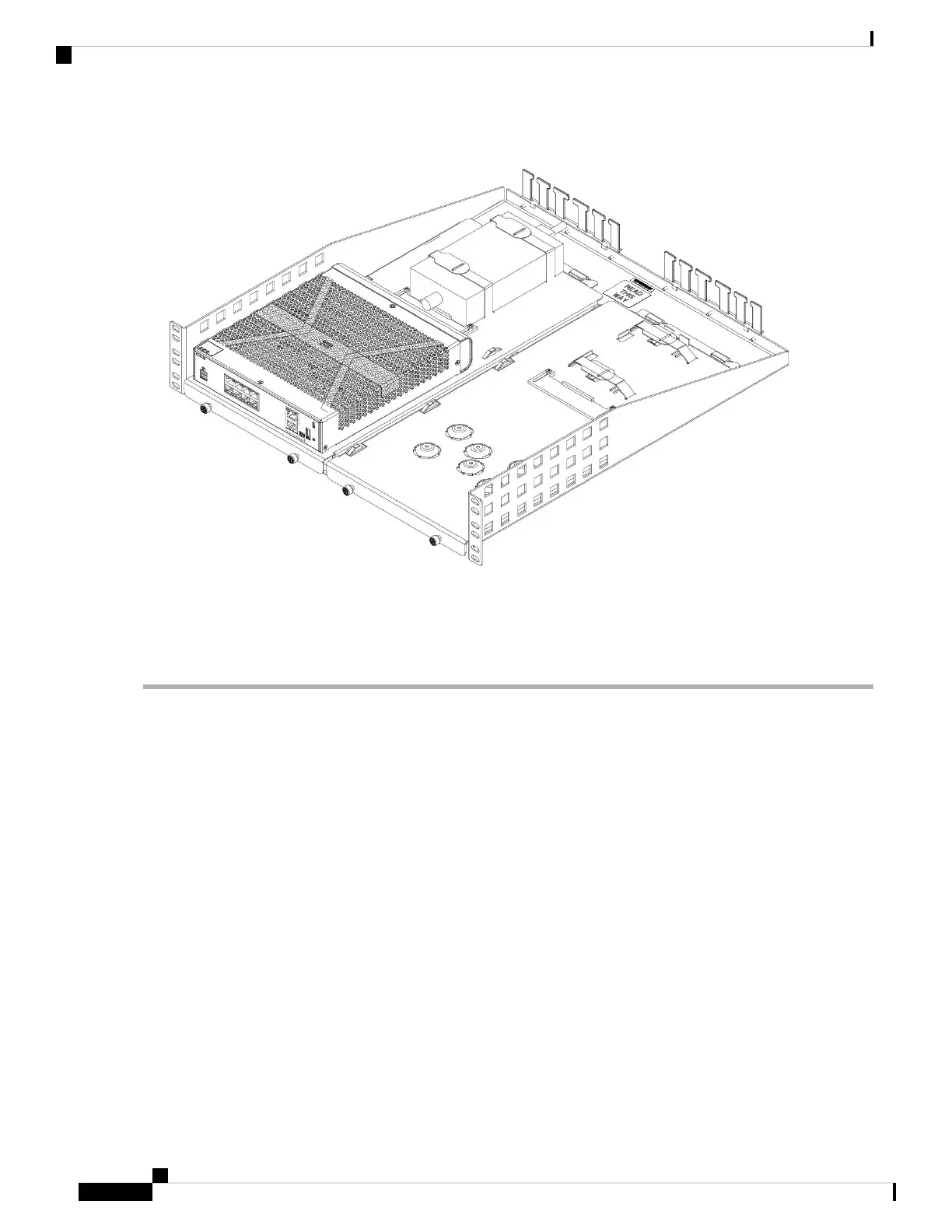

Figure 33: Completed Rack Shelf/Tray Installation
Step 10 Install the sliding-rack tray into your rack using the correct screws (12-24 x 0.75 inch or 10-32 x 0.75 inch) from the
rack-mount kit that fit your rack type.
You can now attach your power supply cord and run it through the cable guides.
What to do next
Install the cables according to your default software configuration as described in the Cisco Firepower 1010
Getting Started Guide.
Cisco Firepower 1010 Hardware Installation Guide
36
Mount the Chassis
Rack-Mount the Chassis
