Cisco Firepower 2100 Series User Manual

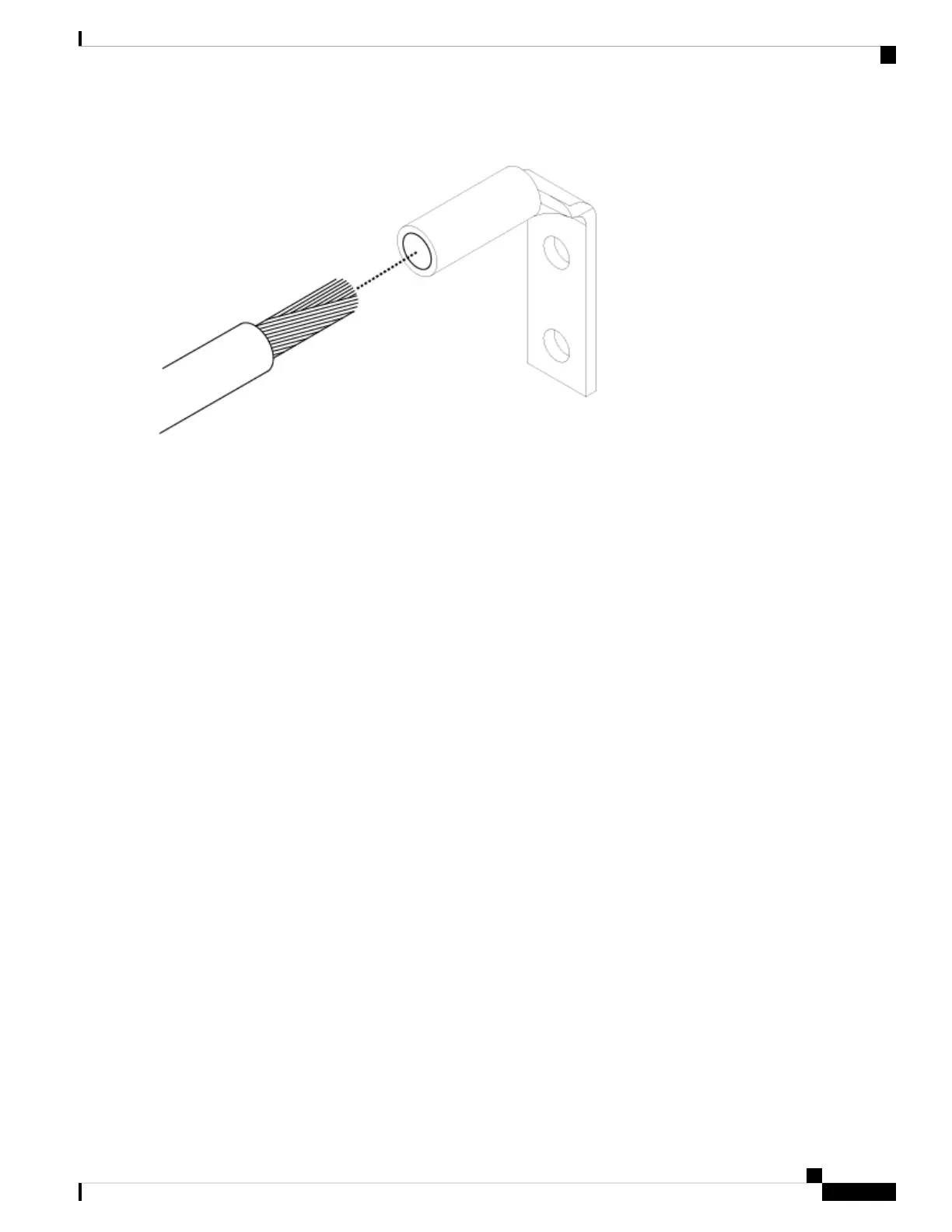

Figure 9: Insert the Cable into the Grounding Lug
Step 3 Use the crimping tool to secure the grounding cable in the grounding lug.
Step 4 Remove the adhesive label from the grounding pad on the chassis.
Step 5 Place the grounding lug against the grounding pad so that there is solid metal-to-metal contact, and insert the two screws
with washers through the holes in the grounding lug and into the grounding pad.
Rack-Mount and Ground the Chassis
11
Rack-Mount and Ground the Chassis
Ground the Chassis
