Cisco Firepower 2110 Hardware Installation Guide

Ethernet Link
• Green—The link partner is detected;
no activity.
• Green, flashing—Network activity is
detected.
12SSD2 Alert Status
• Off—SSD has normal activity.
• Amber—SSD failure.
11
Fiber Port
• Green—Port is enabled, the link
partner is detected.
• Amber—Port is enabled, but the link
partner is not detected.
• Green, flashing—Port is enabled;
network activity is detected.
14Ethernet Speed
• Green, flashing—The number of
flashes determines link speed; 1
flash=10 Mbit, 2=100 Mbit, 3=1 Gbit.
13
Rear Panel
The following figure shows the rear panel of the Firepower 2110 and 2120.

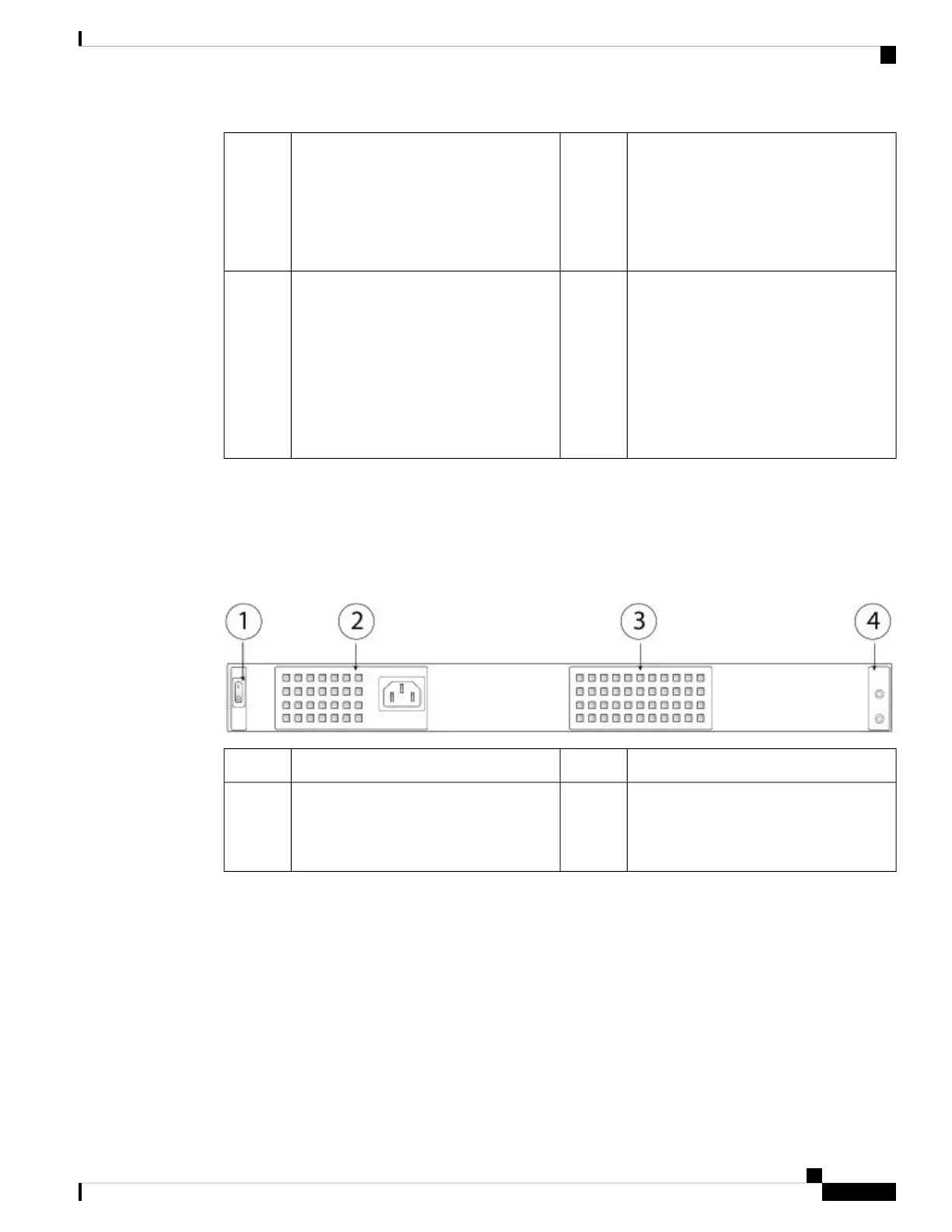

Figure 10: Firepower 2110 and 2120 Rear Panel
Fixed power supply module2Power on/off switch1
2-post grounding lug
The 2-post grounding lug is
included in the accessory kit.
Note
4Fixed fans3
The following figure shows the rear panel of the Firepower 2130 and 2140.
Cisco Firepower 2100 Series Hardware Installation Guide
15
Overview
Rear Panel

Cisco Firepower 2110 Specifications

General

Rack Units	1 RU
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	10% to 90% non-condensing
Maximum Concurrent Sessions	2, 000, 000
AVC Throughput	2.2 Gbps
Interfaces	8 x 1G, 2 x 10G SFP+
Power Supply	AC
Dimensions (H x W x D)	1.72 x 17.3 x 16.5 in
Storage Temperature	-4°F to 149°F (-20°C to 65°C)
