Cisco Firepower 2110 Hardware Installation Guide

• Phillips head screwdriver
• One slide rail kit that contains the following:
The slide rail kit ships with the Firepower 2130/2140. You can order it for the
Firepower 2110/2120.
Note
• Left and right slides rails with two M3x6 mm wafer-head screws
• Two slide rail locking brackets with six 8-32 x .25-in. screws
• (Optional) Two cable management brackets with four 8-32 x 0.375-in. screws
Slide rail assemblies work with four-post racks and cabinets with square slots, round 7.1mm holes, #10-32
threaded holes, and #12-24 threaded holes on the rack post front. The slide rail works with front to back
spacing of rack posts from 24 to 36 inches.
Step 1 Attach the slide-rail locking brackets to each side of the chassis using the six 8-32 x .375-in. countersink Phillips head
screws (three per side).

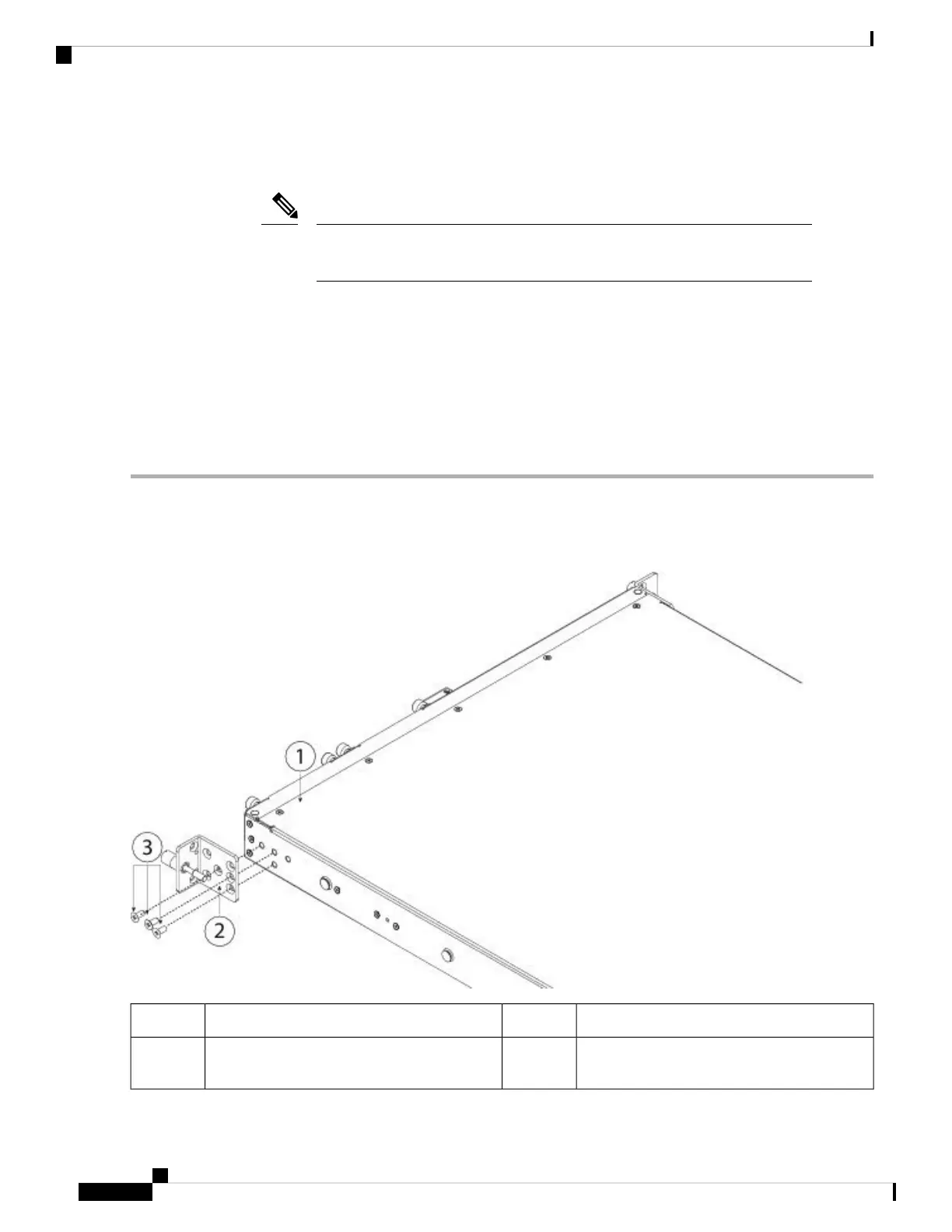

Figure 35: Attach the Slide-Rail Locking Bracket to the Side of the Chassis
Slide-rail locking bracket2Chassis1
8-32 x 0.25-in. countersink Phillips head screws
(3 per side)
3
Cisco Firepower 2100 Series Hardware Installation Guide
50
Mount and Connect
Rack-Mount the Chassis Using Slide Rails

Cisco Firepower 2110 Specifications

General

Rack Units	1 RU
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	10% to 90% non-condensing
Maximum Concurrent Sessions	2, 000, 000
AVC Throughput	2.2 Gbps
Interfaces	8 x 1G, 2 x 10G SFP+
Power Supply	AC
Dimensions (H x W x D)	1.72 x 17.3 x 16.5 in
Storage Temperature	-4°F to 149°F (-20°C to 65°C)
