Cisco Firepower 2110 Hardware Installation Guide

Statement 1025—Use Copper Conductors Only
Use copper conductors only.
Warning
After rack-mounting and grounding the Firepower 2100, follow these steps to connect cables, turn on power,
and verify connectivity.
The following figure shows the default configuration using a management computer connected to the inside
network. Your deployment may vary depending on your basic logical network connectivity, ports, addressing,
and configuration requirements.
Note

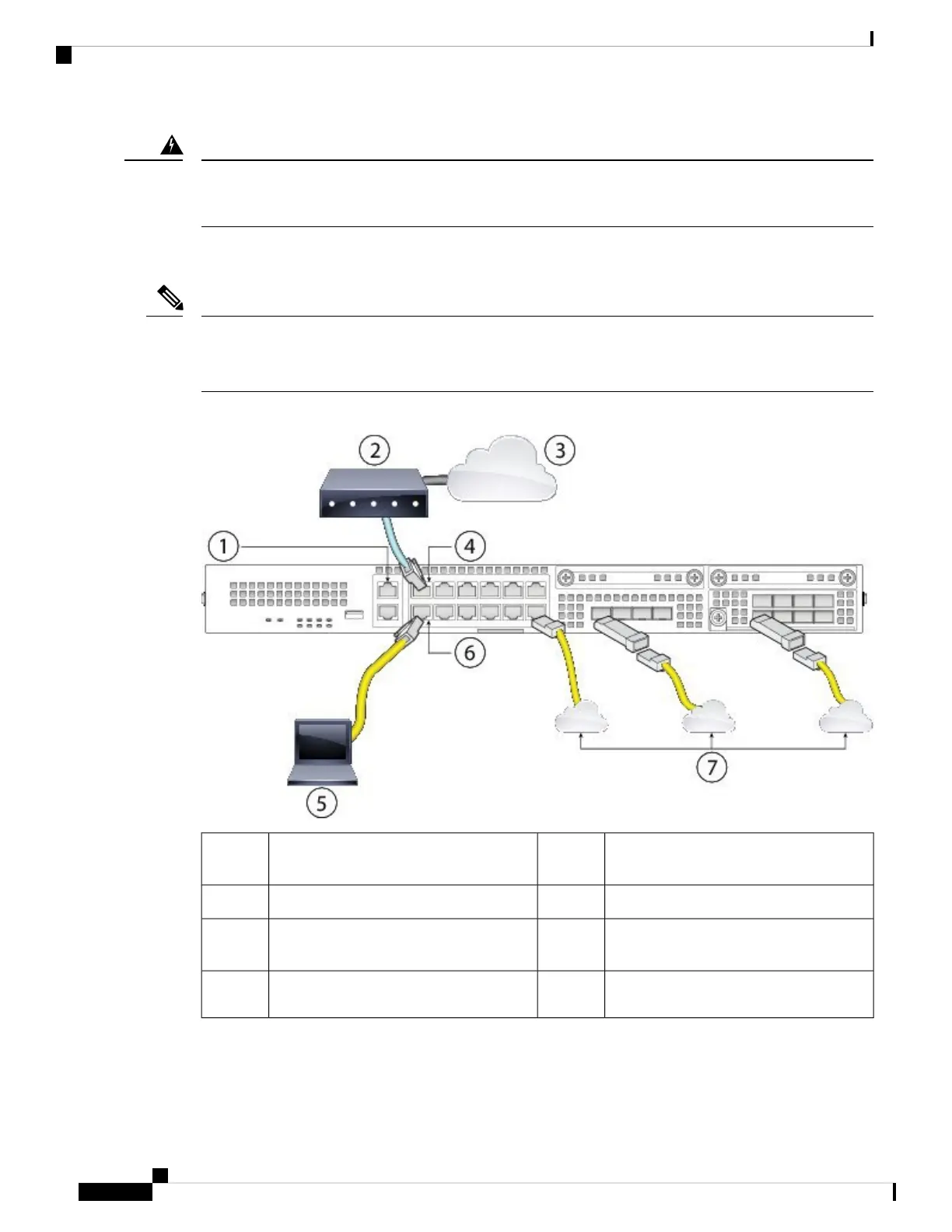

Figure 43: Connect Cables to Firepower 2100 Interfaces
WAN modem2(Alternative) Management 1/1
192.168.45.45
1
Ethernet 1/1 (outside, DHCP from modem)4Internet3
Ethernet 1/2 (inside 192.168.1.1)6Management computer (DHCP from inside
192.168.1.x)
5
Other data networks (SFP/SFP+
transceivers)
7
Cisco Firepower 2100 Series Hardware Installation Guide
58
Mount and Connect
Connect Cables, Turn on Power, and Verify Connectivity for Cisco Firepower Threat Defense

Cisco Firepower 2110 Specifications

General

Rack Units	1 RU
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	10% to 90% non-condensing
Maximum Concurrent Sessions	2, 000, 000
AVC Throughput	2.2 Gbps
Interfaces	8 x 1G, 2 x 10G SFP+
Power Supply	AC
Dimensions (H x W x D)	1.72 x 17.3 x 16.5 in
Storage Temperature	-4°F to 149°F (-20°C to 65°C)
