Do not strip more than the recommended length of wire because doing so could leave the wire exposed from
the terminal block.
Note

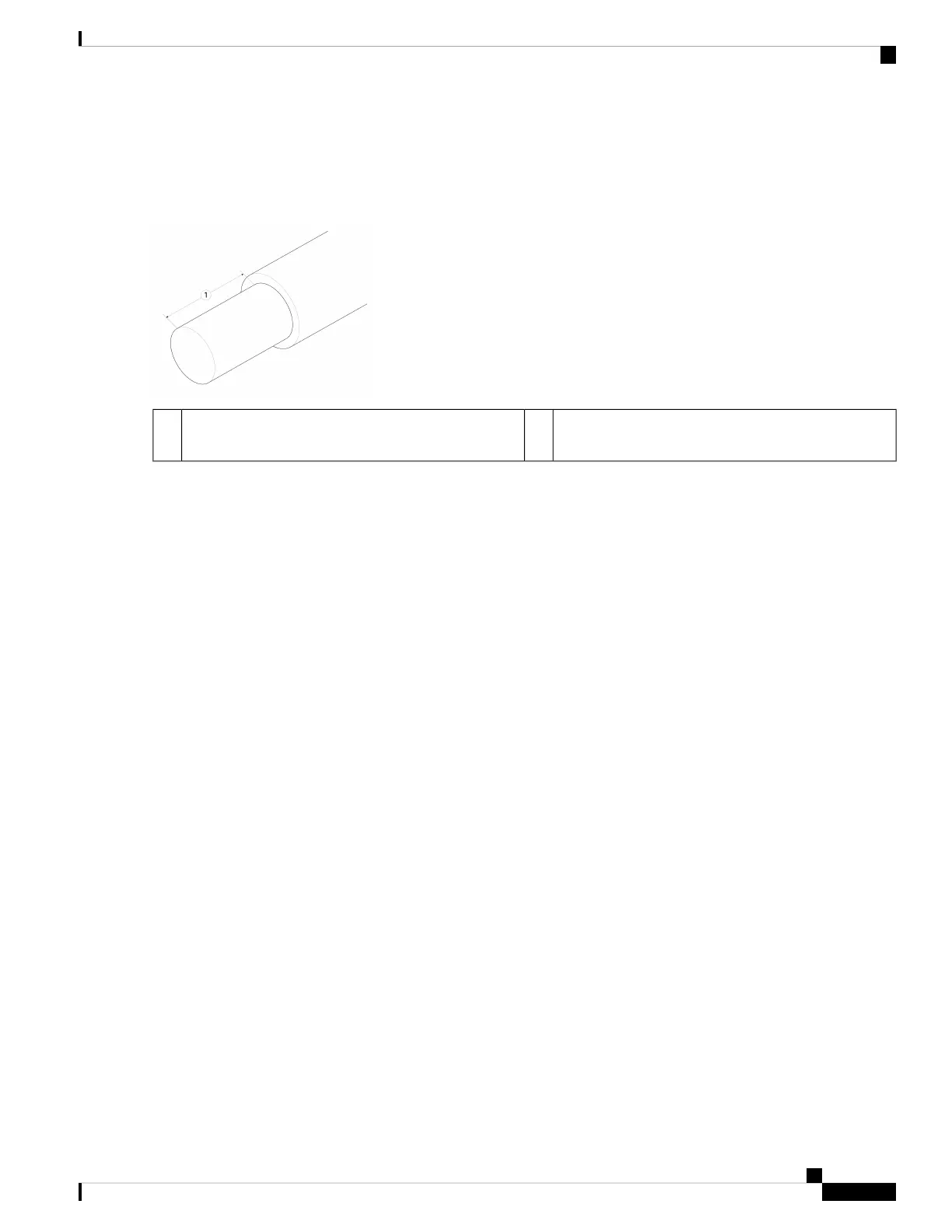

Figure 5: Stripped DC Input Source Wire
—Strip the wires to approximately 0.39 inch (10 mm) +
0.02 inch (0.5 mm)
1
Step 4 Insert the exposed wire into the terminal block. Make sure that you cannot see any wire lead outside the plastic cover.
Only wires with insulation should extend from the terminal block.
Step 5 Use a screwdriver to tighten the terminal block captive screws.
Do not over torque the terminal block captive screws. Make sure that the connection is snug, but the wire is
not crushed. Verify by tugging lightly on each wire to make sure that they do not move.
Caution
Installation, Maintenance, and Upgrade
13
Installation, Maintenance, and Upgrade
Connect the DC Power Supply Module
