Cisco Firepower 2130

Function
Destination Network
(Physical Interface Name)Source NetworkNetwork Adapter
DiagnosticDiagnostic0/0Diagnostic0-0Network adapter 2
Outside dataGigabitEthernet0/0GigabitEthernet0-0Network adapter 3
Inside dataGigabitEthernet0/1GigabitEthernet0-1Network adapter 4
Data trafficGigabitEthernet0/2GigabitEthernet0-2Network adapter 5
Data trafficGigabitEthernet0/3GigabitEthernet0-3Network adapter 6
Data trafficGigabitEthernet0/4GigabitEthernet0-4Network adapter 7
Data trafficGigabitEthernet0/5GigabitEthernet0-5Network adapter 8
Data trafficGigabitEthernet0/6GigabitEthernet0-6Network adapter 9
Data trafficGigabitEthernet0/7GigabitEthernet0-7Network adapter 10
Cabling for ISA 3000

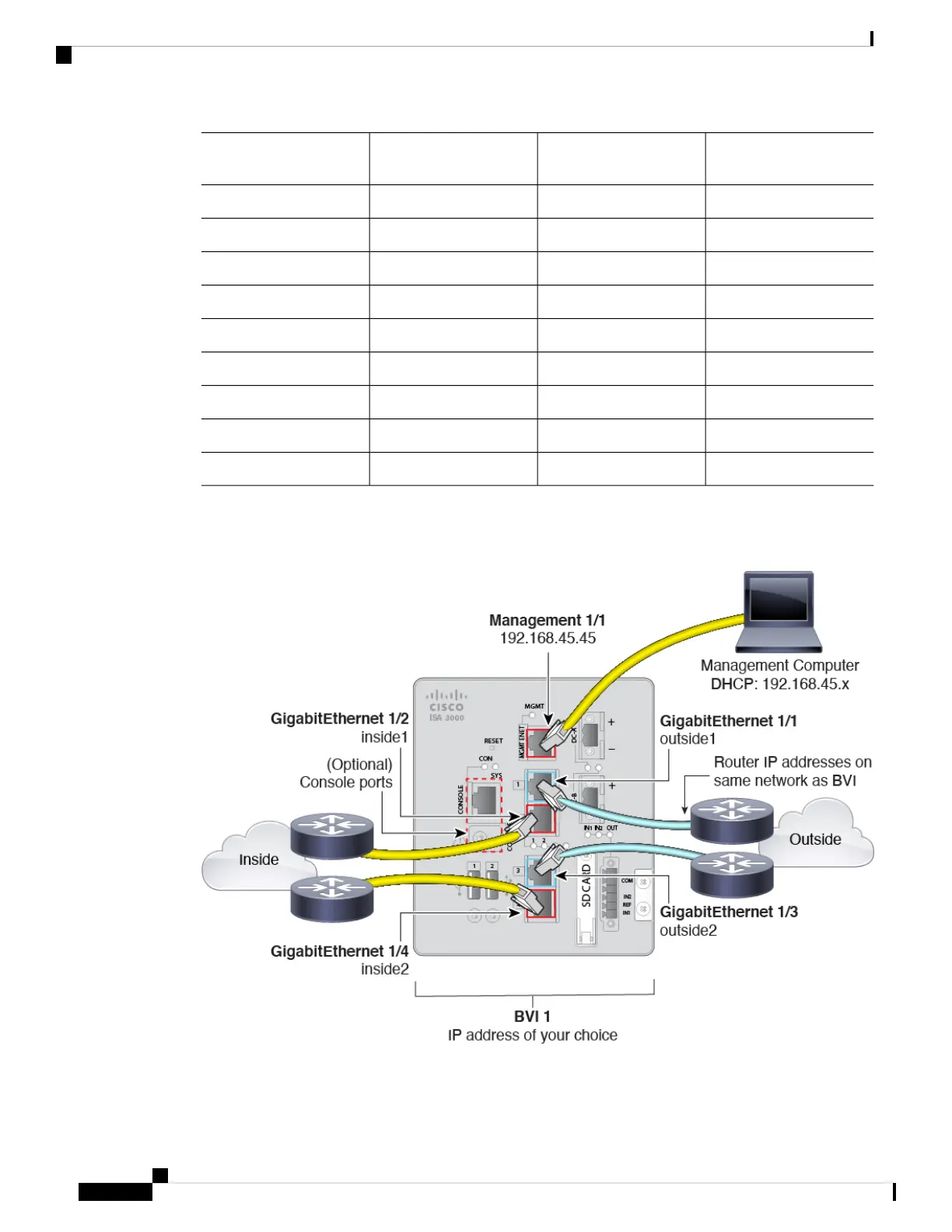

Figure 5: ISA 3000
• Connect GigabitEthernet 1/1 to an outside router, and GigabitEthernet 1/2 to an inside router.
