Cisco Firepower 4100 Series - 1-Gb Network Module with Hardware Bypass

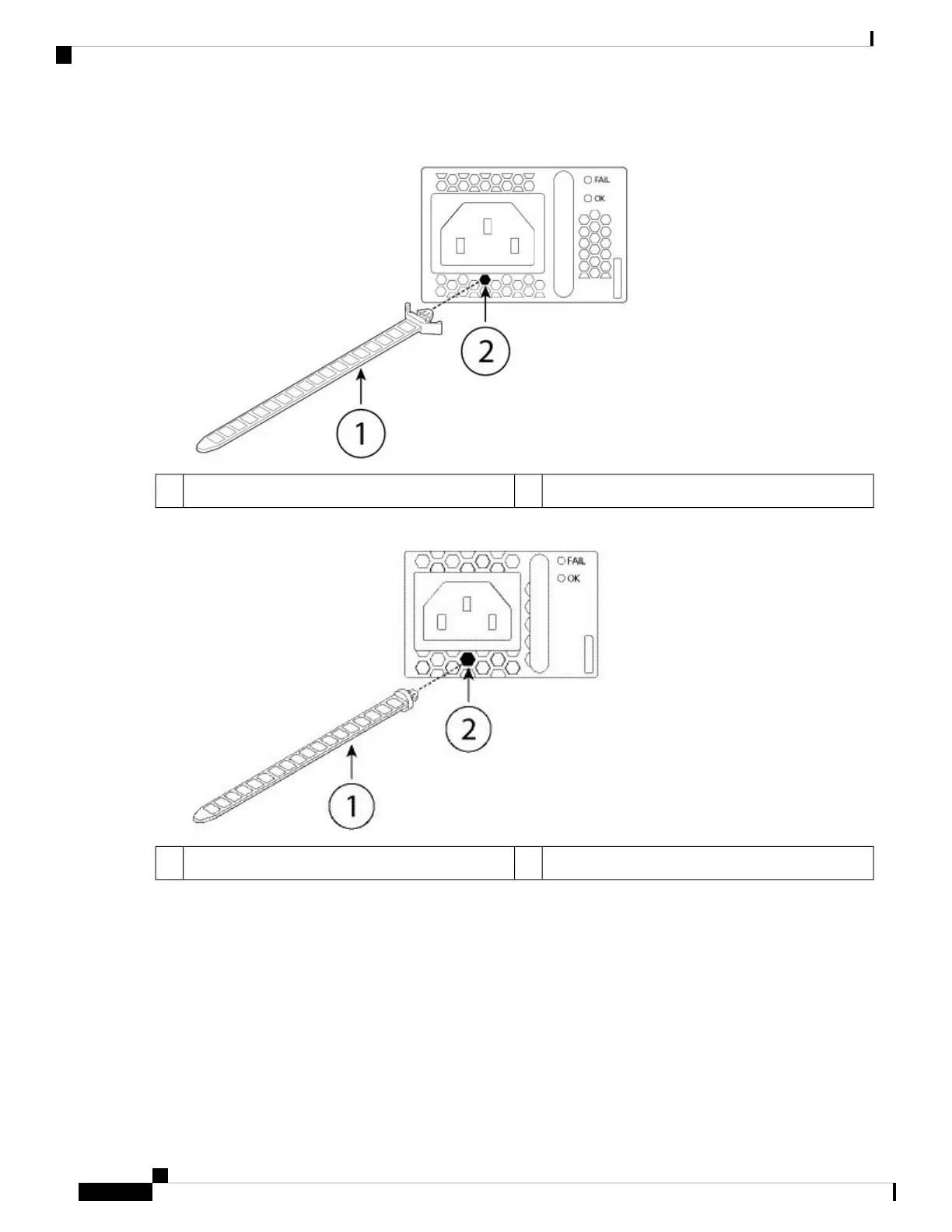

Figure 12: Flextronics Power Supply Module
Hexagonal hole2Flextronics tie wrap1
Figure 13: Artesyn Power Supply Module
Hexagonal hole2Artesyn tie wrap1
Step 3 Secure the clamp:
a) Plug in the power supply power cord and wrap the clamp around the over mold portion of the power cord.
b) Squeeze the clamp ends together to the power supply so that the annular teeth engage with the mate on the clamp.
c) Make sure the clamp fits snugly into the over mold.
d) Adjust the clamp position on the tie wrap so that the clamp is tight against the front of the over mold and the power
cord cannot be removed by lightly pulling on it.
Maintenance and Upgrade
18
Maintenance and Upgrade
Secure the Power Cord on the AC Power Supply Module
