• USB drive formatted with FAT32
• Boot kick-start image from the Supervisor ROMMON for discovery recovery purposes
• Copy files to and from workspace:/ and volatile:/ within local-mgmt. The most relevant files are:
• Core files
• Ethanalyzer packet captures
• Tech-support files
• Security module log files
• Platform bundle image upload using download image usbA:
The USB Type A port does not support Cisco Secure Package (CSP) image upload.
Network Ports
The Firepower 4100 chassis has eight fixed ports that require 1-Gb/10-Gb SFP/SFP+ transceivers (fiber
or copper). They are numbered from left to right starting with 1 and are named Ethernet 1/1 through
Ethernet 1/8. The 4100 also has two network module slots that support different numbers of ports
depending on the network module. See Network Modules, on page 11 for the supported network modules.
See for Supported SFP/SFP+ and QSFP Transceivers, on page 26 the list of supported transceivers.
Each port has LEDs that represent link/activity status.
Management Port
The Firepower 4100 chassis has a management port that requires a 1-Gb fiber or copper SFP.
Front Panel LEDs

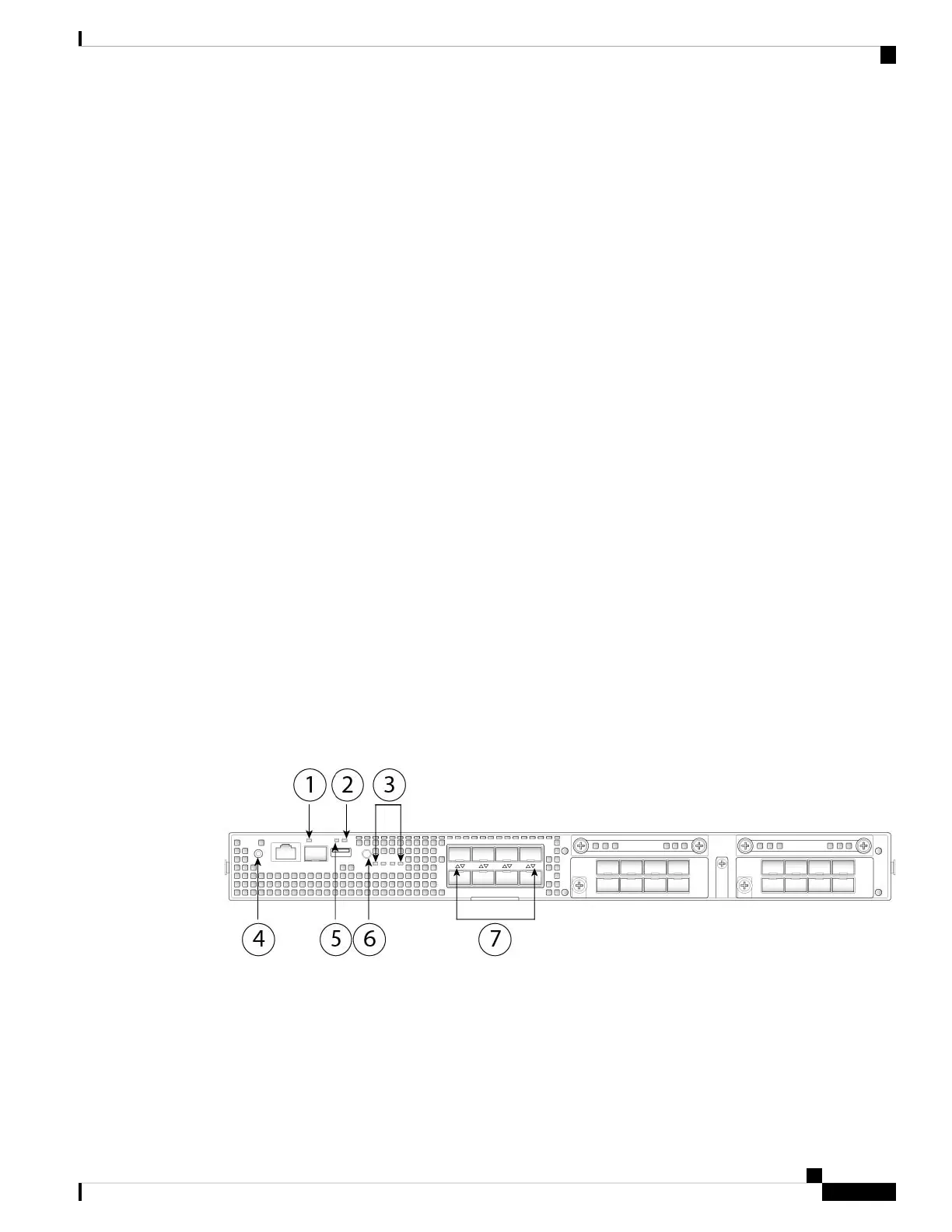

The following figure and table describe the Firepower 4100 front panel LEDs.
Figure 6: Front Panel LEDs
Overview
9
Overview
Front Panel LEDs
