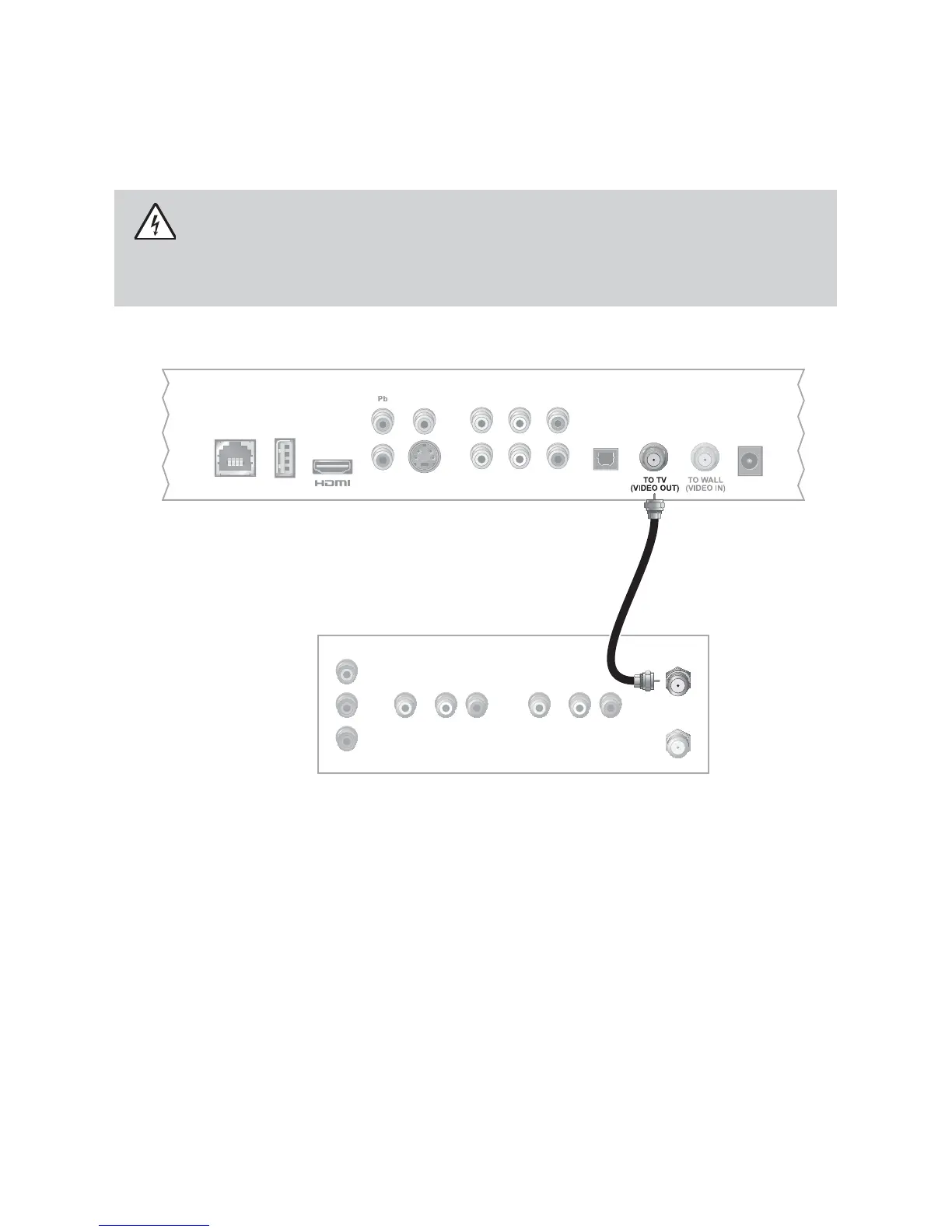

Connecting to an SDTV with a Coaxial Cable
Cable Used in this Confi guration
• 1 Coaxial Cable
Note: You must set the channel on your TV to the channel designated by your service provider
(usually channel 3). Contact your service provider for the channel information.
Receiver
T12407
Y
P
r
V
IDEO
OU
T
AUDIO
OU
T
NETWORK
U
SB
OPTICAL
P
OWER
S-VIDEO
L
R
CABLE OUT/
ANT OUT
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
Back of SDTV
CABLE IN/
ANT IN
Coaxial
Cable
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
