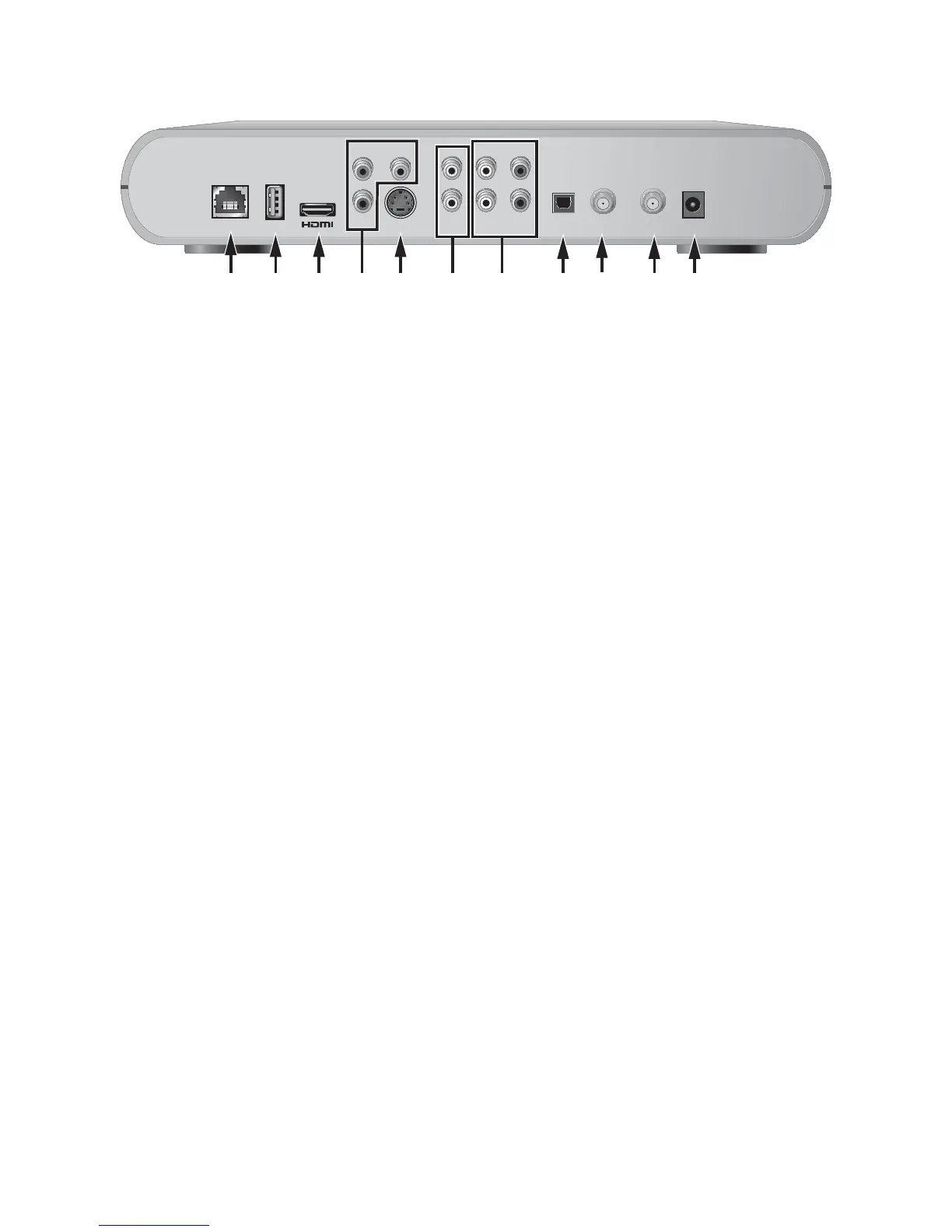

Back Panel
1 Network Connect to the Ethernet (CAT-5) network at your home, if applicable
2 USB Port USB connector. (Reserved for future use)
3 HDMI Connect an HDTV HDMI
™
(High-Defi nition Multimedia Interface) cable
from the HDTV to the HDMI port. HDMI supports both digital audio and
video. See page 12 for more information
4 YPbPr Connect the receiver to the component video input (YPbPr) on the
HDTV. See pages 12 and 13 for more information
5 S-Video Connect an S-Video cable to send an S-Video signal to your TV, VCR, or
DVD recorder. This signal is standard-defi nition but higher quality than
other standard-defi nition TV connections. See page 13 for more
information
6 Video Out Connect to composite input on your HDTV or SDTV
Note: Two video output connectors are provided. Typically, one output
is connected to the TV, and the other output is used to connect to a
home theater system, DVD recorder, or VCR
7 Audio Out (L/R) Connect RCA-type cables to Audio Out to send analog audio signals
(left and right) to a TV with stereo inputs or to a stereo amplifi er
Note: Two sets of audio out connectors are provided. Typically, one set
of outputs is connected to the TV, and the other set is used to connect
to a home theater system, DVD recorder, or VCR
8 Optical Connect an optical cable to send a digital audio signal to a surround-
sound receiver or other digital audio device
9 To TV (Video Out) Connect to TV. You must set the channel on your TV to the channel
designated by your service provider (usually channel 3). Contact your
service provider for the channel information
10 To Wall (Video In) Connect the receiver to in-house coaxial wiring, if applicable
11 Power Connect the DC output of the AC power adapter (provided) to deliver
power to the receiver
Note: This illustration may vary from the actual product.
T12401
Pb Y
Pr
VIDEO
OUT
AUDIO
OUT
NETWORK USB
OPTICAL
POWER
S-VIDEO
LR
TO WALL
(VIDEO IN)
TO TV
(VIDEO OUT)
1 2 3 5 8 10
9
114 76
