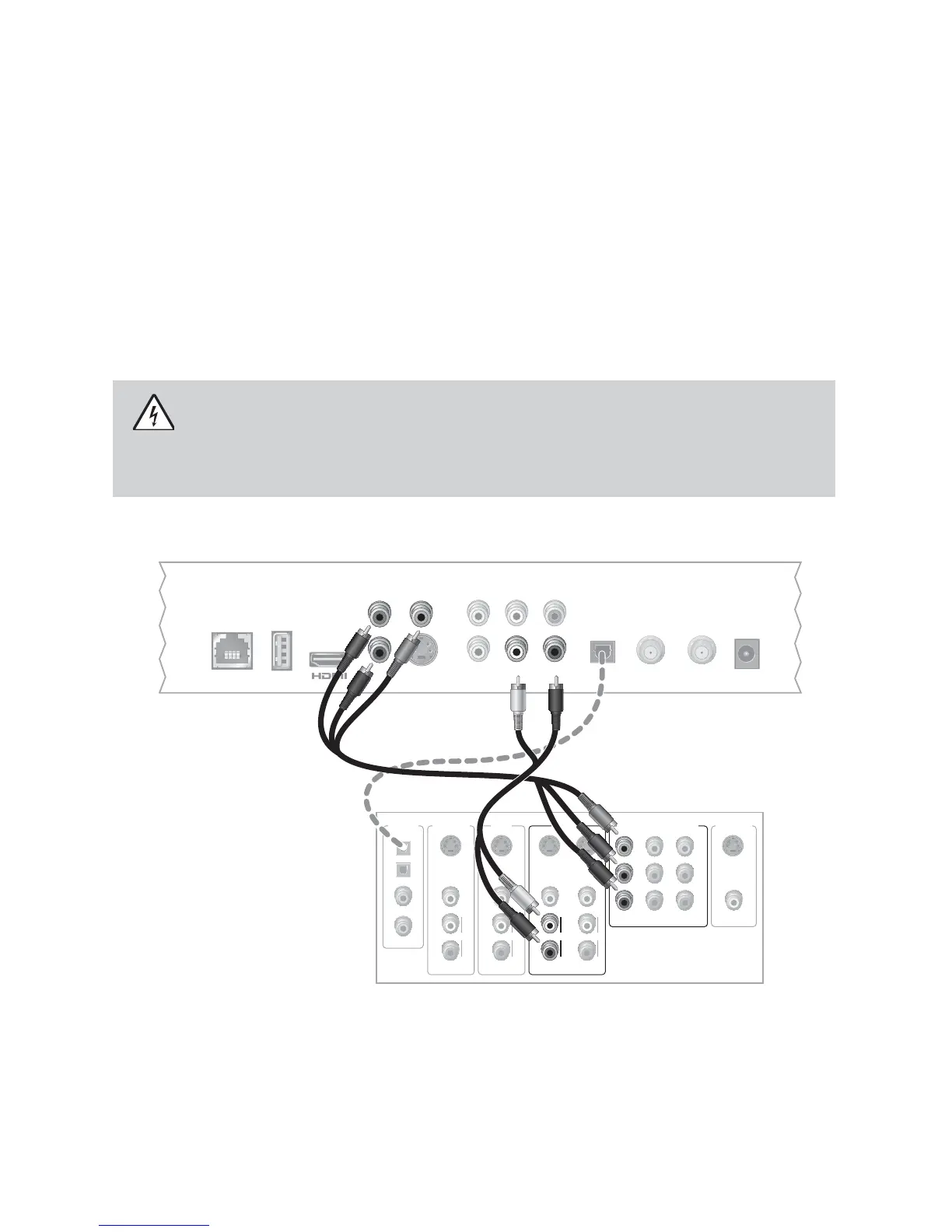

Connecting to a Home Theater System
with Component (YPbPr) Connectors
Cables Used in this Confi guration
• 1 Component Video Cable (YPbPr)
• 1 Audio Left/Right Cable (You can also use an optical cable [indicated by the dotted line] instead
of the Audio Left/Right Cable as shown in the diagram.)
Notes:
• This connection requires that audio is provided by the home theater system.
• Consult the user guide that came with your home theater system for information on connecting your
other video and audio devices.
Contact AT&T ConnecTech
®
service to learn about affordable fl at-rate home theater installation services.
Call (800) 344-1734 to speak with an AT&T ConnecTech Representative. (Not available in all areas; See
offers and terms & conditions at www.att.com/ConnecTech).
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
