Connecting to a Stereo VCR or DVD Recorder (optional)

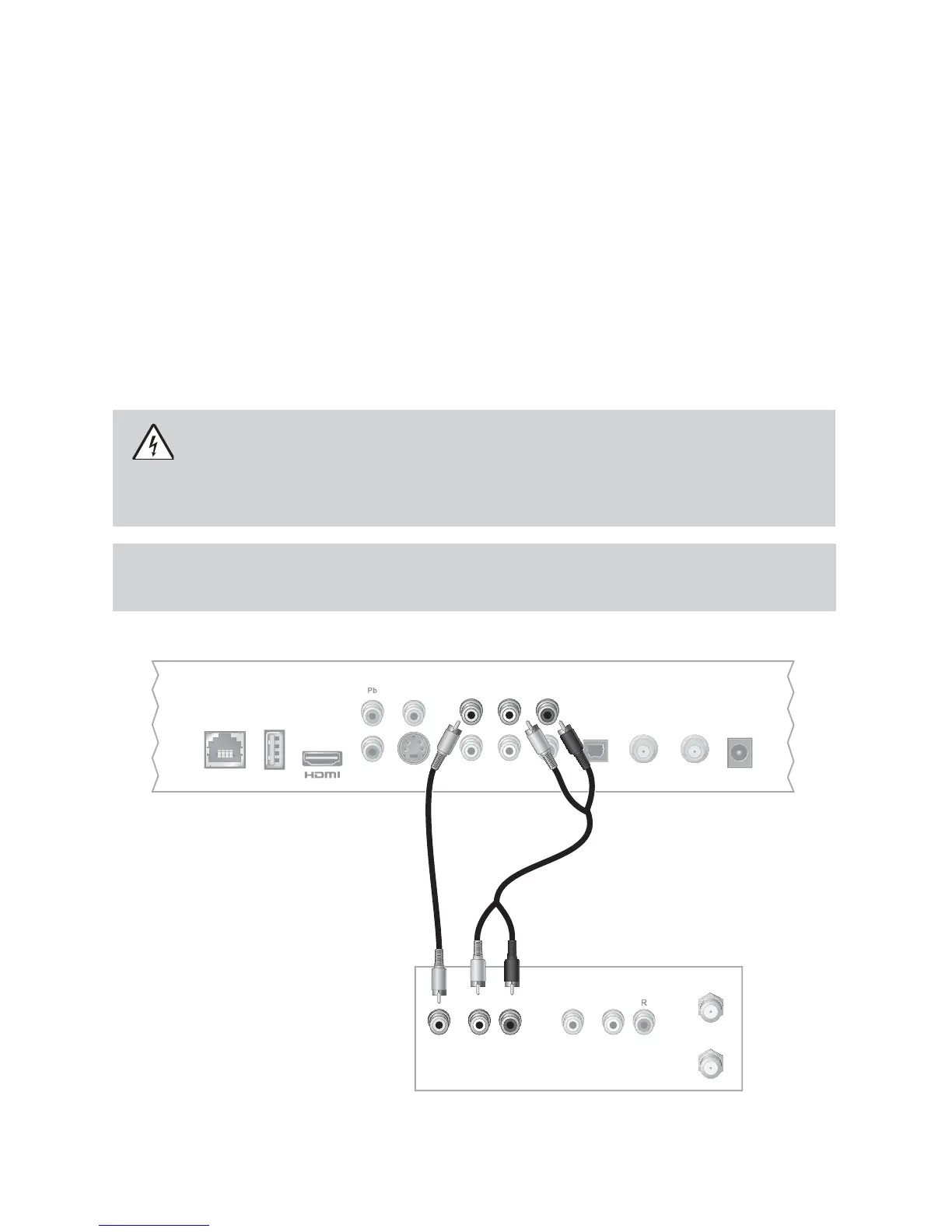

The diagram below shows how to connect a recording device to your receiver. Although it is possible
to watch TV using a connection through your VCR or DVD recorder to the TV, this connection may not
provide the best picture, and HDTV users are restricted to an SD format. In addition, some content
is copy protected and passing this content through the recording device may result in a picture that
cannot be viewed.
For these reasons, the connection shown is best used to provide only video and audio to your recording
device and not for normal TV viewing. The connection from the recording device to the TV (only used
for playback of recorded material) depends on the type of device being used, the outputs that are
supported, and the inputs that remain available for use on your TV.
Consult the owner’s manuals provided with your TV and recording device for more details on
connection options.
Cables Used in this Confi guration
• 1 RCA-type Video Cable
• 1 Audio Left/Right Cable
Connecting your TV directly to the Audio/Video output of your receiver will
assure a more vivid picture and enhance your viewing enjoyment.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
