Connecting to the In-Home Network

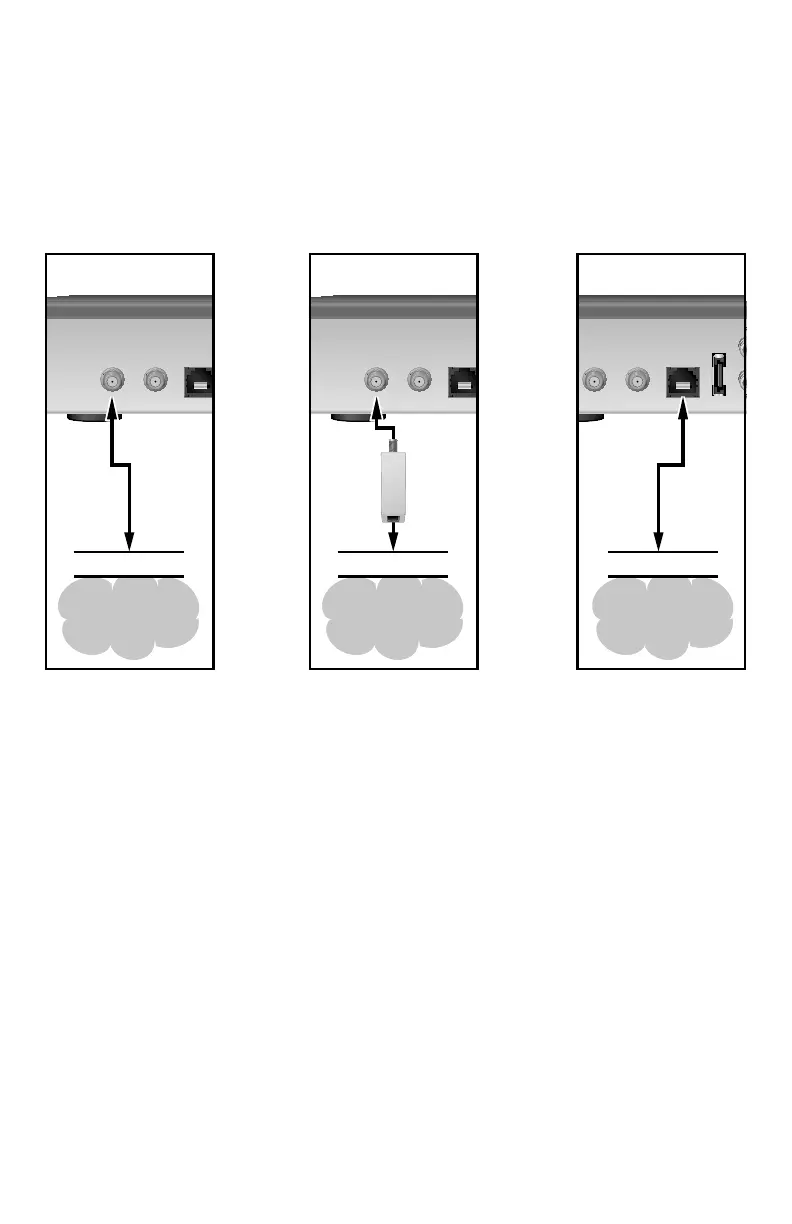

The following diagrams illustrate examples of the connections you can use to connect your set-
top to your in-home network. Contact your service provider for the recommended connection
method for your home. (This section does not apply to the ISB7005; see Connection for ISB7005
Wireless Set-Top on page 12.)
Notes:
• The in-home coaxial and phoneline wiring networks use HomePNA 3.1 technology.
• The illustrations below may vary from the actual product.
P
P
TO WALL
(VIDEO IN)
TO TV
(VIDEO OUT)
NETWORK eSATA
TO WALL
(VIDEO IN)
TO TV
(VIDEO OUT)
NETWOR
K
TO WALL
(VIDEO IN)
TO TV
(VIDEO OUT)
NETWOR
K
T14257
Coaxial
In-Home
Coaxial
Network
Wall
Phoneline
OR
Wall
Adapter
CAT-5
OR
In-Home
Phoneline
Network
In-Home
CAT-5
Network
Wall
