2-4
User Guide for Cisco LCD Professional Series Displays
OL-17986-01
Chapter 2 The Basics
Getting to Know Your Cisco LCD Professional Series Display
About Terminals on the Back of Your Display

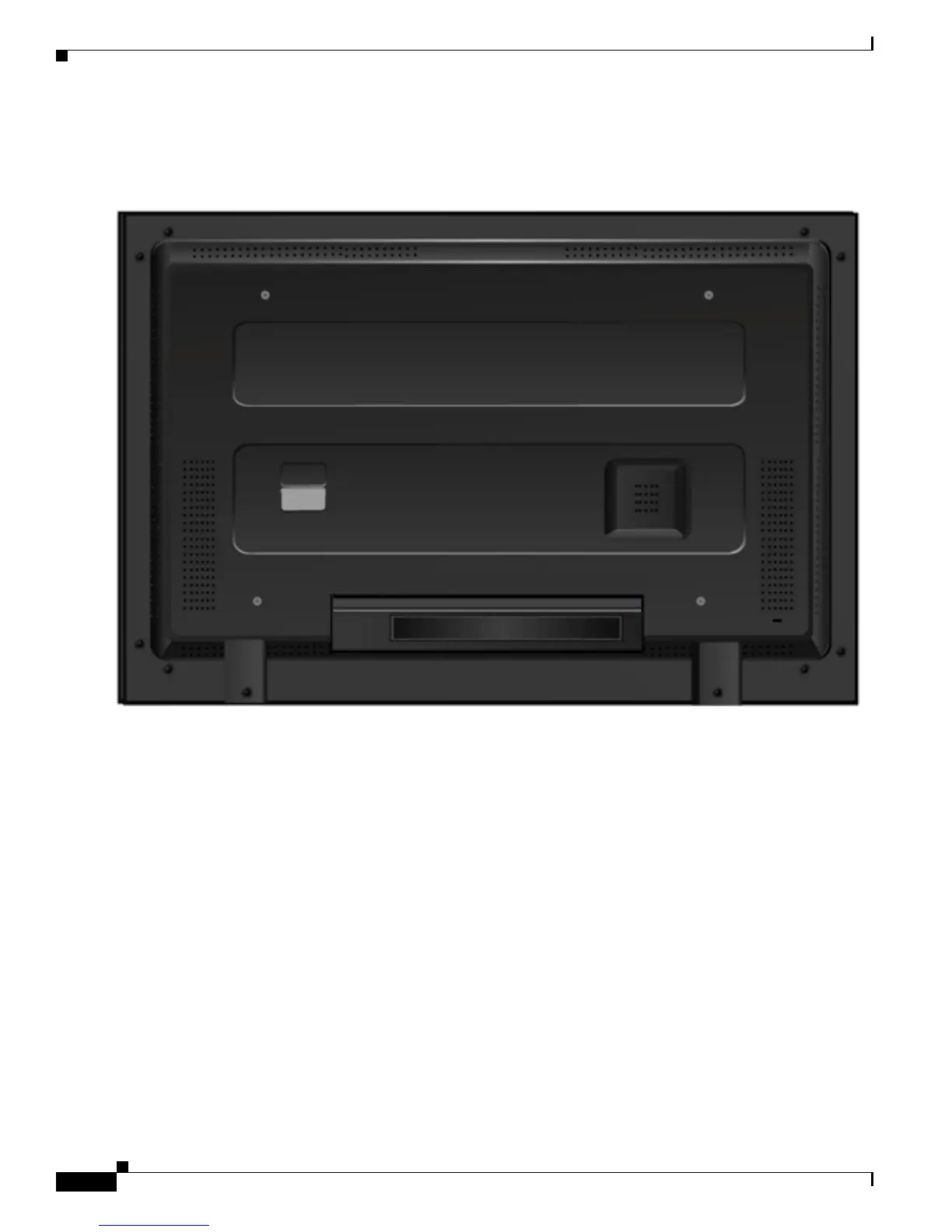

Figure 2-2 Back—All Display Sizes
A recessed area on the back of your display partially hides the power switch, the Kensington slot, the
electrical socket, and the terminals where you connect signal cables. A large white sticker clearly
identifies each available feature in this area. Feature availability varies among different display models
but your display is likely to have at least these:
Power Switch Turns your display on and off.
Power In The power cord plugs into the LCD display and the wall plug.
RS232C Out/In RS232C serial port.
DVI/HDMI In DVI/HDMI audio input terminal.
DVI/HDMI In Use an HDMI cable to connect this HDMI input terminal to the HDMI output
terminal on another device.
A/V In [VIDEO] video connection terminal Use a video cable to connect this input terminal to
the video output terminal on another device.
A/V Audio In Audio input terminal.
A/V Audio Out Audio output terminal.
RGB Out.
