Cisco Linksys RE1000 Getting Started

12
Getting Started
RE1000 Range Extender

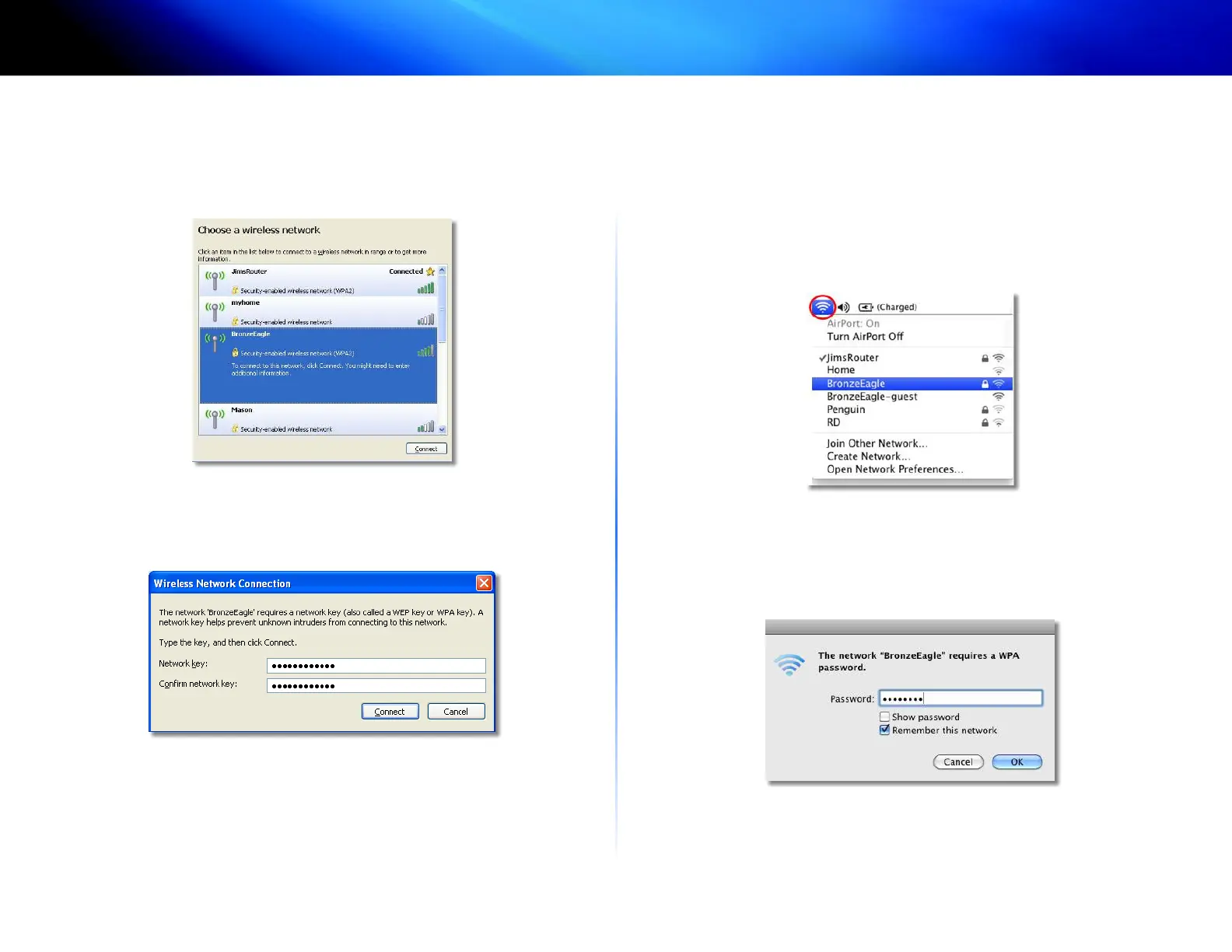

3. Click your own network name, then click Connect. In the example
below, the computer was connected to another wireless network named
JimsRouter. The name of the correct network, BronzeEagle in this example,
is shown selected.
4. If you are prompted to enter a network key, type your password (Security
Key) into the Network key and Confirm network key fields, then click
Connect.
Your computer connects to the network, and you should now be able to
access the range extender’s browser-based utility.
To fix the problem on Mac computers:
1. In the menu bar across the top of the screen, click the AirPort icon. A list
of wireless networks appears. Cisco Connect has automatically assigned
your network a name.
In the example below, the computer was connected to another wireless
network named JimsRouter. The name of the Linksys E-Series network,
BronzeEagle in this example, is shown selected.
2. Click the wireless network name of the router your range extender is
connected to.
3. Type your wireless network password (Security Key) into the Password
field, then click OK.
Your computer connects to the network, and you should now be able to
access the range extender’s browser-based utility.

Cisco Linksys RE1000 Specifications

General

Wireless Standard	802.11n
Wireless Speed	Up to 300 Mbps
Frequency Band	2.4 GHz
Ethernet Ports	1 x 10/100 Mbps
Security Features	WEP, WPA, WPA2
Antennas	2 internal
Operating Humidity	10% to 85% Non-condensing
Storage Humidity	5% to 90% Non-condensing
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
