Cisco Linksys RV042 User Manual

4 Instruction # 42-IS-0160, Rev A1

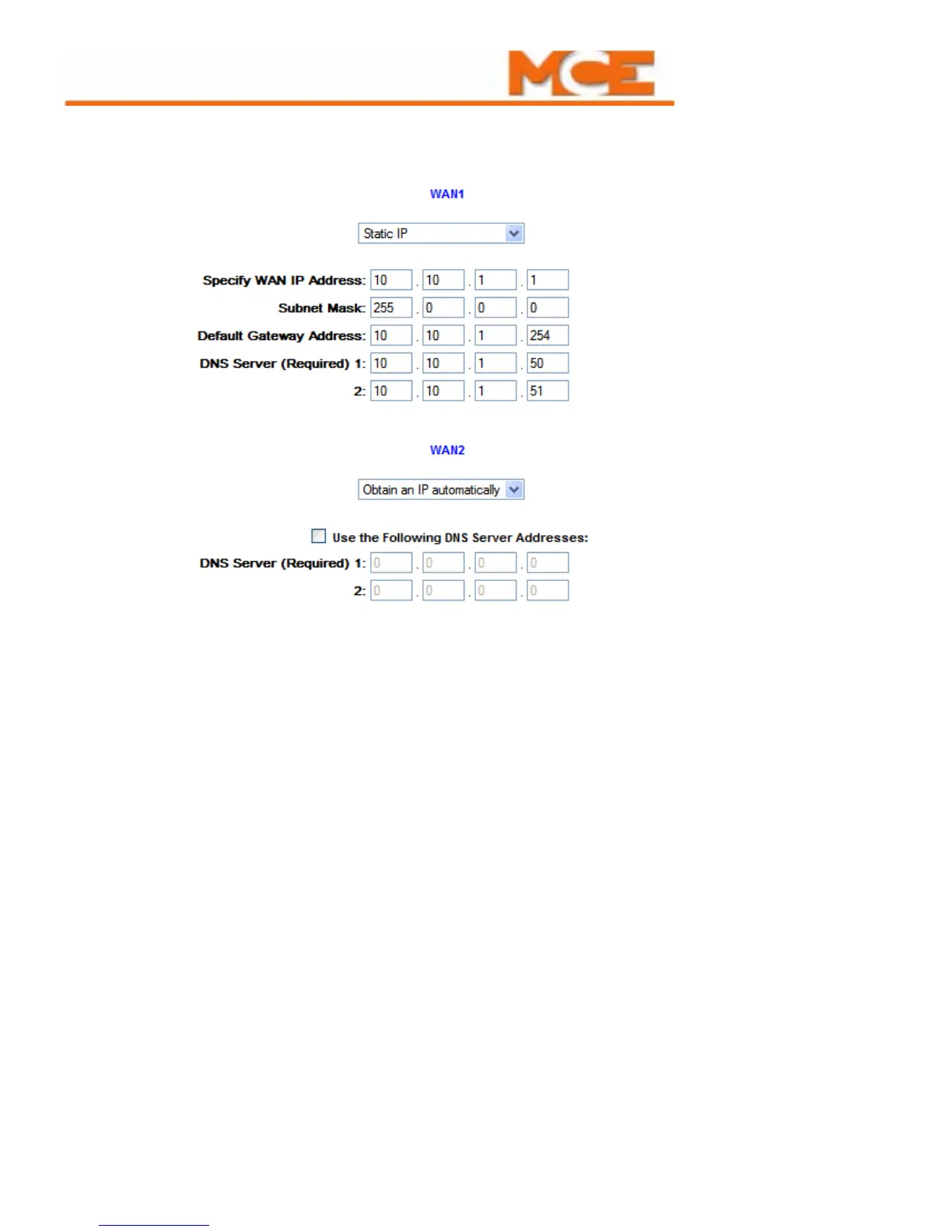

16. Fill-in the IP address, subnet mask, default gateway address and DNS server
address(es).
17. Click Save settings on the bottom of the screen.
18. Power cycle the DSL/Cable modem. Typically this can be accomplished by unplugging
the unit and waiting until the lights turn off, then plugging it back in.
19. Using the information you wrote down earlier, switch your PC IP address
settings back to the previous configuration.
20. In Internet Explorer, enter the new IP address for the VPN router into the address bar.
The MCE default is 192.168.191.254. Log back into the router using username admin
for the username and password.

Cisco Linksys RV042 Specifications

General

WAN Ports	2
LAN Ports	4
VPN Tunnels	50
Form Factor	Desktop
Firewall	Yes
VPN Support	Yes
VPN Protocols	IPSec, PPTP
Firewall Type	SPI
Authentication	MD5, SHA1
QoS	Yes
Throughput	100 Mbps
Encryption	DES, 3DES, AES
Weight	0.5 kg
