Chapter 4: Connecting the Wireless-G Broadband Router with SRX400
Placement Options
Wireless-G Broadband Router with SRX400
Placement Options
There are three ways to place the Router. The first way is to place it horizontally on a surface, so it sits on its four
rubber feet. The second way is to stand the Router vertically on a surface (this uses a stand). The third way is to
mount it on a wall. The second and third options are explained in further detail below.
Stand Option
1. Line up the center of the Router’s stand with the center of the Router’s labeled edge.
2. Insert the Router into the stand.
Proceed to “Chapter 5: Configuring the Wireless-G Broadband Router.”
There are three ways to place the Router. The first way is to place it horizontally on a surface, so it sits on its four
rubber feet. The second way is to stand the Router vertically on a surface (this uses an optional stand). The third
way is to mount it on a wall. The second and third options are explained in further detail below.
Wall-Mount Option
The Router has two wall-mount slots on its back panel.
1. Determine where you want to mount the Router.
2. Drill two holes into the wall. Make sure the holes are 60 mm (2.36 inches) apart.
3. Insert a screw into each hole, and leave 5 mm (0.2 inches) of its head exposed.
4. Maneuver the Router so the wall-mount slots line up with the two screws.
5. Place the wall-mount slots over the screws and slide the Router down until the screws fit snugly into the wall-
mount slots.
Proceed to “Chapter 5: Configuring the Wireless-G Broadband Router.”

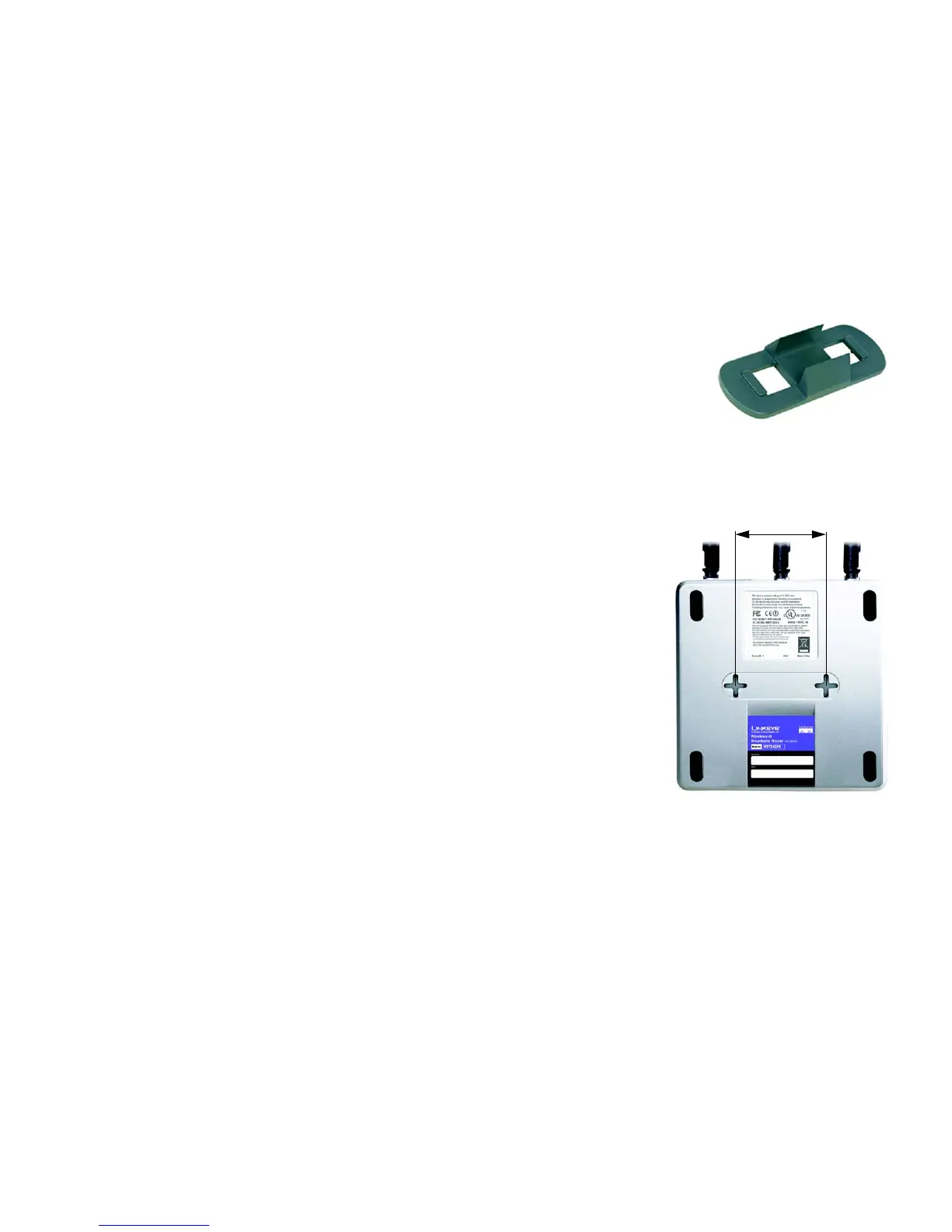

Figure 4-4: Router’s Stand
Figure 4-5: Wall-Mount Measurements
60 mm
(2.36 inches)
